NZM 27613 KH (7800023) - Snapper 61" Zero-Turn Mower, 27hp Kohler HYDRO RESERVOIR ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

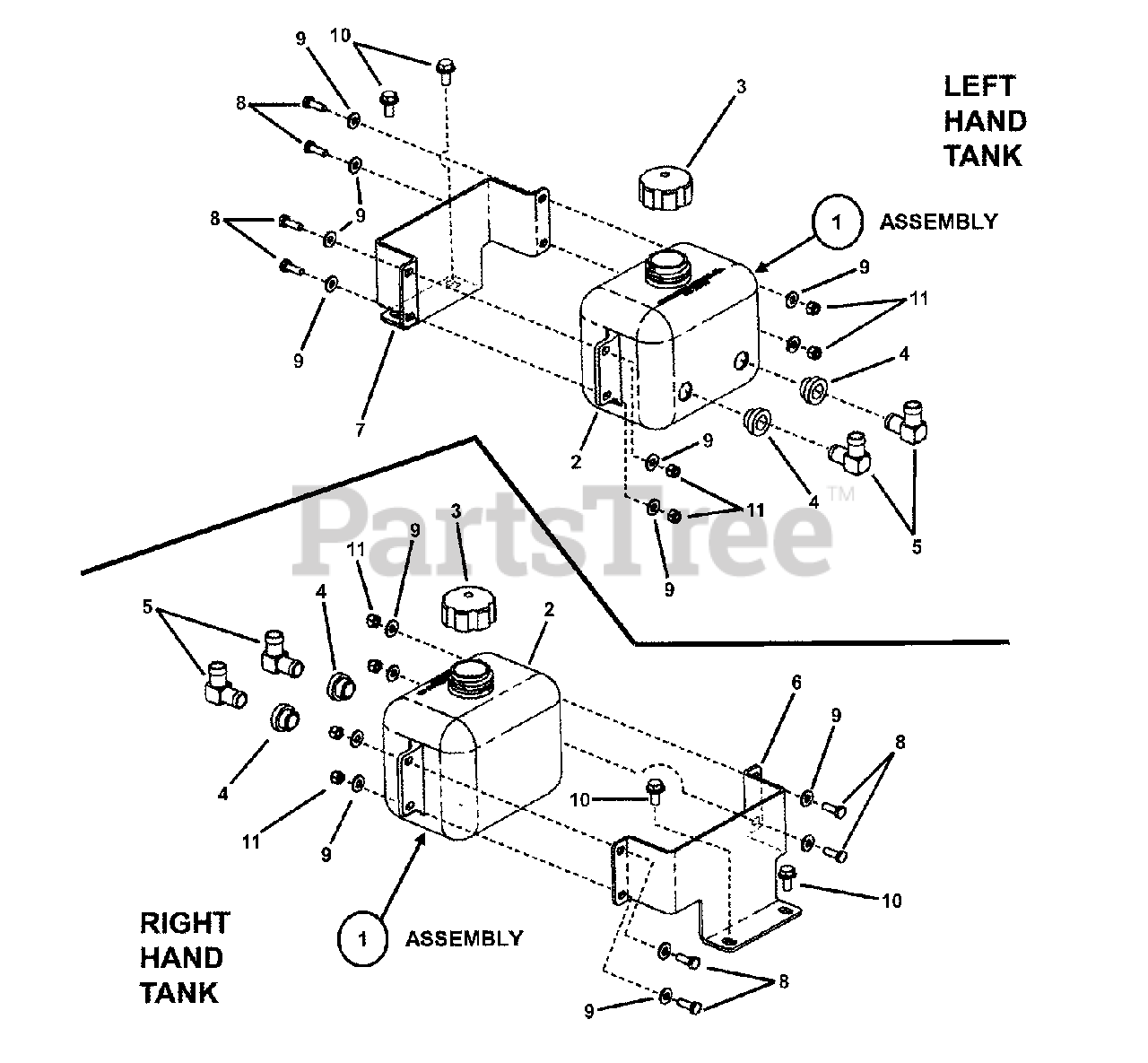

HYDRO RESERVOIR ASSEMBLY Parts Diagram

  • Title

1

Snapper 7059088

ASSY, Hydraulic Tank (Includes 4 items shown below)
(Superseded to 7059088YP)

$

$

Not available

2

Snapper 7074002

TANK, Hydraulic, NZM

Note: per 7059088, Tank Assembly

$

$

Currently unavailable

3

Snapper 7075289

CAP, Vented (Kelch # H4550D)

Note: per 7059088, Tank Assembly

$

$

Not available

4

Snapper 7075687

GROMMET (Dapco # 12078)
(Superseded to 7075687YP)

Note: per 7059088, Tank Assembly

$7.49

$

In Stock, only 1 left!

0

5

Snapper 7073238

ELBOW FITTING (Dapco # 12183)
(Superseded to 7073238YP)

Note: per 7059088, Tank Assembly

$25.99

$

Usually ships in 2-12 days

0

6

Snapper 7073999

BRACKET, R.H. Hydro Tank Mount
(Superseded to 7073999YP)

$52.99

$

Usually ships in 2-12 days

0

7

Snapper 7074001

BRACKET, L.H. Hydro Tank Mount
(Superseded to 7074001YP)

$52.99

$

Usually ships in 2-12 days

0

8

Snapper 7090548

SCREW, 1/4-20 x 1" Hex Head Cap GR 5
(Superseded to 703820)

$3.99

$

In Stock, only 4 left!

0

9

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

11

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7012080

CABLE TIE, 7" Long (not shown)
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0
