NZM 27613 KH (7800023) - Snapper 61" Zero-Turn Mower, 27hp Kohler 61" CUTTING DECK ASSEMBLY (Final Assy) Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

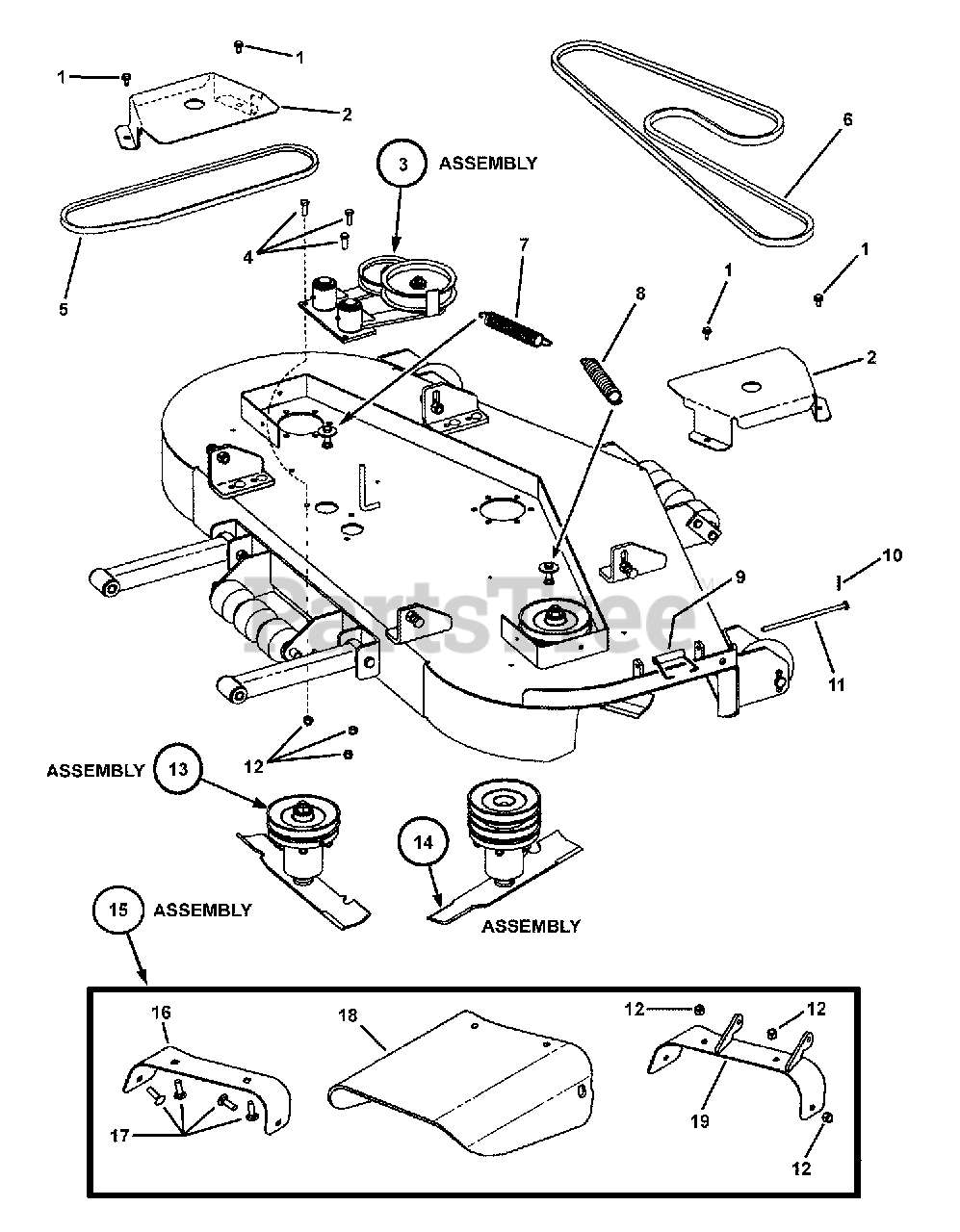

61" CUTTING DECK ASSEMBLY (Final Assy) Parts Diagram

  • Title

1

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

2

Snapper 7075384

BELT COVER, 61" Deck
(Superseded to 7075384YP)

$143.99

$

In Stock, only 1 left!

0

3

ASSEMBLY, Idler (see breakdown on Idler Assy page)

ASSEMBLY, Idler (see breakdown on Idler Assy page)

$

$

Not available

4

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

5

Snapper 7071766

*BELT, Primary (HB Section, 94.2" effective length)
(Superseded to 7071766YP)

$51.99

$

In Stock, only 1 left!

0

6

Snapper 7029268

*V-BELT, Secondary- 61" (HB Section, 127.0" effective length)
(Superseded to 7029268YP)

$92.99

$

In Stock, only 1 left!

0

7

Snapper 7029278

SPRING, Idler (1.17" O.D. x 7.5" long)
(Superseded to 7029278YP)

$14.99

$

In Stock, Qty 8

0

8

Snapper 7072915

SPRING, Idler Primary (1.25" O.D. x 10" long)
(Superseded to 7072915YP)

$19.99

$

In Stock, Qty 6

0

9

Snapper 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

10

Snapper 7091313

PIN, 3/32 x 1" Cotter
(Superseded to 704058)

$3.49

$

In Stock, only 1 left!

0

11

Snapper 7029277

PIN, Chute Hinge
(Superseded to 7029277YP)

$40.99

$

In Stock, only 2 left!

0

12

Snapper 5025096

NUT, 3/8-16 Hex Nyloc
(Superseded to 5025096SM)

Note: or 7091299

$3.49

$

In Stock, Qty 20+

0

13

ASSEMBLY, Spindle (see breakdown on Deck Spindle Assy page)

ASSEMBLY, Spindle (see breakdown on Deck Spindle Assy page)

$

$

Not available

14

ASSEMBLY, Center Spindle (see breakdown on Deck Spindle Assy page)

ASSEMBLY, Center Spindle (see breakdown on Deck Spindle Assy page)

$

$

Not available

15

ASSEMBLY, Discharge Chute, 61" Deck

ASSEMBLY, Discharge Chute, 61" Deck

Note: incl. items 12, 16, 17, 18 & 19

$

$

Not available

16

Snapper 7300034

DEFLECTOR BOTTOM (61" Deck)
(Superseded to 7300034YP)

$66.99

$

Usually ships in 2-12 days

0

17

Snapper 7091790

BOLT, 3/8-16 x 1-1/4" Square Neck Carriage, GR 5
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

18

Snapper 7100622

CHUTE, Rubber (61" Deck)
(Superseded to 7100622YP)

$204.99

$

Usually ships in 2-12 days

0

19

Snapper 7400007

WELDMENT, 61" Discharge Chute
(Superseded to 7400007YP)

$116.99

$

Usually ships in 2-12 days

0
