NZM 27612 KH (85676) - Snapper 61" Zero-Turn Mower, 27hp Kohler REAR FRAME & TANK BRACKETS Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

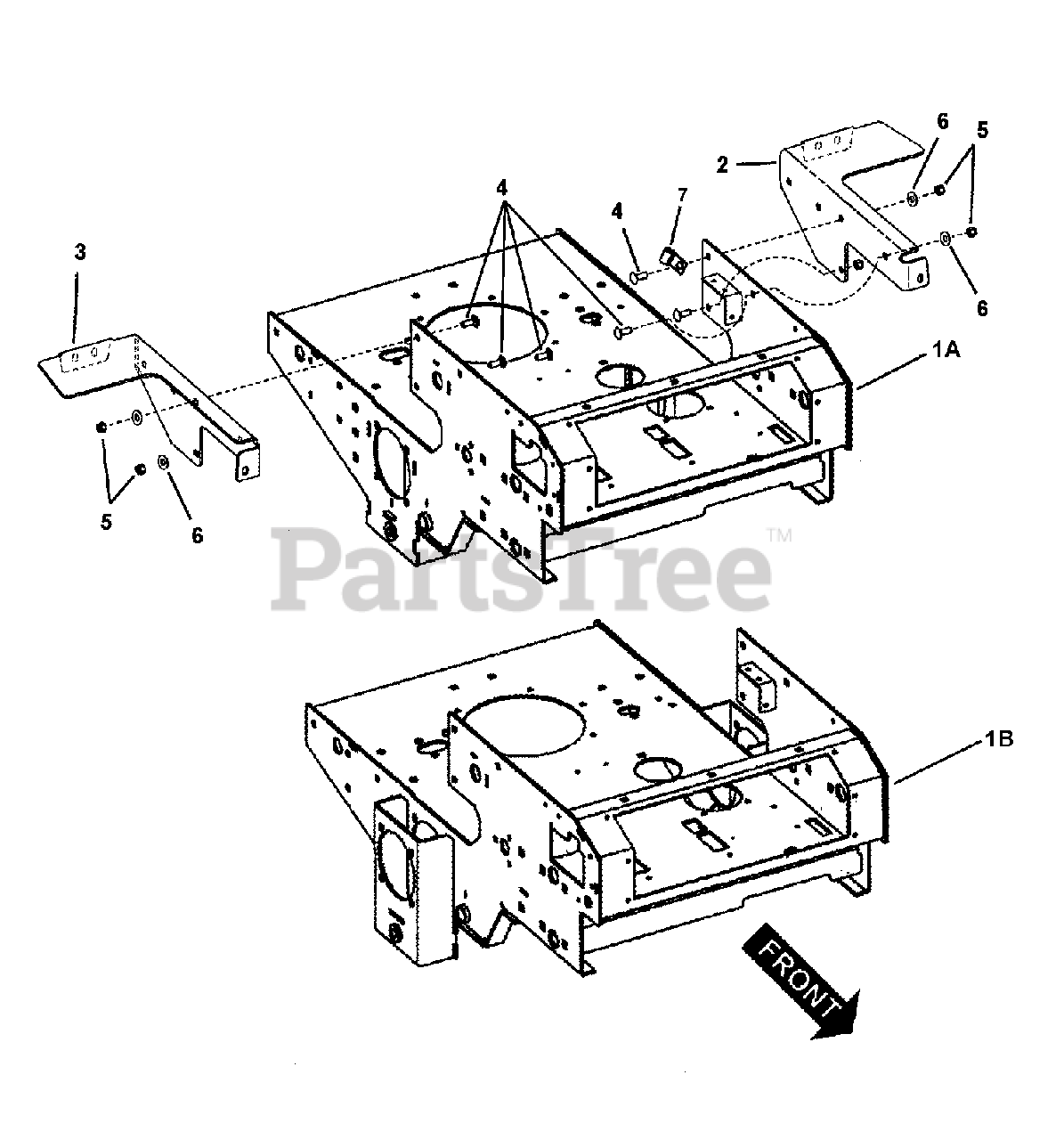

REAR FRAME & TANK BRACKETS Parts Diagram

  • Title
1A

Snapper 7044846

WELDMENT, Rear Frame
(Superseded to 7044846YP)

Note: used on 48" & 52" Deck Models

$712.99

$

Usually ships in 2-12 days

0

1B

Snapper 7044816

WELDMENT, Rear Frame
(Superseded to 7044816YP)

Note: used on Series 61" Deck Models

$968.99

$

Usually ships in 2-12 days

0

2

Snapper 7053476

WELDMENT, L.H. Tank Bracket
(Superseded to 7053476YP)

Note: also shown on Fuel Tank Assembly page

$125.99

$

Usually ships in 2-12 days

0

3

Snapper 7053518

WELDMENT, R.H. Tank Bracket
(Superseded to 7053518YP)

Note: also shown on Fuel Tank Assembly page

$153.99

$

Usually ships in 2-12 days

0

4

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

Note: also shown on Fuel Tank Assembly page

$4.49

$

In Stock, only 4 left!

0

5

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: also shown on Fuel Tank Assembly page

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7035638

CLIP, Open 3/8" Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0
