NZM 27612 KH (85676) - Snapper 61" Zero-Turn Mower, 27hp Kohler IDLER ASSEMBLIES (58885) Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

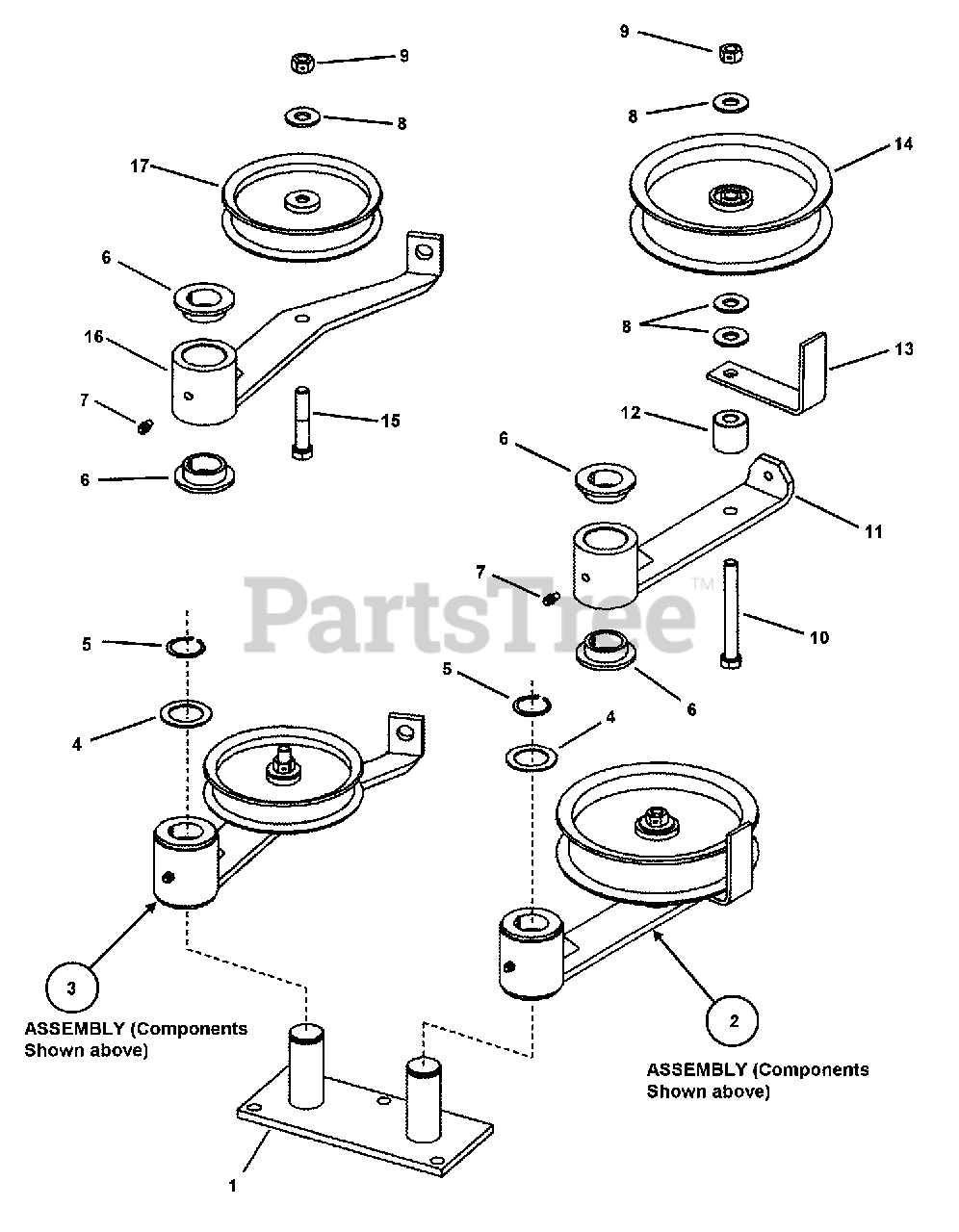

IDLER ASSEMBLIES (58885) Parts Diagram

  • Title

1

Snapper 7058147

WELDMENT, Idler Plate
(Superseded to 7058147YP)

$201.99

$

In Stock, only 1 left!

0

2

ASSEMBLY, Primary Idler

Note: Includes items 6 (2), 7, 8 (3), 9, 10, 11, 12, 13 & 14

$

$

Not available

3

ASSEMBLY, Secondary Idler

Note: Includes items 6 (2), 7, 8, 9, 15, 16 & 17

$

$

Not available

4

Snapper 7023747

BUSHING, 1" Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

6

Snapper 7074720

BUSHING, Idler PM
(Superseded to 7074720SM)

$8.49

$

In Stock, Qty 10

0

7

Snapper 7014669

FITTING, 3/16" Straight Lube
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR 5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

10

Snapper 7027220

SCREW, 3/8-16 x 3-1/4" Hex Head Cap, GR 5
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

11

Snapper 7058877

WELDMENT, Primary Idler Arm
(Superseded to 7058877YP)

$198.99

$

Usually ships in 2-12 days

0

12

Snapper 7035657

BUSHING - Idler
(Superseded to 7035657YP)

$53.99

$

Usually ships in 2-12 days

0

13

Snapper 7035656

RETAINER, Idler Belt
(Superseded to 7035656YP)

$19.99

$

Usually ships in 2-12 days

0

14

Snapper 7034422

PULLEY, Flat Idler
(Superseded to 7034422SM)

$38.99

$

In Stock, Qty 20+

0

15

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap GR 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

16

Snapper 7058329

WELDMENT, Secondary Idler Arm

$

$

Not available

17

Snapper 7029273

PULLEY, Idler
(Superseded to 7029273YP)

$

$

Not available
