NZM 27612 KH (85676) - Snapper 61" Zero-Turn Mower, 27hp Kohler FUEL TANK ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

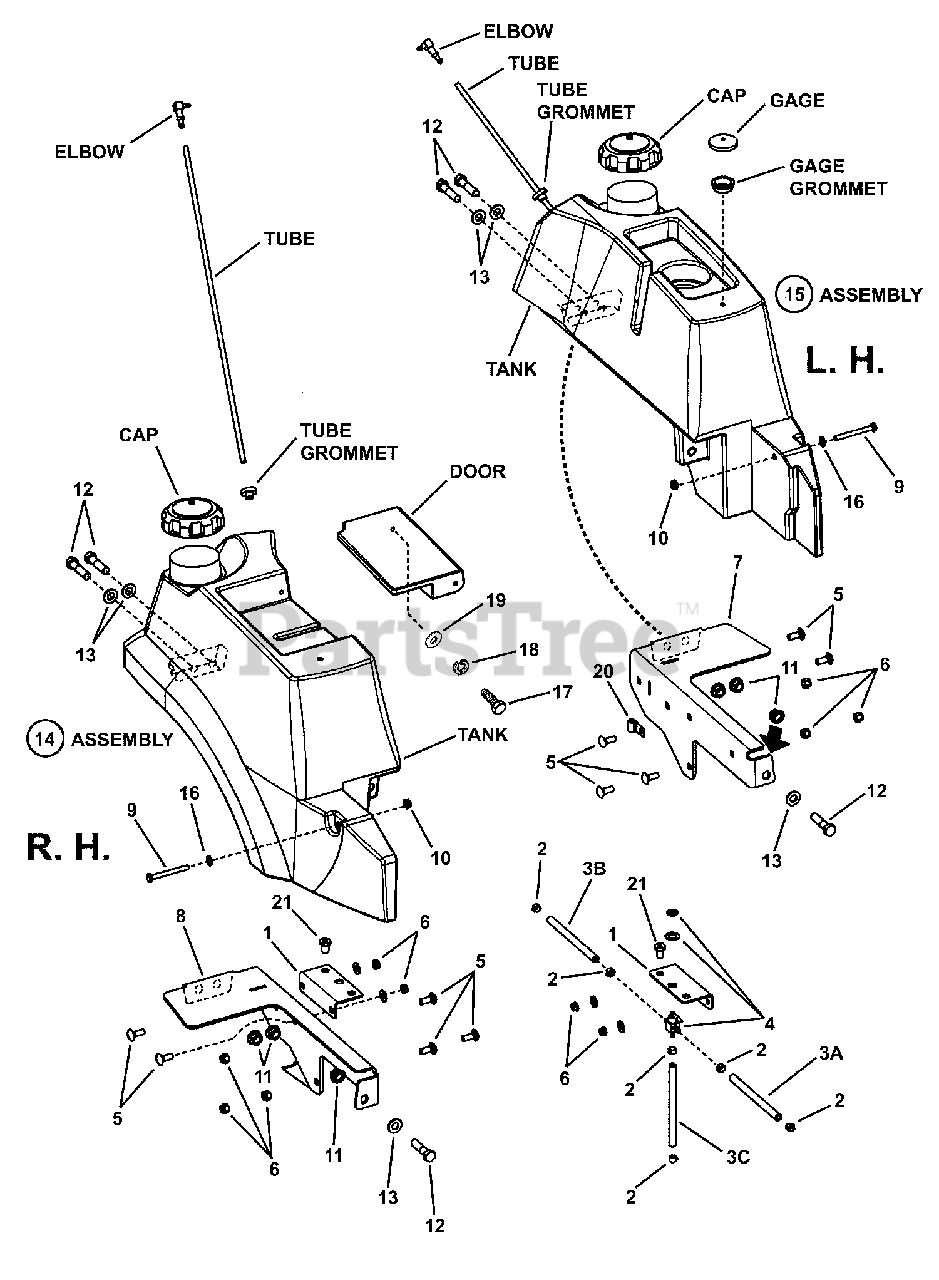

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Snapper 7074687

MOUNT, Auxiliary Fuel Valve
(Superseded to 7074687YP)

$13.99

$

Usually ships in 2-12 days

0

2

Snapper 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

3A

Snapper 7074688

HOSE, 1/4" I.D. x 3'-7.5" Long Fuel (R.H.)
(Superseded to 7074688YP)

$16.99

$

Usually ships in 2-12 days

0

3B

Snapper 7074689

HOSE, 1/4" I.D. x 1'-8" Long Fuel (L.H.)
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

3C

Snapper 7074690

HOSE, 1/4" I.D. x 1' Long Fuel
(Superseded to 7074690YP)

Note: Kawasaki engines only

$6.49

$

Usually ships in 2-12 days

0

4

Snapper 7044681

ASSEMBLY, 3-Way Fuel Valve
(Superseded to 7044681YP)

$50.99

$

In Stock, only 3 left!

0

5

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

6

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7053476

WELDMENT, L.H. Tank Bracket
(Superseded to 7053476YP)

$125.99

$

Usually ships in 2-12 days

0

8

Snapper 7053518

WELDMENT, R.H. Tank Bracket
(Superseded to 7053518YP)

$153.99

$

Usually ships in 2-12 days

0

9

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head Cap, GR 5
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 5025125

NUT, 7/16-14 HEX NYLON LOCK
(Superseded to 5025125YP)

$3.49

$

In Stock, Qty 12

0

12

Snapper 7092089

SCREW, 7/16-14 x 2" Hex Head Cap, GR 5
(Superseded to 7092089YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7090250

WASHER, 1/2" Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

14

Snapper 7024593

ASSEMBLY, RH Tank
(Superseded to 7100214YP)

$569.99

$

Usually ships in 2-12 days

0

15

Snapper 7024669

ASSEMBLY, LH Tank
(Superseded to 7024669YP)

$335.99

$

Usually ships in 2-12 days

0

16

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7090825

SCREW, 1/4-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7090825YP)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7027223

WASHER, 1/4" Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7035638

CLIP, Open 3/8" Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7091909

WELL-NUT, 1/4-20 x 53/64
(Superseded to 7091909YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7012080

CABLE TIE, 7" Long (not shown)
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0
