NZM 27612 KH (85676) - Snapper 61" Zero-Turn Mower, 27hp Kohler 61" CUTTING DECK ASSEMBLY PT.2 Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

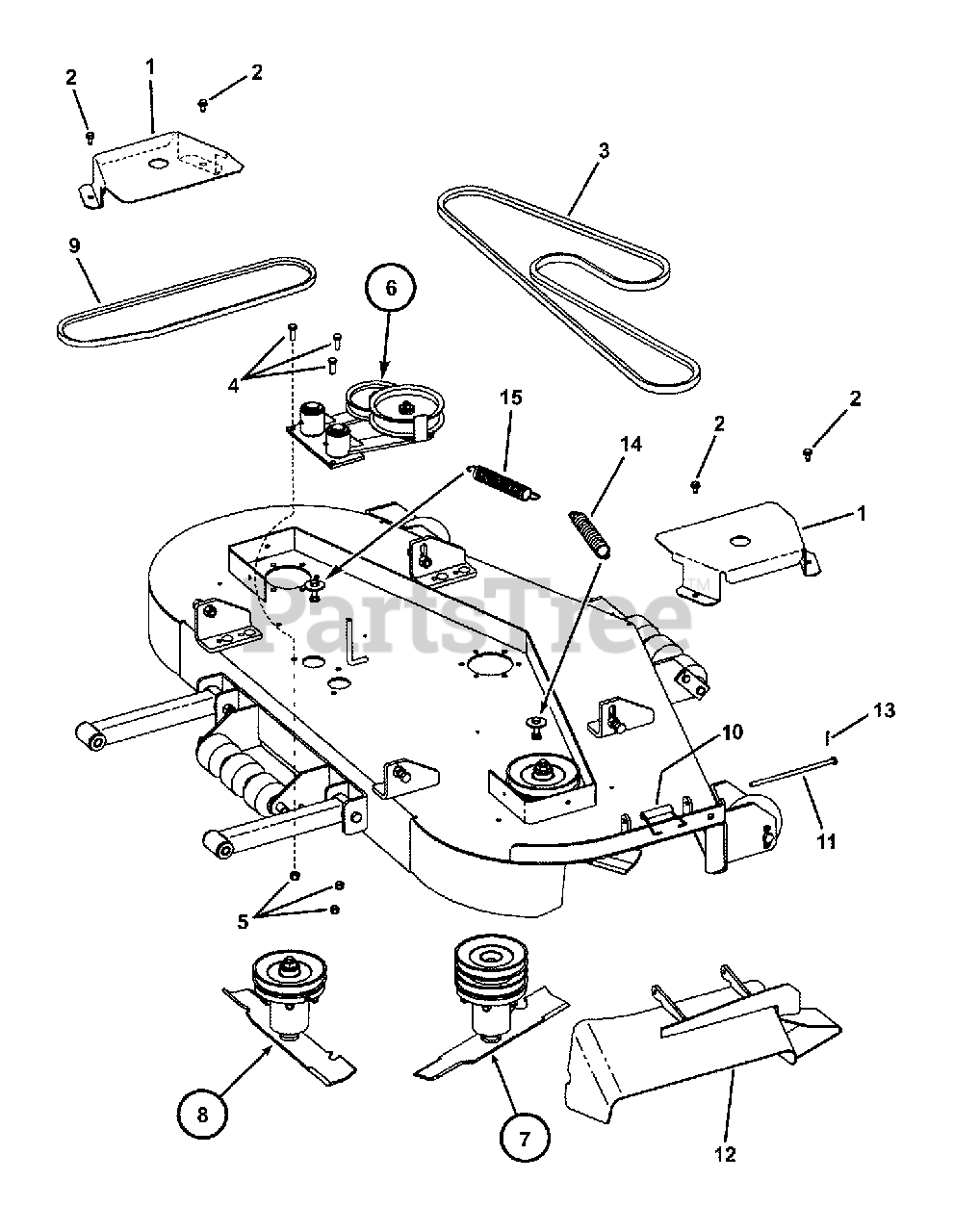

61" CUTTING DECK ASSEMBLY PT.2 Parts Diagram

  • Title

1

Snapper 7075384

BELT COVER
(Superseded to 7075384YP)

$143.99

$

In Stock, only 1 left!

0

2

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

3

Snapper 7029268

V-BELT, Secondary- 61" (HB Section, 127.0" effective length)
(Superseded to 7029268YP)

$92.99

$

In Stock, only 1 left!

0

4

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

5

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

6

ASSEMBLY, Idler

Note: (see breakdown on Idler Assy page)

$

$

Not available

7

ASSEMBLY, Center Spindle

Note: (see breakdown on Deck Spindle Assy page)

$

$

Not available

8

ASSEMBLY, Spindle

Note: (see breakdown on Deck Spindle Assy page)

$

$

Not available

9

Snapper 7071766

V-BELT, HB Sect. (nom. effective length 94.2")
(Superseded to 7071766YP)

Note: Engine to 61" Deck

$51.99

$

In Stock, only 1 left!

0

10

Snapper 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

11

Snapper 7029277

PIN, Chute Hinge
(Superseded to 7029277YP)

$40.99

$

In Stock, only 2 left!

0

12

Snapper 7058291

WELDMENT, Chute Deflector (61" Euro)
(Superseded to 7058291YP)

$427.99

$

Usually ships in 2-12 days

0

13

Snapper 7091313

PIN, 3/32 x 1" Cotter
(Superseded to 704058)

$3.49

$

In Stock, only 1 left!

0

14

Snapper 7072915

SPRING, Idler Primary (1.25" O.D. x 10" long)
(Superseded to 7072915YP)

$19.99

$

In Stock, only 4 left!

0

15

Snapper 7029278

SPRING, Idler (1.17" O.D. x 7.5" long)
(Superseded to 7029278YP)

$14.99

$

In Stock, Qty 7

0
