NZM 27612 KH (7085676) - Snapper 61" Zero-Turn Mower, 27hp Kohler PARKING BRAKE ASSEMBLY (Early Production) Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

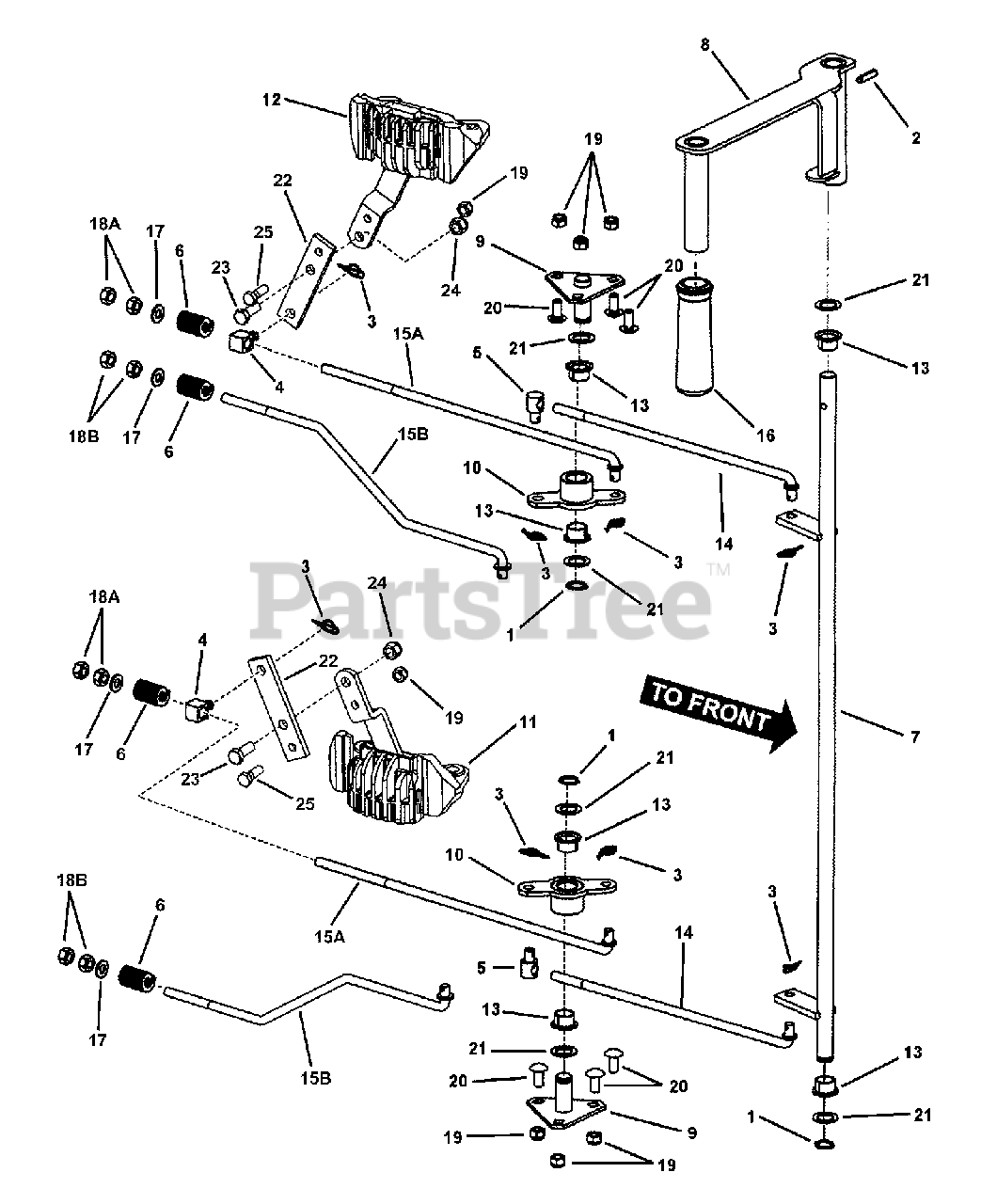

PARKING BRAKE ASSEMBLY (Early Production) Parts Diagram

  • Title

1

Snapper Pro 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

2

Snapper Pro 7092091

GROOVE PIN, 1/4 x 1-1/4" long
(Superseded to 7092091SM)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 7091593

PIN, 3/8" Self Locking Cotter

Note: Was 24159

$

$

Not available

4

Snapper Pro 7011231

SWIVEL, 3/8" Thru Hole, Special
(Superseded to 7011231SM)

Note: or 24586

$11.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7046451

SWIVEL, 3/8-24 Adjustment
(Superseded to 7046451YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7046782

SPRING, Rectangular Wire Die, Blue
(Superseded to 7046782YP)

$12.99

$

In Stock, only 1 left!

0

7

Snapper Pro 7059084

WELDMENT, Brake Rod Crossrod
(Superseded to 7059084YP)

$93.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7059085

WELDMENT, Park Brake Handle
(Superseded to 7059085YP)

$108.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7059086

WELDMENT, Brake Linkage Pivot
(Superseded to 7059086YP)

$32.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7059087

WELDMENT, Brake Linkage Bellcrank

$

$

Currently unavailable

11

Snapper Pro 7059176

PACKAGE, Left Hand Disc Brake
(Superseded to 7059176YP)

Note: used on Series 0 and Series 1 (early production only)

$148.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7059181

PACKAGE, Right Hand Disc Brake
(Superseded to 7059181YP)

Note: used on Series 0 and Series 1 (early production only)

$164.99

$

In Stock, only 1 left!

0

13

Snapper Pro 7072934

BUSHING, Teflon Impregnated

$7.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7073989

FRONT LINKAGE, Park Brake (3/8-24 thread)
(Superseded to 7073989YP)

$11.99

$

Usually ships in 2-12 days

0

15A

Snapper Pro 7073990

REAR LINKAGE, Park Brake (3/8-24 thread)

Note: 48" & 52" Deck Models

$

$

Not available

15B

Snapper Pro 7072094

ROD, Brake Rear (3/8-16 thread)
(Superseded to 7072094YP)

Note: 61" Deck Models Only

$18.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7074196

GRIP, Parking Brake
(Superseded to 7074196YP)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7090122

WASHER, 3/8" SAE Flat

$

$

Not available

18A

Snapper Pro 7090482

NUT, 3/8-24, Hex Jam, GR 5 or B
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

18B

Snapper Pro 7090665

NUT, 3/8-16, Hex Jam, GR 5 or B

$

$

Not available

19

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5

$

$

Not available

21

Snapper Pro 7091628

WASHER, .64 I.D. x .99 O.D. x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

22

Snapper Pro 7075465

EXTENSION, Brake Lever
(Superseded to 7075465YP)

Note: 61" Deck Models Only

$15.99

$

In Stock, only 1 left!

0

23

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

24

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

25

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: Was 90206

$3.99

$

In Stock, only 4 left!

0
