NZM 27612 KH (7085676) - Snapper 61" Zero-Turn Mower, 27hp Kohler 61" CUTTING DECK ASSEMBLY PT.1 Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

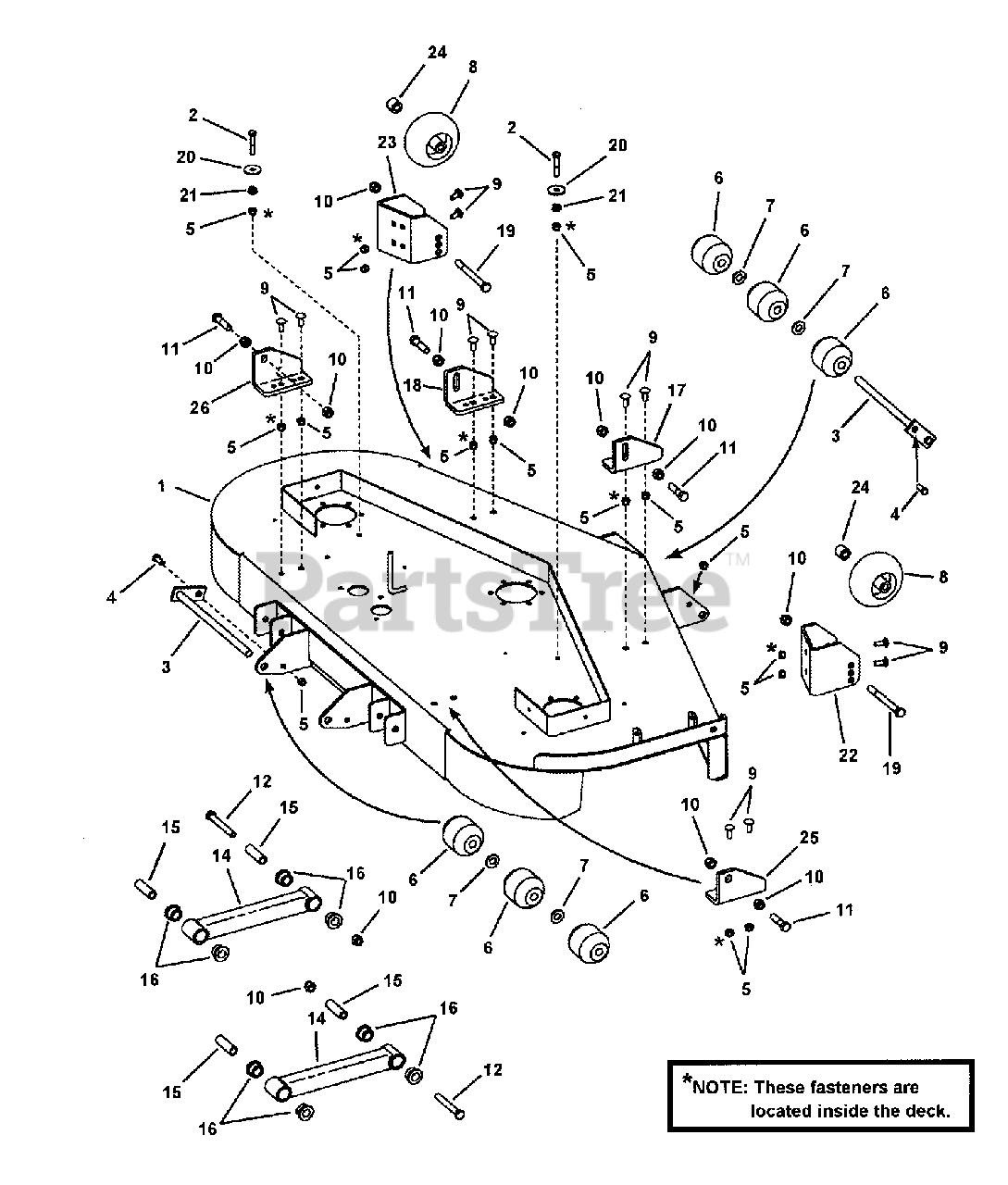

61" CUTTING DECK ASSEMBLY PT.1 Parts Diagram

  • Title

1

Snapper Pro 7044815

WELDMENT, 61" Deck
(Superseded to 5600443YP)

$3304.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

3

Snapper Pro 7027327

WELDMENT Pivot Pin
(Superseded to 7027327YP)

$82.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

5

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

6

Snapper Pro 7073142

ROLLER Low Density Polyethylene
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 7

0

7

Snapper Pro 7027344

WASHER, 5/8" Flat SAE
(Superseded to 7027344SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7029264

GAUGE WHEEL, Polyethylene
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

9

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

10

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

11

Snapper Pro 7090543

SCREW, 1/2-13 x 2" Hex Head Cap, GR 5

$

$

Currently unavailable

12

Snapper Pro 7029355

BOLT, 1/2-13 x 3-3/4" Hex Head Cap, GR 5
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0

13

ASSEMBLY, Pusher Bar (Includes items 14-16)

$

$

Not available

14

Snapper Pro 7044823

WELDMENT, Pusher Bar

$

$

Not available

15

Snapper Pro 7029263

SLEEVE - Suspension
(Superseded to 7029263YP)

$24.99

$

In Stock, Qty 16

0

16

Snapper Pro 7029258

BUSHING - Suspension
(Superseded to 7029258YP)

$8.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 7075382

BRACKET, Deck Lift, RH Front
(Superseded to 7075382YP)

$39.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7075381

BRACKET, Deck Lift, LH Front
(Superseded to 7075381YP)

$39.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025017X40

BOLT, 1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

20

Snapper Pro 7091331

WASHER, .406 x 1.50 x .120 Flat

$

$

Not available

21

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

22

Snapper Pro 7074789

WHEEL BRACKET Front Right
(Superseded to 7074789YP)

$52.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 7074790

WHEEL BRACKET Front Left
(Superseded to 7074790YP)

$74.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 7036456

SPACER, Gauge Wheel

$

$

Not available

25

Snapper Pro 7075781

BRACKET, Deck Lift, RH Rear
(Superseded to 7075781YP)

$59.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 7075780

BRACKET, Deck Lift, LH Rear
(Superseded to 7075780YP)

$59.99

$

Usually ships in 2-12 days

0
