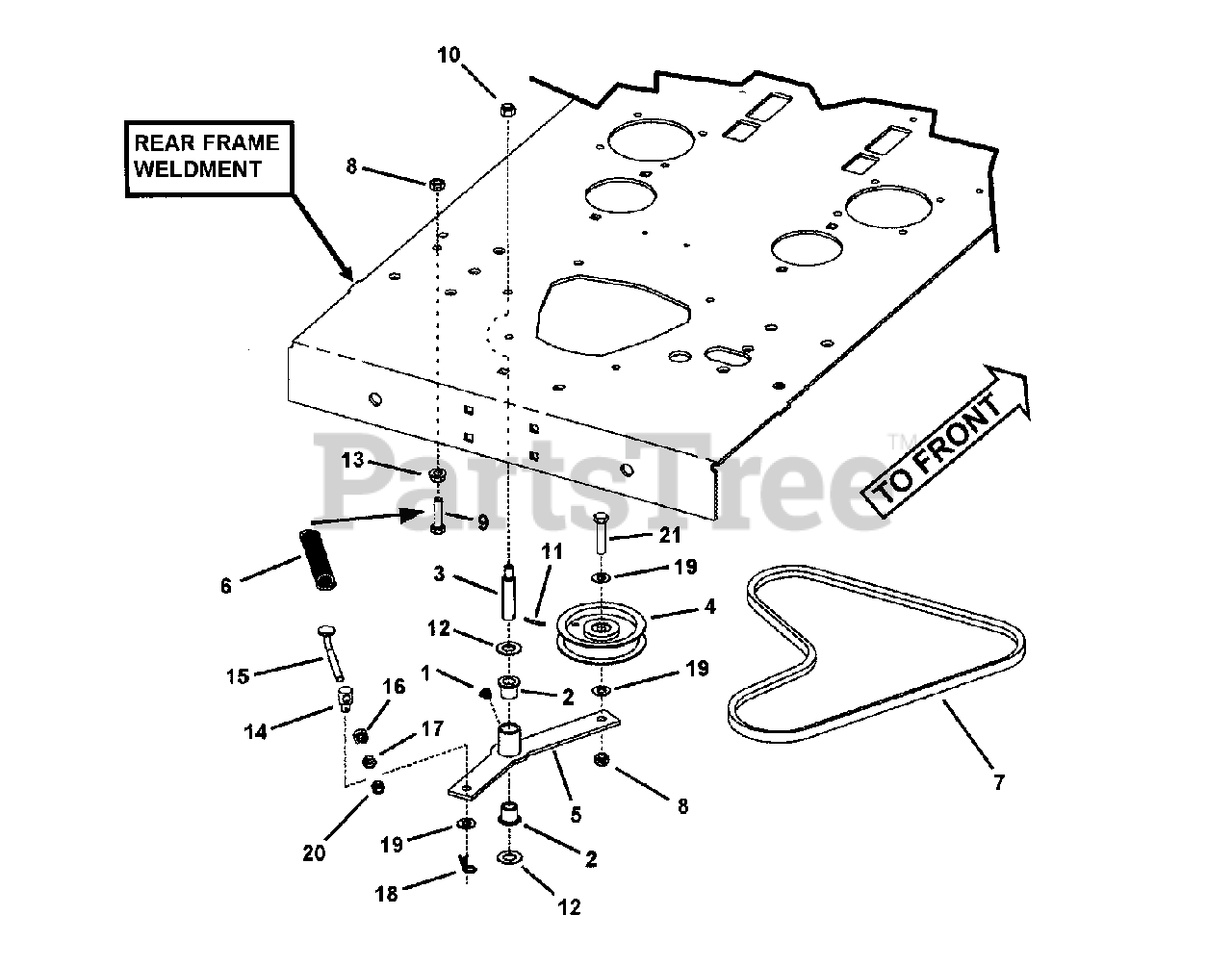

NZM 27611 KH (80386) - Snapper 61" Zero-Turn Mower, 27hp Kohler HYDRO IDLER ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

HYDRO IDLER ASSEMBLY Parts Diagram

  • Title

1

Snapper 7014669

FITTING, 3/16" Straight Lube
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 7014409

BUSHING, 9/16" I.D.
(Superseded to 7014409SM)

$6.99

$

In Stock, Qty 19

0

3

Snapper 7035816

PIN, Idler Arm (3/8-24 Thread)
(Superseded to 7035816YP)

$100.99

$

Usually ships in 2-12 days

0

4

Snapper 7018574

PULLEY, Flat Idler 4.12" (Backside Idler)
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

5

Snapper 7059094

WELDMENT, Idler Arm
(Superseded to 7059094YP)

$253.99

$

Usually ships in 2-12 days

0

6

Snapper 7073992

SPRING, Extension
(Superseded to 7073992YP)

$28.99

$

Usually ships in 2-12 days

0

7

Snapper 7075109

BELT, Hydro Drive (HA Section, 47.5 Effective Length)
(Superseded to 7075109YP)

Note: used on Series 0

$40.99

$

In Stock, Qty 20+

0

--

Snapper 7075109

BELT, Hydro Drive (5L Section, 47.5 Effective Length)
(Superseded to 7075109YP)

Note: Was 75626 (used on Series 1)

$40.99

$

In Stock, Qty 20+

0

8

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

9

Snapper 7091497

SCREW, 3/8-16 x 1-1/2 Hex Head Cap GR5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

10

Snapper 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

11

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

12

Snapper 7091804

WASHER, 9/16" Flat
(Superseded to 5103679)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

14

Snapper 7075078

SWIVEL, Adjustable
(Superseded to 7075078YP)

$18.99

$

In Stock, only 1 left!

0

15

Snapper 7028728

ADJUSTER, Chain (5/16-18 Thread)
(Superseded to 703827)

$10.99

$

In Stock, Qty 12

0

16

Snapper 7028620

SPACER, .340 I.D. x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

17

Snapper 7091511

NUT, 5/16-18 Hex, GR5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap GR5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0
