NZM 25613 KWV (7800022) - Snapper 61" Zero-Turn Mower, 25hp Kawasaki TWIN STICK CONTROL ASSEMBLY (R.H. Side) Parts Diagram

61" Zero-Turn Mower, 25hp Kawasaki

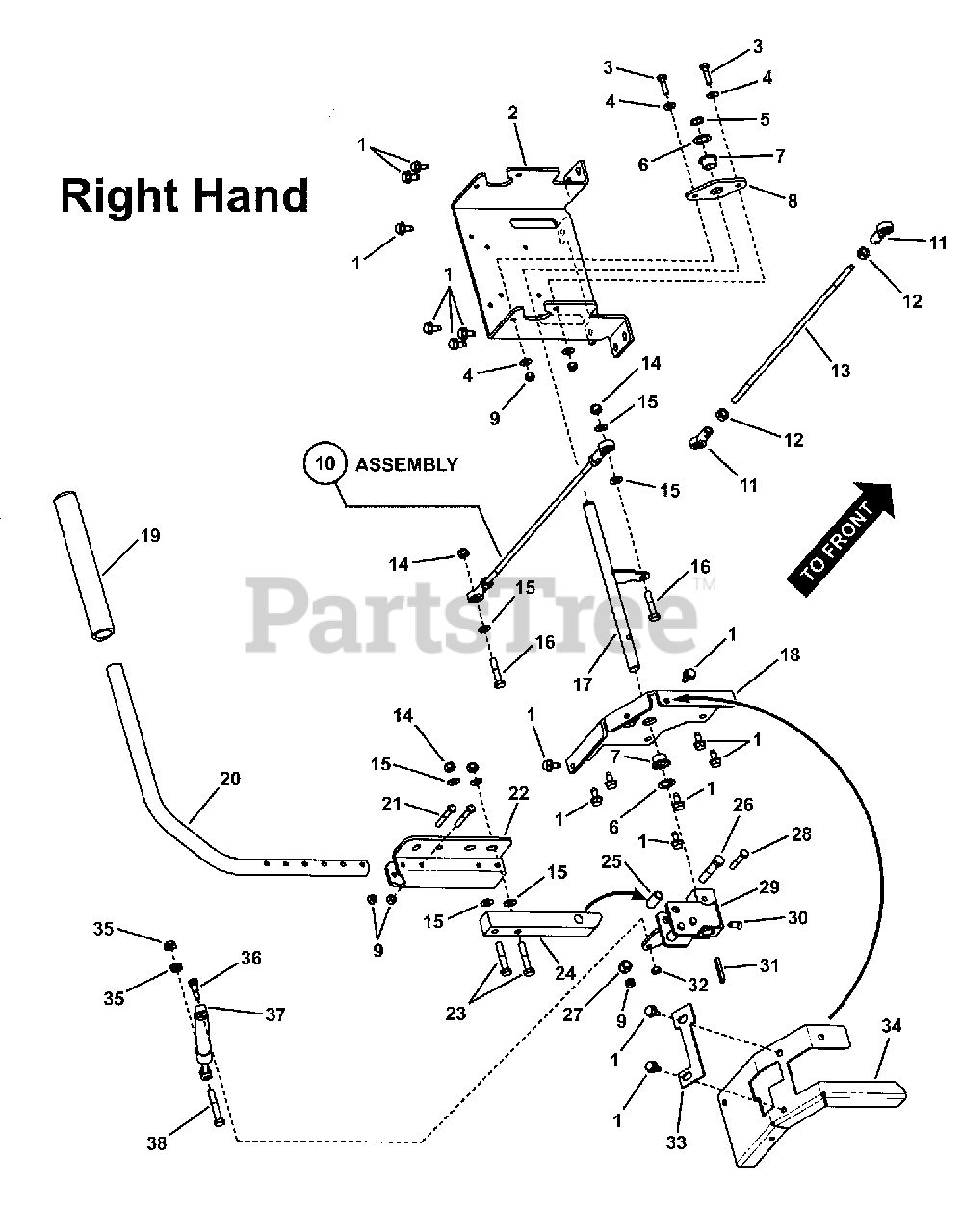

TWIN STICK CONTROL ASSEMBLY (R.H. Side) Parts Diagram

  • Title

1

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

2

Snapper 7075264

CHANNEL, Mounting
(Superseded to 7075264YP)

Note: also shown on TWIN STICK CONTROL ASSEMBLY (L.H. Side) page

$100.99

$

Usually ships in 2-12 days

0

3

Snapper 7090548

SCREW, 1/4-20 x 1" Hex Head Cap GR 5
(Superseded to 703820)

Note: or 7027230

$3.99

$

In Stock, only 4 left!

0

4

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

6

Snapper 7091628

WASHER, .64 I.D. x .99 O.D. x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

7

Snapper 7072934

BUSHING, Teflon Impregnated
(Superseded to 7072934SM)

$8.49

$

In Stock, only 4 left!

0

8

Snapper 7073061

MOUNTING PLATE, Left Hand Bearing
(Superseded to 7073061YP)

$15.99

$

Usually ships in 2-12 days

0

9

Snapper 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

10

ASSY, Pump Control Linkage (ref. #'s 11, 12, 13)

Note: includes 3 items shown below

$

$

Not available

11

Snapper 7027139

ROD END (5/16-24 thread)
(Superseded to 7027139YP)

$18.99

$

Usually ships in 2-12 days

0

12

Snapper 7091297

NUT, 5/16-24 Hex, GR 5 or B
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7073995

LINKAGE ROD, Pump Control (5/16-24 thread)
(Superseded to 7073995YP)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

17

Snapper 7400033

WELDMENT, Cross Rod
(Superseded to 7400033YP)

$59.99

$

Usually ships in 2-12 days

0

18

Snapper 7074164

BUSHING MOUNT PLATE, Right Hand
(Superseded to 7074164YP)

$64.99

$

Usually ships in 2-12 days

0

19

Snapper 7072212

GRIP, Twin Stick
(Superseded to 7072212YP)

$7.99

$

Usually ships in 2-12 days

0

20

Snapper 7074661

HANDLEBAR, Twin Stick
(Superseded to 7074661YP)

$79.99

$

Usually ships in 2-12 days

0

21

Snapper 7091003

SCREW, 1/4-20 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091003YP)

Note: or 7091813

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7071825

BRACKET, Handle Adjustment
(Superseded to 7071825YP)

$20.99

$

Usually ships in 2-12 days

0

23

Snapper 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7074186

MOUNTING ARM

$

$

Not available

25

Snapper 7075029

SPACER, .498 O.D. x 1.010" long

$

$

Not available

26

Snapper 7090588

SCREW 3/8-16 x 2" Hex Head Cap, GR 5
(Superseded to 703589)

Note: or 7091305

$4.49

$

In Stock, only 1 left!

0

27

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap GR 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

29

Snapper 7400031

WELDMENT, Mounting Hub, RH
(Superseded to 7400031YP)

$165.99

$

Usually ships in 2-12 days

0

30

Snapper 7090848

SET SCREW, 5/16-18 x 1/2" Square Head Cup Point
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

31

Snapper 7091803

KEY, 3/16" Square x 1-1/2"
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

32

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

33

Snapper 7300138

PLATE, Speed Adjuster
(Superseded to 7300138YP)

$5.49

$

Usually ships in 2-12 days

0

34

Snapper 7300095

PLATE, Bushing Mount, RH
(Superseded to 7300095YP)

$46.99

$

Usually ships in 2-12 days

0

35

Snapper 7090585

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

36

Snapper 7900007

SCREW, 1/4-20 Shoulder Socket Head
(Superseded to 7900007YP)

$5.49

$

Usually ships in 2-12 days

0

37

Snapper 5022978

DAMPENER, Hydraulic
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

38

Snapper 5025011X16

BOLT, 5/16-18 X 2", GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0
