NZM 25613 KWV (7800022) - Snapper 61" Zero-Turn Mower, 25hp Kawasaki SEAT ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 25hp Kawasaki

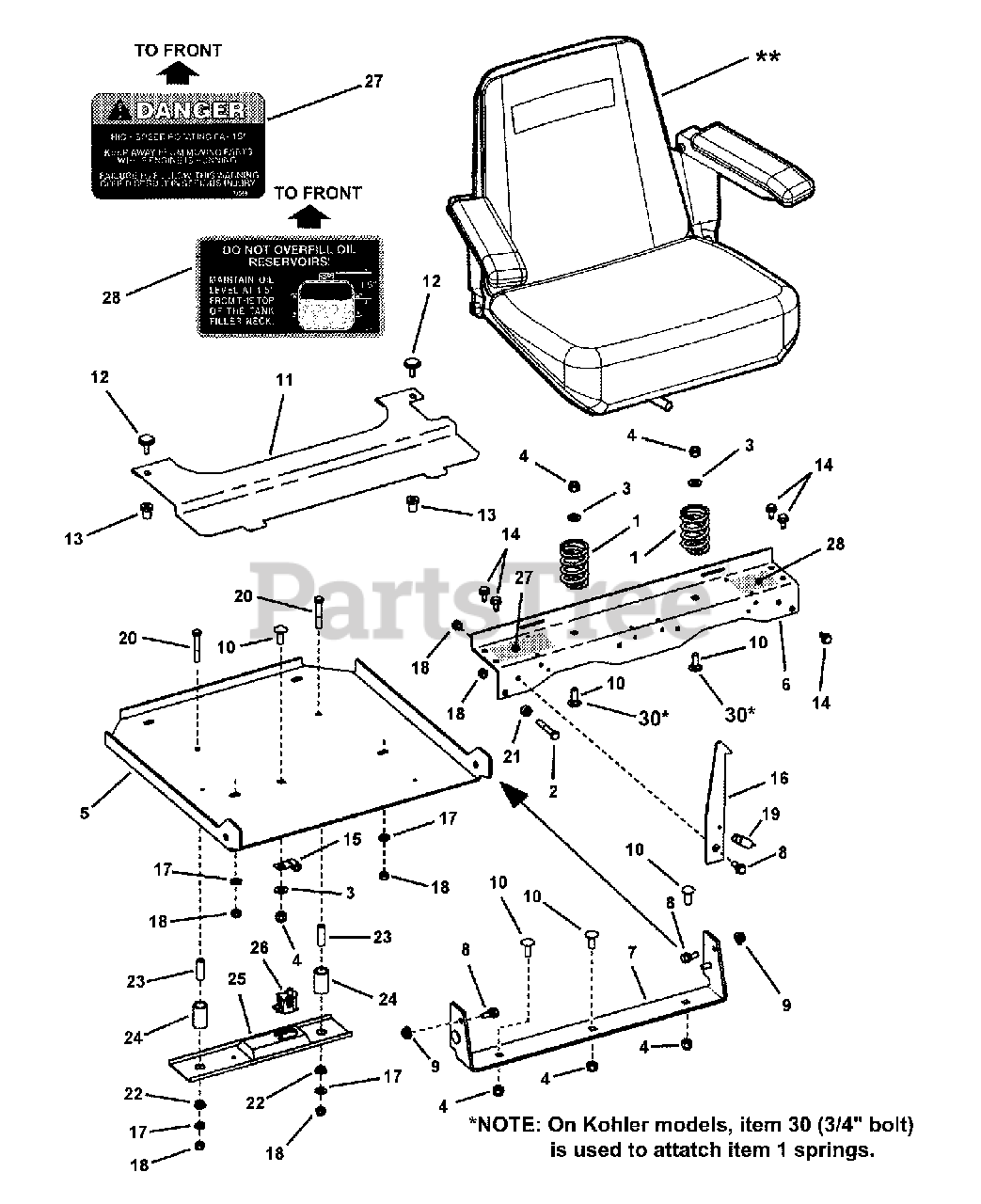

SEAT ASSEMBLY Parts Diagram

  • Title

Snapper 7075417

** SEAT ASSY (Seats Inc. p/n 178777)
(Superseded to 7075417YP)

Note: (Incl. angle brackets, seat pan, cushions, flip-up armrests, adjusters w/lock & seat switch)

$768.99

$

Usually ships in 2-12 days

0

Snapper 7029338

** SEAT ASSY (Seats Inc. p/n 179035VD310 Silver/Black (not shown)
(Superseded to 7029338YP)

Note: used on NZM27613KH only

$1424.99

$

Usually ships in 2-12 days

0

1

Snapper 7074218

SPRING, Compression- Seat Support 2.75" Tall
(Superseded to 7074218SM)

Note: on Kawasaki models

$

$

Not available

1

Snapper 7078299

SPRING, Compression- Seat Support 2.25" Tall
(Superseded to 7078299SM)

Note: on Kohler models

$14.99

$

Usually ships in 2-12 days

0

2

Snapper 7090368

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7075419

SEAT PAN
(Superseded to 7075419YP)

$159.99

$

Usually ships in 2-12 days

0

6

Snapper 7074673

CROSSMEMBER, Seat Support
(Superseded to 7074673YP)

$59.99

$

Usually ships in 2-12 days

0

7

Snapper 7058546

WELDMENT, Hinge Bracket (shown)
(Superseded to 7058546YP)

Note: on Kawasaki models

$85.99

$

Usually ships in 2-12 days

0

7

Snapper 7050563

WELDMENT, Hinge Bracket (not shown)
(Superseded to 7050563YP)

Note: on Kohler models

$71.99

$

Usually ships in 2-12 days

0

8

Snapper 7015761

SHOULDER BOLT, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

9

Snapper 7090951

NUT, 5/16-18 Large Flange Hex Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

10

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

11

Snapper 7074740

GUARD, Fan

$

$

Not available

12

Snapper 7023341

KNOB, 1/4-20 x 3/4" Thread

$7.99

$

Usually ships in 2-12 days

0

13

Snapper 7091909

WELL-NUT, 1/4-20 x 53/64
(Superseded to 7091909YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

15

Snapper 7035638

CLIP, Open 3/8" Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7075616

LATCH, Seat Support
(Superseded to 7075616YP)

$11.99

$

Usually ships in 2-12 days

0

17

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

18

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7026292

SPRING, Extension
(Superseded to 7026292YP)

$11.99

$

In Stock, only 3 left!

0

20

Snapper 5025011X16

BOLT, 5/16-18 X 2", GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7028620

SPACER, .340 I.D. x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

22

Snapper 7022793

BUSHING, Seat
(Superseded to 7022793YP)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 7022794

SPACER
(Superseded to 7022794YP)

$26.99

$

In Stock, only 2 left!

0

24

Snapper 7036492

SPRING, Compression 1.52" Tall
(Superseded to 7036492YP)

Note: on Kawasaki models

$7.49

$

Usually ships in 2-12 days

0

24

Snapper 7071767

SPRING, Compression 1.72" Tall

Note: on Kohler models

$

$

Not available

25

Snapper 7033362

HOLDER, Seat Switch
(Superseded to 7033362YP)

$23.99

$

Usually ships in 2-12 days

0

26

Snapper 7023354

SWITCH, Seat, NC
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

27

Snapper 7073596

DECAL, Danger- High Speed Rotating Parts
(Superseded to 7073596YP)

$6.99

$

Usually ships in 2-12 days

0

28

Snapper 7075433

DECAL, Reservoir Oil Level
(Superseded to 7075433YP)

$5.99

$

Usually ships in 2-12 days

0

29

Snapper 7026249

SPACER, Washer (not shown)
(Superseded to 7026249YP)

Note: used on NZM27613KH only

$4.49

$

In Stock, only 1 left!

0

30

Snapper 7091923

BOLT, 3/8-16 x 3/4" Square Neck Carriage
(Superseded to 7091923SM)

Note: used on NZM27613KH only

$3.49

$

Usually ships in 2-12 days

0
