NZM 25611 KWV (7084942) - Snapper 61" Zero-Turn Mower, 25hp Kawasaki FRONT FRAME ASSEMBLY PT.2 Parts Diagram

61" Zero-Turn Mower, 25hp Kawasaki

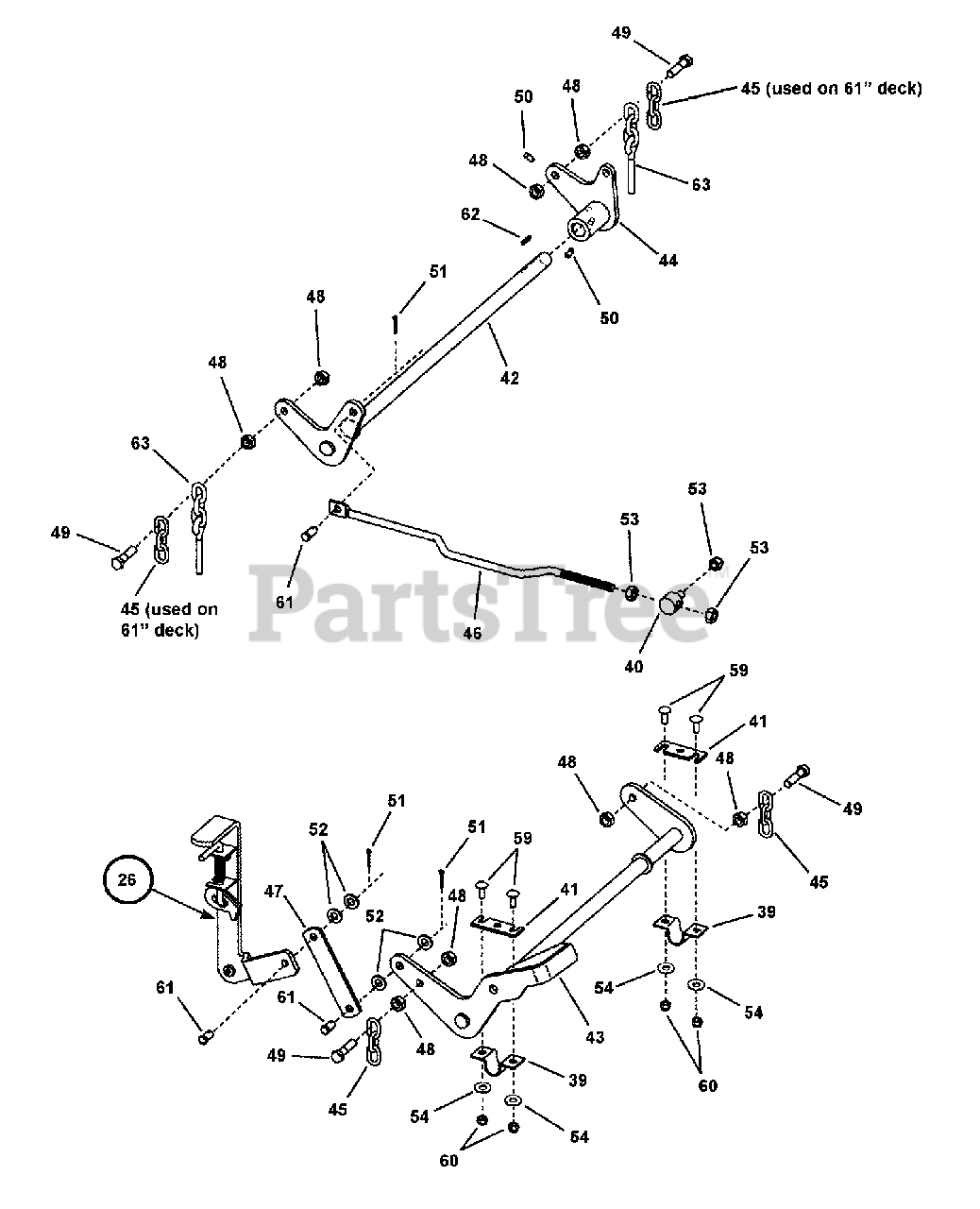

FRONT FRAME ASSEMBLY PT.2 Parts Diagram

  • Title

26

ASSY, Deck Lift Handle

$

$

Not available

39

Snapper Pro 7043803

BRACKET, Deck Support
(Superseded to 7043803YP)

$9.49

$

Usually ships in 2-12 days

0

40

Snapper Pro 7044858

SWIVEL, Timing Rod (1/2-13 External Thread)
(Superseded to 7044858SM)

$55.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 7044870

SHIM PLATE
(Superseded to 7044870YP)

$22.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 7058148

WELDMENT, Rear Lift
(Superseded to 7058148YP)

$176.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 7058181

WELDMENT, Front Deck Lift

$

$

Currently unavailable

44

Snapper Pro 7058182

WELDMENT, Bellcrank Lift
(Superseded to 7058182YP)

$196.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 7059173

CHAIN, 3 Links

Note: qty. 2 on 52" deck; 4 on 61" deck

$

$

Not available

46

Snapper Pro 7074579

ROD, Timing (1/2-13 Thread)
(Superseded to 7074579YP)

$39.99

$

Usually ships in 2-12 days

0

47

Snapper Pro 7074698

LINK, Front

$

$

Not available

48

Snapper Pro 7091544

NUT, 1/2-13 Hex Flange GR5
(Superseded to 7091544SM)

$3.49

$

Usually ships in 2-12 days

0

49

Snapper Pro 7090543

SCREW, 1/2-13 x 2" Hex Head Cap, GR5

$

$

Currently unavailable

50

Snapper Pro 7090848

SET SCREW, 5/16-18 Square Head Cup Point
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

51

Snapper Pro 7091516

PIN, 5/32 x 1" Cotter

$

$

Not available

52

Snapper Pro 7091587

WASHER, .531 I.D. Flat

$

$

Not available

53

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0

54

Snapper Pro 7090188

WASHER, 5/16" Flat

$

$

Not available

59

Snapper Pro 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, GR5

$

$

Not available

60

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

61

Snapper Pro 7012802

PIN, 1/2 x 1-1/8" Clevis
(Superseded to 7012802SM)

$5.99

$

In Stock, only 2 left!

0

62

Snapper Pro 7091803

KEY, 3/16" Square x 1-1/2"

$

$

Not available

63

Snapper Pro 7053562

ASSEMBLY, Chain & Eyebolt

Note: used on 52" Deck Model only

$

$

Not available
