NZM 21520 KWV (7084739) - Snapper 52" Zero-Turn Mower, 21hp Kawasaki 52" CUTTING DECK ASSEMBLY PT.1 Parts Diagram

52" Zero-Turn Mower, 21hp Kawasaki

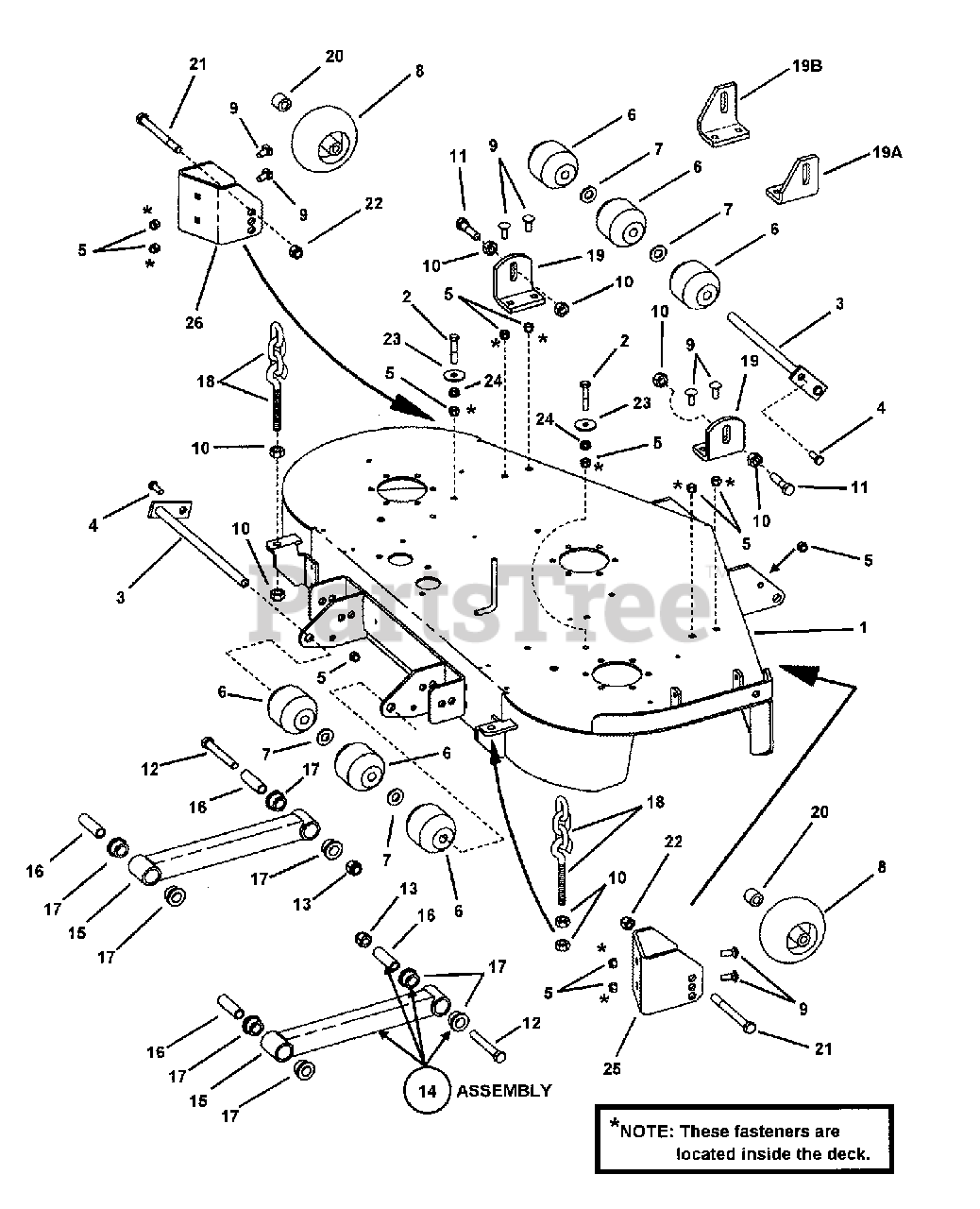

52" CUTTING DECK ASSEMBLY PT.1 Parts Diagram

  • Title

1

Snapper Pro 7059374

WELDMENT, 52" Deck
(Superseded to 5600417YP)

Note: Deck Group 58327

$1823.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

3

Snapper Pro 7027327

WELDMENT Pivot Pin
(Superseded to 7027327YP)

$82.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

5

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

6

Snapper Pro 7073142

ROLLER Low Density Polyethylene
(Superseded to 7073142YP)

$16.99

$

In Stock, Qty 7

0

7

Snapper Pro 7027344

WASHER, 5/8" Flat SAE
(Superseded to 7027344SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7029264

GAUGE WHEEL, Polyethylene
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

9

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

10

Snapper Pro 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

11

Snapper Pro 7090543

SCREW, 1/2-13 x 2" Hex Head Cap, GR5

$

$

Currently unavailable

12

Snapper Pro 7029355

BOLT, 1/2-13 x 3-3/4" Hex Head Cap, GR5
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

14

ASSEMBLY, Pusher Bar (Includes items 15-17)

$

$

Not available

15

Snapper Pro 7059108

WELDMENT, Pusher Bar

$

$

Not available

16

Snapper Pro 7029263

SLEEVE - Suspension
(Superseded to 7029263YP)

$24.99

$

In Stock, Qty 12

0

17

Snapper Pro 7029258

BUSHING - Suspension
(Superseded to 7029258YP)

$8.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 7053562

ASSEMBLY, Chain & Eyebolt (see Front Frame Assy page, item 63)

$

$

Not available

19

Snapper Pro 7074569

BRACKET, Front Deck Lift
(Superseded to 7074569YP)

Note: used on Series 0

$32.99

$

Usually ships in 2-12 days

0

19A

Snapper Pro 7075582

BRACKET, Front Deck Hanger R. H.
(Superseded to 7075582YP)

Note: used on Series 1

$46.99

$

Usually ships in 2-12 days

0

19B

Snapper Pro 7075583

BRACKET, Front Deck Hanger L. H.
(Superseded to 7075583YP)

Note: used on Series 1

$51.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7036456

SPACER, Gauge Wheel

$

$

Not available

21

Snapper Pro 5025017X40

BOLT, 1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

22

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

23

Snapper Pro 7091331

WASHER, .406 x 1.50 x .120 Flat

$

$

Not available

24

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

25

Snapper Pro 7074789

WHEEL BRACKET Front Right
(Superseded to 7074789YP)

$52.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 7074790

WHEEL BRACKET Front Left
(Superseded to 7074790YP)

$74.99

$

Usually ships in 2-12 days

0
