NZM 19480 KWV (84738) - Snapper 48" Zero-Turn Mower, 19hp Kawasaki HOSE ASSEMBLY (Series 0) PT.1 Parts Diagram

48" Zero-Turn Mower, 19hp Kawasaki

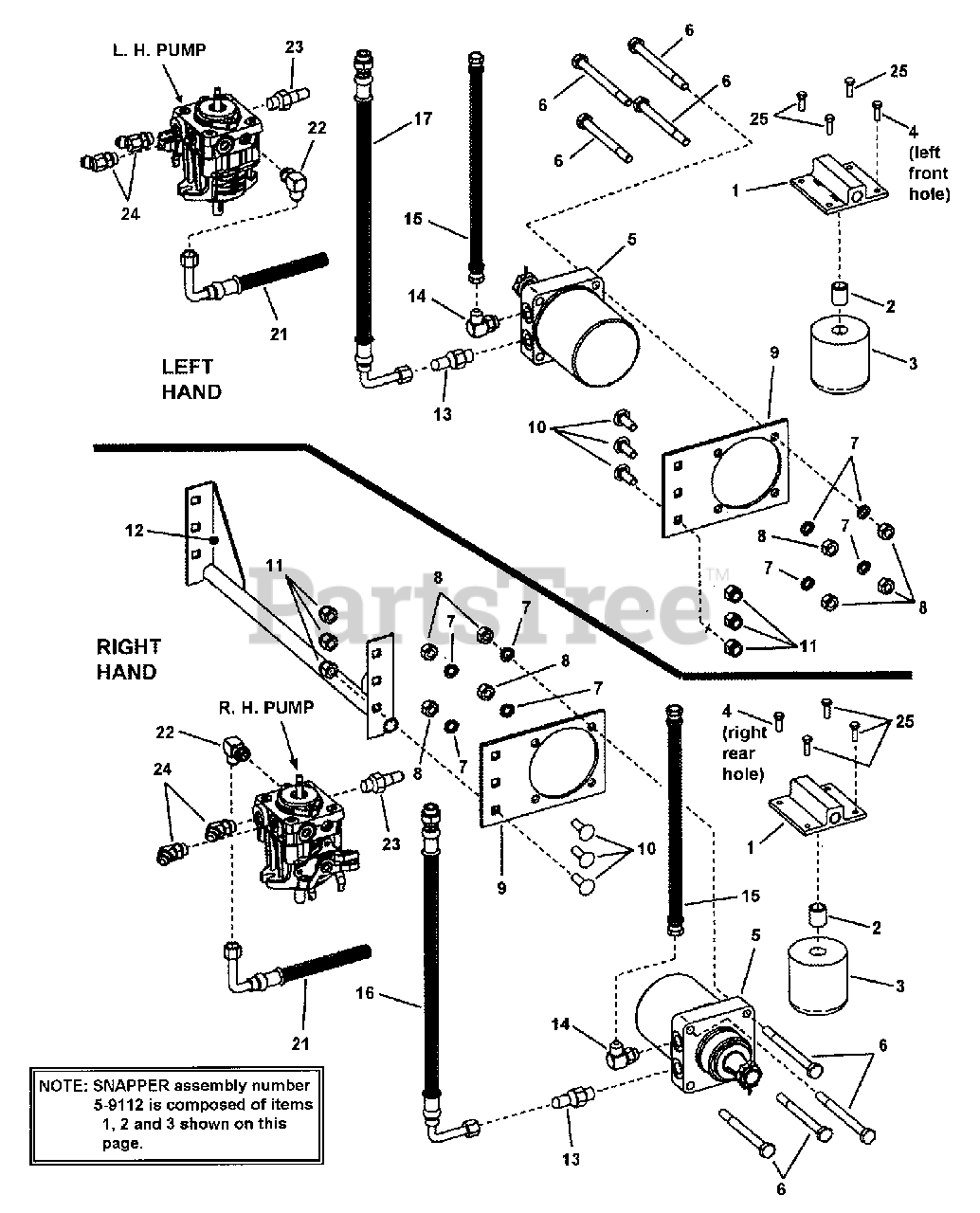

HOSE ASSEMBLY (Series 0) PT.1 Parts Diagram

  • Title

1

Snapper 7059112

MOUNT, Oil Filter
(Superseded to 7059112YP)

Note: Includes Filter Item #3

$265.99

$

Usually ships in 2-12 days

0

2

Snapper 7027200

FITTING, Straight 1-12 UNF Thread

$

$

Currently unavailable

3

Snapper 7027164

FILTER, Oil
(Superseded to 7027164YP)

Note: Nelson P/N 85437-D

$

$

Not available

4

Snapper 7090815

SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

5

Snapper 7074161

MOTOR, Hydraulic
(Superseded to 7074161YP)

Note: (Includes 13861, #11 Woodruff Key; & 92093, Patched Hex Nut)

$1253.99

$

Usually ships in 2-12 days

0

6

Snapper 7092087

BOLT, 1/2-13 x 6" Hex Head Cap GR5
(Superseded to 7092087YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7091322

WASHER, 1/2" Split Lock
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

9

Snapper 7073996

PLATE, Mounting
(Superseded to 7073996YP)

$58.99

$

Usually ships in 2-12 days

0

10

Snapper 7090768

BOLT, 1/2-13 x 1-1/2" Square Neck Carriage GR5
(Superseded to 7090768YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 3 left!

0

12

Snapper 7059091

WELDMENT, Rear Crossbrace
(Superseded to 7059091YP)

$

$

Not available

13

Snapper 7075058

CONNECTOR, Straight Hydraulic (Parker # 8-10 F5OLO-S)
(Superseded to 7075058YP)

$13.99

$

Usually ships in 2-12 days

0

14

Snapper 7075059

CONNECTOR, 90 Degree Hydraulic (Parker # 8-10 C5OLO-S)
(Superseded to 7075059YP)

$39.99

$

Usually ships in 2-12 days

0

15

Snapper 7075049

HOSE, 13-3/4" Hydraulic (Parker # F436BKJCJC080808-13-75)
(Superseded to 7075049YP)

$85.99

$

Usually ships in 2-12 days

0

16

Snapper 7075050

HOSE, 19-1/2" Hydraulic (Parker # F436BKJCJ5080808-19.5)

$

$

Not available

17

Snapper 7075051

HOSE, 17-1/2" Hydraulic (Parker # F436BKJCJ5080808-17.5)
(Superseded to 7075051YP)

$125.99

$

Usually ships in 2-12 days

0

21

Snapper 7075054

HOSE, 6-1/2" (Parker # R836BKJ9NR080008-6.5
(Superseded to 7075054YP)

$56.99

$

Usually ships in 2-12 days

0

22

Snapper 7075056

CONNECTOR, 90 Degree Hydraulic (Parker # 8-6 C5OLO-S
(Superseded to 7075056YP)

$26.99

$

Usually ships in 2-12 days

0

23

Snapper 7075057

CONNECTOR, Straight Hydraulic (Parker # 8-6 F5OLO-S)
(Superseded to 7075057YP)

$11.99

$

Usually ships in 2-12 days

0

24

Snapper 7075055

CONNECTOR, 45 Degree Hydraulic (Parker # V5OLO-S)
(Superseded to 7075055YP)

$26.99

$

Usually ships in 2-12 days

0

25

Snapper 7090793

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0
