LT125 Series 48" Lawn Tractor, 25hp

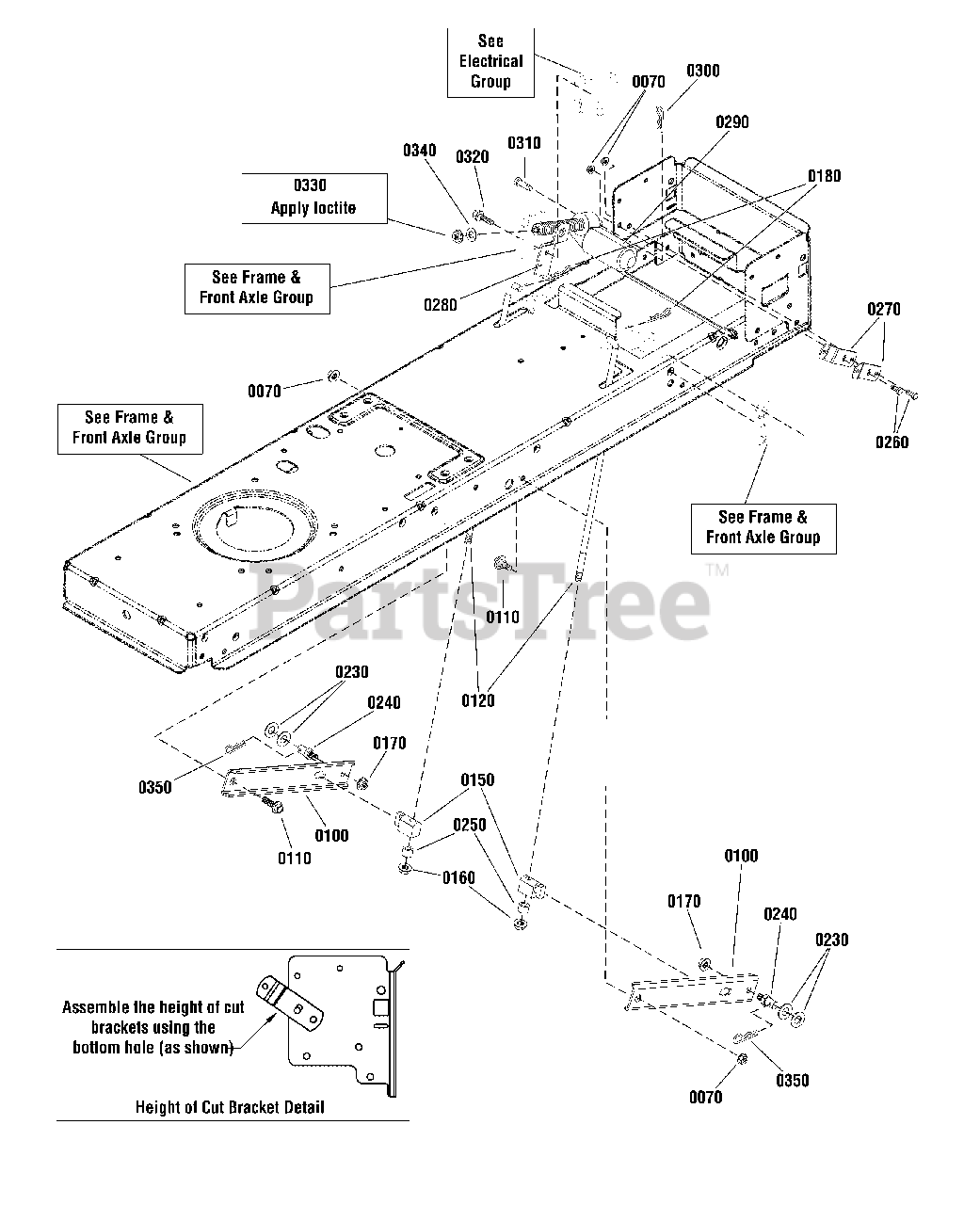

Lift Group - Electric Parts Diagram

  • Title
0070

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0100

Snapper 1731417A

ARM, Rear Lift
(Superseded to 1731417BMYP)

$14.99

$

Usually ships in 2-12 days

0

0110

Snapper 1732426

BOLT, Shoulder, 5/16-18 x 9/16
(Superseded to 1732426SM)

$4.49

$

In Stock, only 1 left!

0

0120

Snapper 1727955

ROD, Lift, Lower, 3/8 x 10 Long
(Superseded to 1727955SM)

$18.99

$

In Stock, Qty 7

0

0150

Snapper 1731894

TRUNNION
(Superseded to 1731894SM)

$9.99

$

In Stock, only 3 left!

0

0160

Snapper 1960687

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0170

Snapper 1931211

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0180

Snapper 1960074

CLIP, Hair Pin, 1 5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0230

Snapper 1960170

WASHER, 1/2 x 1 OD
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0240

Snapper 721221

PIN, Threaded, Shoulder, 3/8-16 x 1-7/16 Long
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

0250

Snapper 1666294

SPACER, 3/8 ID x 7/16 Long
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

0260

Snapper 1921332

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0270

Snapper 1737856A

SUPPORT, Electric, Lift
(Superseded to 1737856AYP)

$7.49

$

Usually ships in 2-12 days

0

0280

Snapper 1737859A

SUPPORT, Electric, Lift
(Superseded to 1737859AYP)

$10.99

$

Usually ships in 2-12 days

0

0290

Snapper 1738294

MOTOR, Electric, Mini EHOC, Peerless
(Superseded to 1753528YP)

$

$

Not available

0300

Snapper 1722460

PIN, Quick, 1-3/16 Long
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0310

Snapper 1668344

PIN, Shear, 1/4 ID. X 1-3/4 Long
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0320

Snapper 1960373

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0330

Snapper 1960757

NUT, Hex, 1/4-20 L.H. Thread
(Superseded to 1960757SM)

$5.49

$

Usually ships in 2-12 days

0

0340

Snapper 1921319

WASHER, 1/4, x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0350

Snapper 703796

CLIP, Hair Pin, 1 7/8

$5.49

$

In Stock, only 1 left!

0
