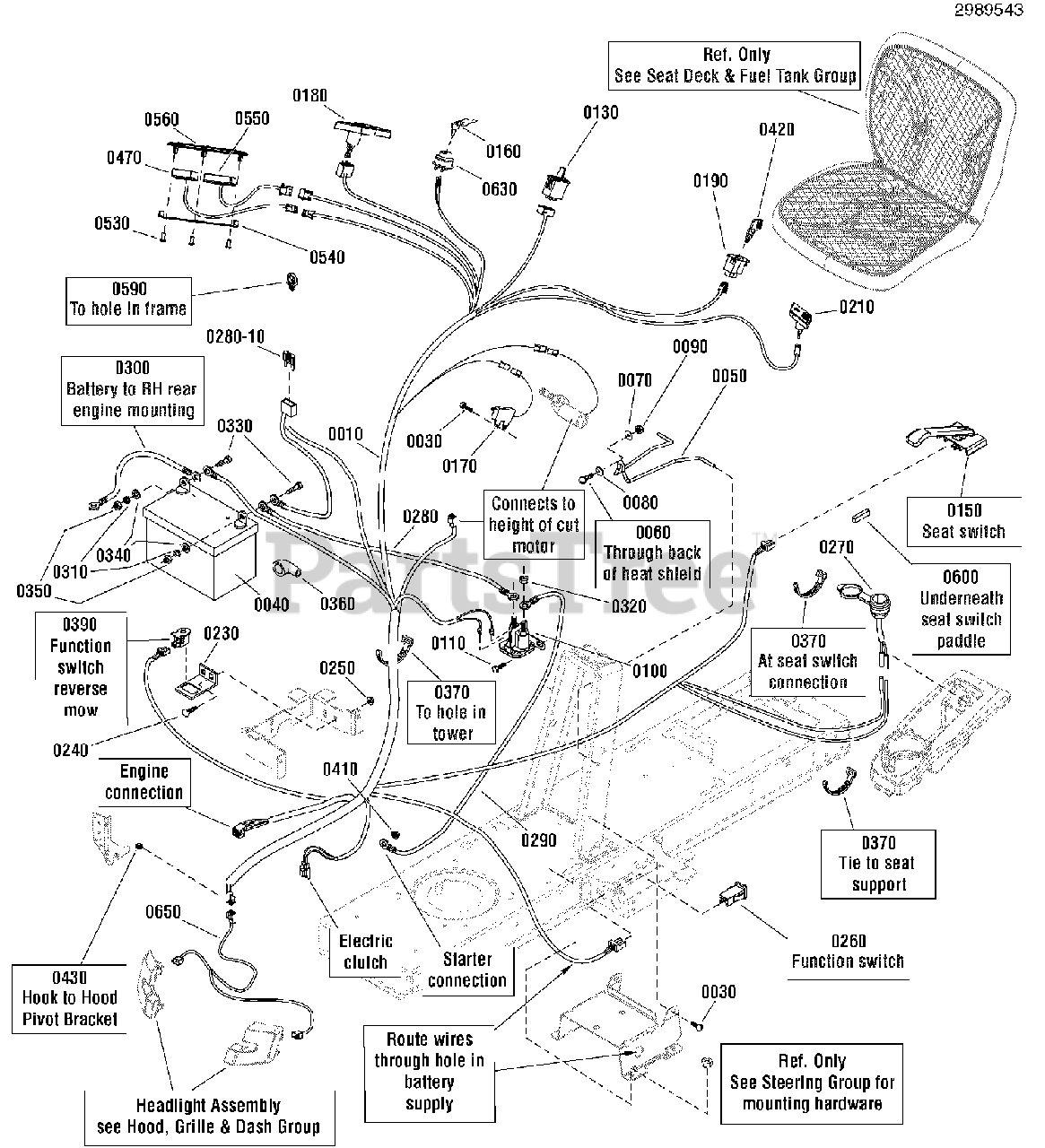

NXT 2452 (2691010) - Snapper LT125 Series 52" Lawn Tractor, 24hp Electrical Group Parts Diagram

LT125 Series 52" Lawn Tractor, 24hp

Electrical Group Parts Diagram

  • Title

0010

Snapper 1751939

WIRING HARNESS
(Superseded to 1751939YP)

$228.99

$

Usually ships in 2-12 days

0

0030

Snapper 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0040

BATTERY, 12 Volt, 230 CCA

$

$

Not available

0050

Snapper 1730007

HOLD DOWN, Battery, 1/4 Dia.
(Superseded to 1730007SM)

$27.99

$

Usually ships in 2-12 days

0

0060

Snapper 1931318

BOLT, Carriage, 1/4-20 x 7/8, G5
(Superseded to 1931318SM)

$4.49

$

In Stock, only 2 left!

0

0070

Snapper 80003583

WASHER, 1/4 x 27/32 OD
(Superseded to 703229)

Note: (Was 1960353)

$4.49

$

In Stock, Qty 7

0

0080

Snapper 1960518

PUSHNUT, 1/4 x 1/2 OD
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0090

Snapper 1920397

NUT, Hex Lock, ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1728963

SOLENOID, 12V, Trombetta, 5/16-24 Studs
(Superseded to 1755381YP)

$24.99

$

In Stock, Qty 20+

0

0110

Snapper 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 4 left!

0

0130

Snapper 1738381

SWITCH, Height of Cut
(Superseded to 1738381YP)

$38.99

$

In Stock, only 1 left!

0

0150

Snapper 1738015

SWITCH, Seat (NC)
(Superseded to 1738015YP)

$43.99

$

Usually ships in 2-12 days

0

0160

Snapper 1750464YP

KEY, Ignition (Blister Pac)

$22.99

$

Usually ships in 2-12 days

0

0170

Snapper 1738724

SENSOR, Electric, Height Of Cut
(Superseded to 1738724YP)

$64.99

$

Usually ships in 2-12 days

0

0180

Snapper 1738982

SWITCH, PTO
(Superseded to 1738982YP)

$43.99

$

In Stock, only 3 left!

0

0190

Snapper 1726556

SWITCH, RMO Module Only
(Superseded to 1726556SM)

$

$

Not available

0210

Snapper 1738983

SWITCH, Light
(Superseded to 1738983YP)

$39.99

$

Usually ships in 2-12 days

0

0230

Snapper 1728026A

SUPPORT, RMO Switch (Reverse Pedal)
(Superseded to 1728026ASM)

$13.99

$

Usually ships in 2-12 days

0

0240

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0250

Snapper 1931277

NUT, Hex Flange,Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0260

Snapper 1732006

SWITCH, Push Button, Brake Pedal (NO/NC, Gray)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0270

Snapper 7073090

POWER OUTLET, 12 Volt, DC
(Superseded to 7073090SM)

$23.99

$

Usually ships in 2-12 days

0

0280

Snapper 1716549

CABLE, Battery Positive, Red (#6 x 10" Long, 1/4" & 5/16" Ring Terminals)
(Superseded to 1752685YP)

$11.99

$

In Stock, only 1 left!

0

0280-10

* FUSE, 20 Amp

Note: Note* See your local hardware store for replacement fuses.

$

$

Not available

0290

Snapper 1721830

CABLE, Starter, Red (#6 x 25" Long, 1/4" & 3/8" Ring Terminals)
(Superseded to 1721830SM)

$19.99

$

Usually ships in 2-12 days

0

0300

Snapper 1713163

CABLE, Battery Negative, Black (#6 x 26" Long, 1/4" & 3/8" Ring Terminals)
(Superseded to 1713163SM)

$24.99

$

In Stock, only 2 left!

0

0310

Snapper 2816964

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

0320

Snapper 2860750

NUT, Hex Lock, KEPS, 5/16-24
(Superseded to 2860750SM)

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper 2823341

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

0340

Snapper 2821319

WASHER, 1/4 x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0350

Snapper 2816622

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

0360

Snapper 1677296

BOOT, Insulator, Battery Termnal, Red
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 10

0

0370

Snapper 2825094

TIE, Self Locking, 7-5/16 Long
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0390

Snapper 1732004

SWITCH, Push Button, NO, Black
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 20+

0

0410

Snapper 80002727

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

Note: (Was 1960294)

$4.49

$

In Stock, Qty 5

0

0420

Snapper 1726557SM

KEY, No Mow Module (Yellow)

$5.49

$

In Stock, Qty 20+

0

0430

Snapper 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0470

Snapper 1738985

GAGE, Electric, HOC
(Superseded to 1738985YP)

$55.99

$

Usually ships in 2-12 days

0

0530

Snapper 1739329

SCREW, PT Thread, 5mm Dia. x 12mm
(Superseded to 1739329YP)

$4.49

$

Usually ships in 2-12 days

0

0540

Snapper 1739369A

BRACKET, Instrument Panel
(Superseded to 1739369AYP)

$14.99

$

Usually ships in 2-12 days

0

0550

Snapper 1750212

METER, Service Indicator
(Superseded to 1750212YP)

$65.99

$

Usually ships in 2-12 days

0

0560

Snapper 1739307

BEZEL, Instrument Panel
(Superseded to 1739307YP)

$10.99

$

Usually ships in 2-12 days

0

0590

Snapper 1730268

CLIP, Hose, 1/2 Dia., Push In
(Superseded to 1730268SM)

$3.99

$

Usually ships in 2-12 days

0

0600

Snapper 1750296

FOAM STRIP
(Superseded to 1750296YP)

$3.99

$

Usually ships in 2-12 days

0

0630

Snapper 1737959

SWITCH, Ignition (Without key) (Key Blister Pack #1750464)
(Superseded to 7600215YP)

$64.99

$

In Stock, Qty 7

0

0650

Snapper 1751941

HARNESS, Headlight, LED Lights
(Superseded to 1751941YP)

$24.99

$

Usually ships in 2-12 days

0
