NXT 22875EFC (7800696) - Snapper 22" Walk-Behind Mower, 8.75hp Mower Deck Group Parts Diagram

22" Walk-Behind Mower, 8.75hp

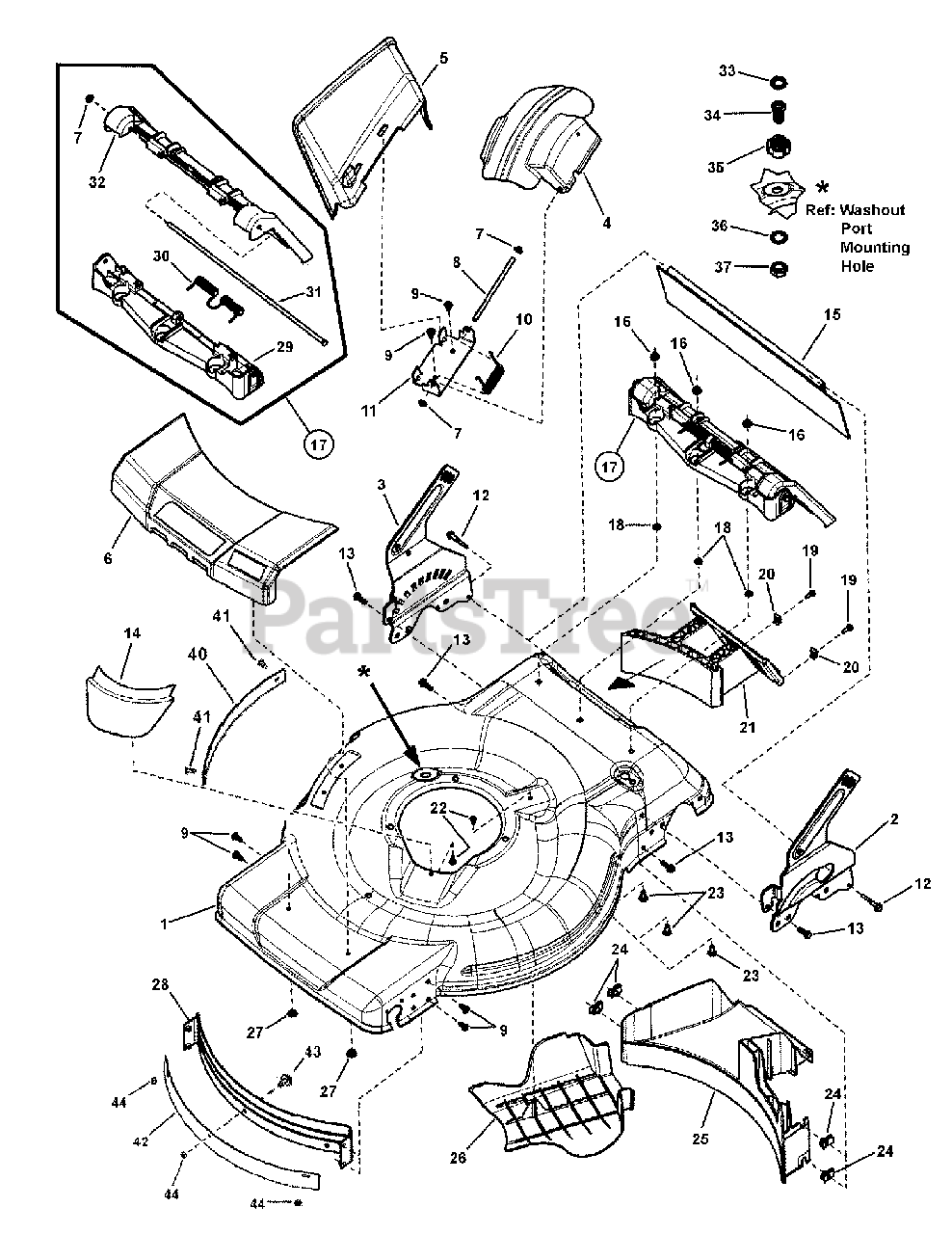

Mower Deck Group Parts Diagram

  • Title

1

Snapper 7600155D

DECK, 22", Rear Wheel Drive, Washout
(Superseded to 7600155YP)

Note: (Was 7301112D)

$208.99

$

Usually ships in 2-12 days

0

2

Snapper 7300885BH

BRACKET, Lower Handle, LH, 22 WBM
(Superseded to 7300885BHYP)

$26.99

$

Usually ships in 2-12 days

0

3

Snapper 7300915BH

BRACKET, Lower Handle, RH, 22 WBM
(Superseded to 7300915BHYP)

Note: (used on 7800580 & 7800696 models)

$26.99

$

Usually ships in 2-12 days

0

3

Snapper 7301141BH

BRACKET, Lower Handle, Elec HOC, RH
(Superseded to 7301141BHYP)

Note: (used on 7800752 & 7800782 models)

$19.99

$

Usually ships in 2-12 days

0

4

Snapper 7103298

COVER, Mulching
(Superseded to 7103298YP)

$

$

Not available

5

Snapper 7103299

CHUTE, Side Discharge, 22" WBM
(Superseded to 7103299YP)

$35.99

$

In Stock, only 1 left!

0

6

Snapper 7103295

COVER, Front, Push/Rear Wheel Drive
(Superseded to 7600191YP)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper 7091020

PUSHNUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7101067

ROD, Pivot
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

9

Snapper 7900067

SCREW, 1/4-20 x .550 Self-Tap (Torx)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 722507

SPRING, Torsion, Chute
(Superseded to 166X38MA)

$4.99

$

In Stock, only 2 left!

0

11

Snapper 7300855BM

BRACKET, Chute
(Superseded to 7300855BMYP)

$9.99

$

Usually ships in 2-12 days

0

12

Snapper 7900073

BOLT, 1/4-20 x 1-1/2" Shoulder
(Superseded to 7900073YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock, GR 5
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7103296

DEBRIS SHIELD, Front
(Superseded to 7103296YP)

$8.99

$

In Stock, only 2 left!

0

15

Snapper 7103323

GUARD, Rear 22"
(Superseded to 7103323YP)

$9.49

$

In Stock, only 1 left!

0

16

Snapper 722398

NUT, 1/4-20 Hex Flange Lock
(Superseded to 7001278MA)

$

$

Not available

17

Snapper 7501541

ASSEMBLY, Door, 22" WBM
(Superseded to 7501541YP)

$45.99

$

Usually ships in 2-12 days

0

18

Snapper 1960518

BOLT RETAINER, 1/4"
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Face Self-Tap, GR 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

20

Snapper 1960593

NUT, #10-24 Retainer Speed w/extrusion
(Superseded to 1960593SM)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7103453

PLUG, Mulching, 22" Deck
(Superseded to 7103453YP)

$32.99

$

In Stock, only 3 left!

0

22

Snapper 7900018

SCREW, Round Washer Head Torx, Hi-Lo
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

23

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR 5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7023295

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7103293

BAFFLE, Rear, Rear Wheel Drive WBM
(Superseded to 7103293YP)

$64.99

$

Usually ships in 2-12 days

0

26

Snapper 7104819

BELT COVER, Rear Drive
(Superseded to 7104819YP)

Note: (Was 7103294)

$34.99

$

Usually ships in 2-12 days

0

27

Snapper 7900079

NUT, 3/16" Push
(Superseded to 7900079YP)

$2.99

$

Usually ships in 2-12 days

0

28

Snapper 7301020

BAFFLE, Front
(Superseded to 7301020YP)

$50.99

$

In Stock, only 1 left!

0

29

Snapper 7103292

HINGE, Rear Discharge Door
(Superseded to 7103292YP)

$19.99

$

In Stock, only 1 left!

0

30

Snapper 7103309

SPRING, Torsion, Rear Door
(Superseded to 7103309YP)

$5.49

$

In Stock, only 1 left!

0

31

Snapper 7103322

ROD, Pivot, Rear Door
(Superseded to 7103322YP)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper 7501541

DOOR, Rear Discharge
(Superseded to 7501541YP)

Note: (Was 7103291)

$45.99

$

Usually ships in 2-12 days

0

33

Snapper 7103957

WASHER, Hose
(Superseded to 7103957YP)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 7103804

ADAPTOR, Washout Port, WBM
(Superseded to 7103804YP)

$6.49

$

Usually ships in 2-12 days

0

35

Snapper 7103919

COUPLING, Hose
(Superseded to 7103919YP)

$4.49

$

Usually ships in 2-12 days

0

36

Snapper 7091546

WASHER, 5/8" Internal Tooth Lock YZ
(Superseded to 1960547SM)

Note: (Was 7090880)

$4.49

$

In Stock, only 3 left!

0

37

Snapper 1960716

NUT, 5/8-11, NC-2B Black Hex Jam
(Superseded to 1960716SM)

$3.49

$

Usually ships in 2-12 days

0

40

Snapper 7301132YP

PLATE, Side Discharge Extension, Galv.

$

$

Currently unavailable

41

Snapper 7900077YP

POP RIVET, 3/16 X .063 - .125

$3.49

$

Usually ships in 2-12 days

0

42

Snapper 7301131YP

EXTENSION, Baffle, 22", EURO, Galv.

$

$

Currently unavailable

43

Snapper 7091286YP

SCREW, #10-24 X 1/2, Hex Washer Self-Tap, BZ

$4.99

$

In Stock, Qty 12

0

44

Snapper 7091267SM

NUT, 10-24, Hex Center Lock, BZ

$3.99

$

In Stock, Qty 6

0
