NXT 22875EFC (7800696) - Snapper 22" Walk-Behind Mower, 8.75hp Handle & Controls Group (MY 2010 & Euro) Parts Diagram

22" Walk-Behind Mower, 8.75hp

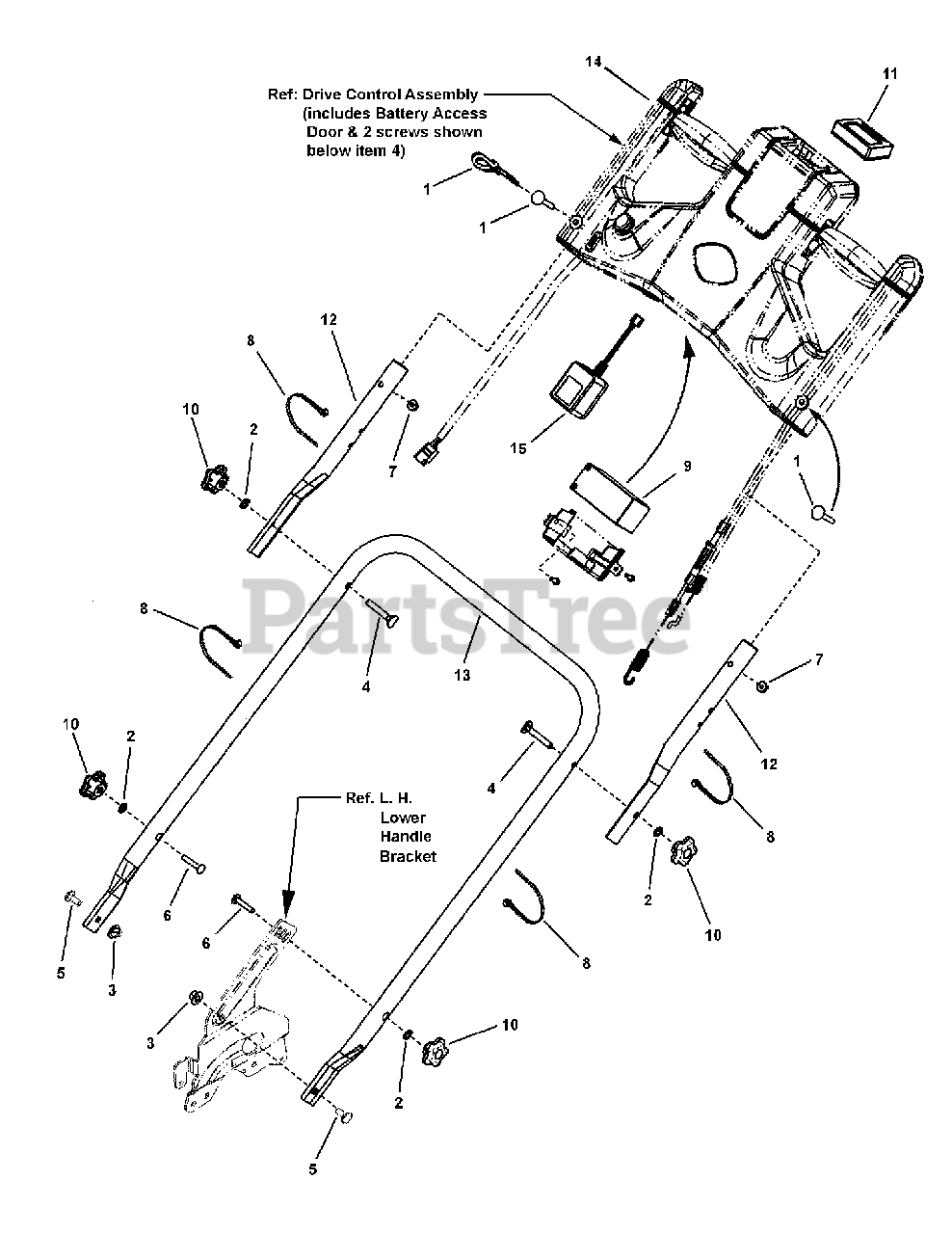

Handle & Controls Group (MY 2010 & Euro) Parts Diagram

  • Title

1

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Round Head Square Neck, GR 2, YZ
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

1

Snapper 7101410

GUIDE, Rope, 1/4-20 x 1.8"
(Superseded to 7101410YP)

Note: (Euro Model 7800722)

$6.49

$

In Stock, only 1 left!

0

2

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7090951

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

4

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 15

0

5

Snapper 723873

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5, YZ
(Superseded to 703225)

Note: (Was 1931333)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 1931338

BOLT, 5/16-18 x 1-3/4" Round Head Square Neck Carriage
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

7

Snapper 2860694

NUT, 1/4-20 Hex Flange (Esna), YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7024649

WIRE TIE, 11 Inch Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7102931

BATTERY, 1.3A/Hr
(Superseded to 707495)

$64.99

$

In Stock, only 2 left!

0

10

Snapper 7102990

KNOB, Handle, 5-Prong (5/16-18 internal threads)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7103774

METER, Service Indicator
(Superseded to 7103774YP)

$56.99

$

Usually ships in 2-12 days

0

12

Snapper 7300649

HANDLE, Connecting, 21"/22" WBM
(Superseded to 7300649BHYP)

Note: (Euro Model 7800722)

$26.99

$

Usually ships in 2-12 days

0

12

Snapper 7300649BH

HANDLE, Connecting, 21"/22" WBM
(Superseded to 7300649BHYP)

Note: (used on all except Euro Model 7800722)

$26.99

$

Usually ships in 2-12 days

0

13

Snapper 7301189

HANDLE, Lower, WBM, RD
(Superseded to 7301189BHYP)

Note: (Euro Model 7800722)

$176.99

$

Usually ships in 2-12 days

0

13

Snapper 7301189BH

HANDLE, Lower, WBM, RD
(Superseded to 7301189BHYP)

Note: (used on all except Euro Model 7800722)

$176.99

$

Usually ships in 2-12 days

0

14

Snapper 7501300

ASSEMBLY, Drive Control (MY 2010)
(Superseded to 7502826YP)

$216.99

$

Usually ships in 2-12 days

0

15

Snapper 7103988

CHARGER, Battery, 120V AC, Output 14V DC, 260mA
(Superseded to 770625)

$59.99

$

In Stock, only 2 left!

0

15

Snapper 7103119

CHARGER, Battery, 230V AC, 50 Hz, Output 12V DC, 750mA (Euro)
(Superseded to 7103119YP)

Note: (Euro Model 7800722)

$42.99

$

In Stock, only 2 left!
