NXT 22875EEFC (7800782) - Snapper 22" Walk-Behind Mower, 8.75hp Wheels Group Parts Diagram

22" Walk-Behind Mower, 8.75hp

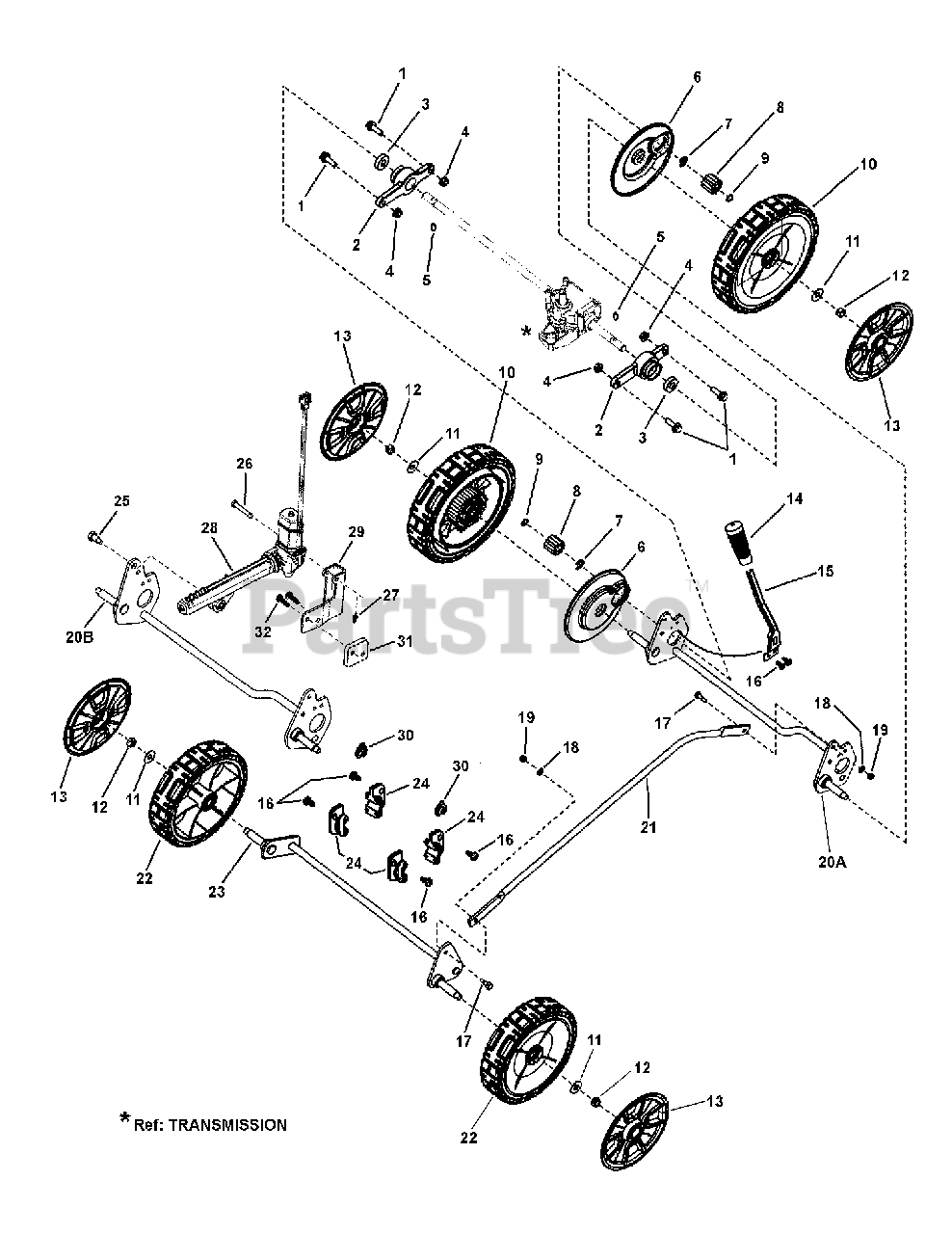

Wheels Group Parts Diagram

  • Title

1

Snapper 7091591

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5, YZ
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

2

Snapper 7103290

HOLDER, Bearing, Rear Wheel Drive
(Superseded to 7103290YP)

$13.99

$

Usually ships in 2-12 days

0

3

Snapper 7078243

BALL BEARING, Axle
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

4

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

Note: (Was 7091601)

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7100861

PIN, Axle
(Superseded to 7100861YP)

$4.99

$

In Stock, only 1 left!

0

6

Snapper 7101367

SHIELD, Dust, 21" WBM, RD
(Superseded to 7101367YP)

$7.49

$

In Stock, only 2 left!

0

7

Snapper 7014341

RETAINING RING, 3.92 EXT. (Waldes #5133-50 or equiv.)
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

8

Snapper 7100820

GEAR, Pinion
(Superseded to 7100820YP)

$

$

Not available

9

Snapper 7027999

RETAINING RING, .452-.463 ID (Waldes #5100-50 or equiv.)
(Superseded to 7027999YP)

$4.49

$

In Stock, only 4 left!

0

10

Snapper 7500539

ASSEMBLY, Wheel, 9 x 2, Snapper Tread w/Ext Gear
(Superseded to 7600174YP)

Note: (includes ball bearings #7101380, gear #7100914, & screws #7091196)

$56.99

$

Usually ships in 2-12 days

0

11

Snapper 722604

WASHER, 1" OD x .387 ID, Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

12

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

13

Snapper 7102507

HUBCAP, 8" & 9" Wheel Spoked-Snapper Cool Gray
(Superseded to 7102507YP)

$3.99

$

In Stock, Qty 15

0

14

Snapper 724887

GRIP, Height-Of-Cut
(Superseded to 671297MA)

$6.49

$

In Stock, only 1 left!

0

15

Snapper 7103289

LEVER, Spring, Height-Of-Cut
(Superseded to 7103289YP)

$11.99

$

In Stock, only 2 left!

0

16

Snapper 7900067

SCREW, 1/4-20 x .550 Pan Head Self-Tap (Torx)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7101774

SHOULDER BOLT, #10-24
(Superseded to 7101774YP)

$8.49

$

In Stock, only 2 left!

0

18

Snapper 7091552

WASHER, .219 x .500 x .049 Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 16

0

19

Snapper 7091290

NUT, #10-24 UNC-2B Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

20A

Snapper 7400259

WELDMENT, Rear Crossbar, RWD
(Superseded to 7400259YP)

Note: (used on 7800722 & 7800580 models)

$152.99

$

In Stock, only 1 left!

0

20B

Snapper 7400290

WELDMENT, Rear Crossbar, EHOC, RWD
(Superseded to 7400290YP)

Note: (used on 7800752 & 7800782 models)

$43.99

$

Usually ships in 2-12 days

0

21

Snapper 7103306D

ROD, Lifter Link, WBM
(Superseded to 7103306DYP)

$40.99

$

Usually ships in 2-12 days

0

22

Snapper 7500540

ASSEMBLY, Wheel, 8 x 2 Idle, Snapper Tread Snapper Charcoal Gray
(Superseded to 7500540YP)

Note: (includes two ball bearings, p/n 7101380)

$40.99

$

In Stock, only 2 left!

0

23

Snapper 7400306

WELDMENT, Front Axle
(Superseded to 7400306YP)

$60.99

$

In Stock, only 1 left!

0

24

Snapper 7104518

BUSHING, Bearing, RWD
(Superseded to 7104518YP)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7900078

SHOULDER BOLT, 3/8 Dia. (1/4-20 threads)
(Superseded to 7900078YP)

Note: (used on 7800752 & 7800782 models)

$20.99

$

Usually ships in 2-12 days

0

26

Snapper 7023914

PIN, 1/4 x 1.25" Clevis
(Superseded to 7023914YP)

Note: (used on 7800752 & 7800782 models)

$

$

Not available

27

Snapper 7023590

PIN, 1/4" Cotter, Self-Locking
(Superseded to 7023590SM)

Note: (used on 7800752 & 7800782 models)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7104245BH

MOTOR, Electric, HOC

Note: (used on 7800752 & 7800782 models)

$

$

Currently unavailable

29

Snapper 7301178

BRACKET, Electric Motor

Note: (used on 7800752 & 7800782 models)

$

$

Currently unavailable

30

Snapper 7104525

SPACER, Shaft, 1/2"
(Superseded to 7104525YP)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 7301212

PLATE, Spacer, EHOC

$

$

Currently unavailable

32

Snapper 1960671

SCREW, 1/4-20 x 3/4" Pan Head Self-Tap (Torx)
(Superseded to 1960671SM)

$4.99

$

Usually ships in 2-12 days

0
