NXT 22875EEFC (7800782) - Snapper 22" Walk-Behind Mower, 8.75hp Drive Control Assembly, EHOC (MY 2011) Parts Diagram

22" Walk-Behind Mower, 8.75hp

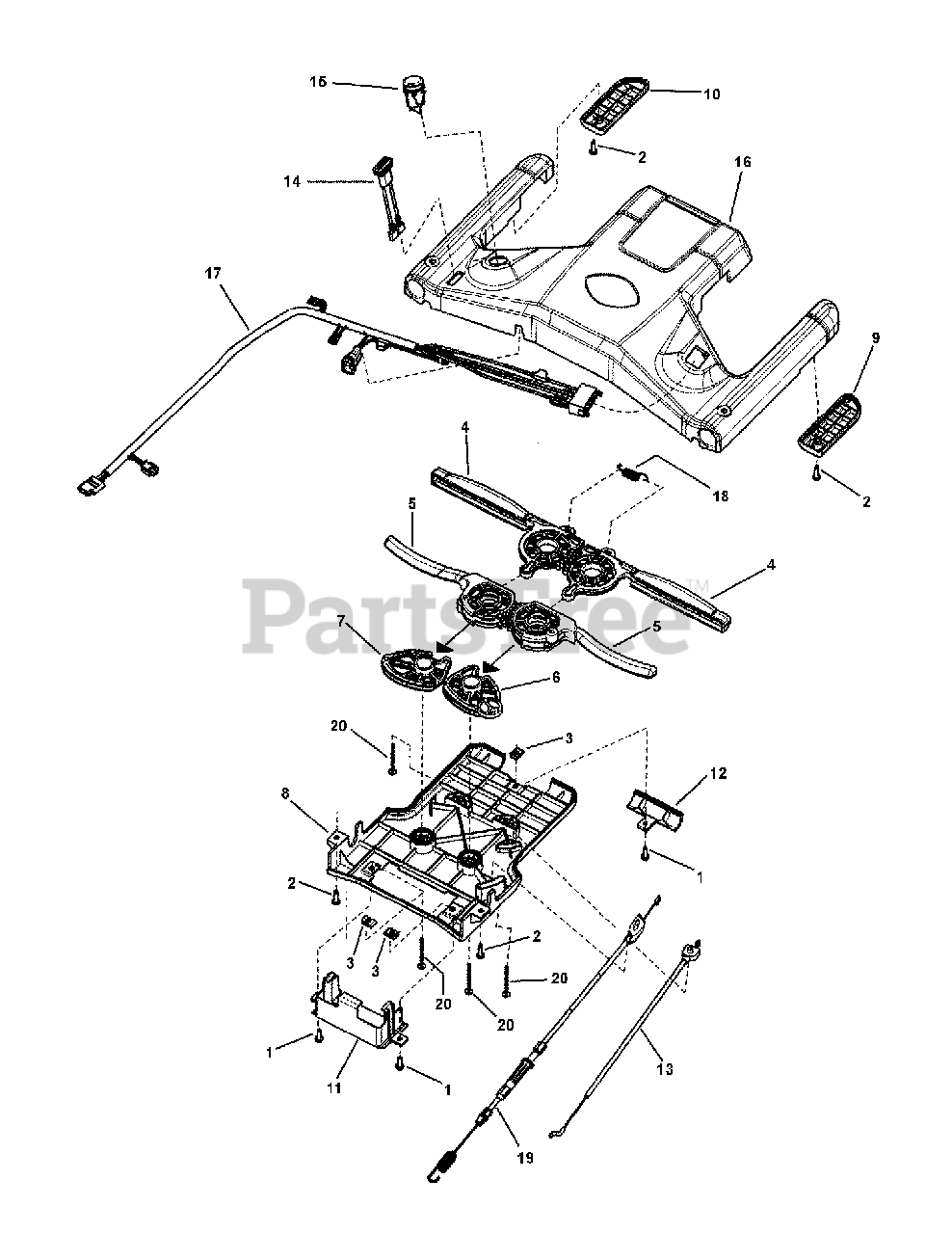

Drive Control Assembly, EHOC (MY 2011) Parts Diagram

  • Title
1

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap, GR 5 BZ
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

2

Snapper 7091195

SCREW, #10-16 x 3/4" Pan Head Self-Tap Combo, BZ
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

3

Snapper 1960593

NUT, #10-24 Speed Retainer w/extrusion
(Superseded to 1960593SM)

$4.99

$

Usually ships in 2-12 days

0

4

Snapper 7102803

LEVER, Drive Control
(Superseded to 7102803YP)

$17.99

$

Usually ships in 2-12 days

0

5

Snapper 7102804

LEVER, OPC, Control
(Superseded to 7102804YP)

$15.99

$

Usually ships in 2-12 days

0

6

Snapper 7102805

CAM, Drive, LH
(Superseded to 7102805YP)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 7102806

CAM, Drive, RH
(Superseded to 7102806YP)

$5.49

$

Usually ships in 2-12 days

0

8

Snapper 7103325

CONTROL PANEL, Bottom, MY Mower
(Superseded to 7103325YP)

$13.99

$

Usually ships in 2-12 days

0

9

Snapper 7103326

PANEL, Bottom Control, WBM, RH

$

$

Not available

10

Snapper 7103327

PANEL, Bottom Control, WBM, LH

$

$

Not available

11

Snapper 7103345

ACCESS DOOR, Battery Control Panel, WBM
(Superseded to 7103345YP)

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 7103456

PANEL, Access, Maintenance Reminder
(Superseded to 7103456YP)

$6.99

$

Usually ships in 2-12 days

0

13

Snapper 7103769

CABLE, OPC, NXT
(Superseded to 7104752YP)

$

$

Not available

14

Snapper 7103930

HOUSING, Bridge Disconnect
(Superseded to 7103930YP)

$14.99

$

Usually ships in 2-12 days

0

15

Snapper 7104001

SWITCH, Push Button Start
(Superseded to 7104001YP)

$14.99

$

Usually ships in 2-12 days

0

--

Snapper 7103931

KEY, Bridge Disconnect (Not Shown)
(Superseded to 7103931YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7104519

CONTROL PANEL, Top

$

$

Currently unavailable

17

Snapper 7104523

HARNESS, Electric Start, NXT, w/E-HOC
(Superseded to 7104523YP)

$50.99

$

Usually ships in 2-12 days

0

18

Snapper 7104689

SPRING, Tension, Drive Control
(Superseded to 7104689YP)

$5.49

$

In Stock, only 1 left!

0

19

Snapper 7105092

CABLE, Control, NXT
(Superseded to 7103770YP)

Note: (Was 7103770)

$

$

Not available

20

Snapper 7900081

SCREW, #10-16 x 2" Hi-Lo Cross Pan Head
(Superseded to 7900081YP)

$3.49

$

Usually ships in 2-12 days

0
