NXT 22875E (7800839) - Snapper 22" Walk-Behind Mower, 8.75hp Engine Group Parts Diagram

22" Walk-Behind Mower, 8.75hp

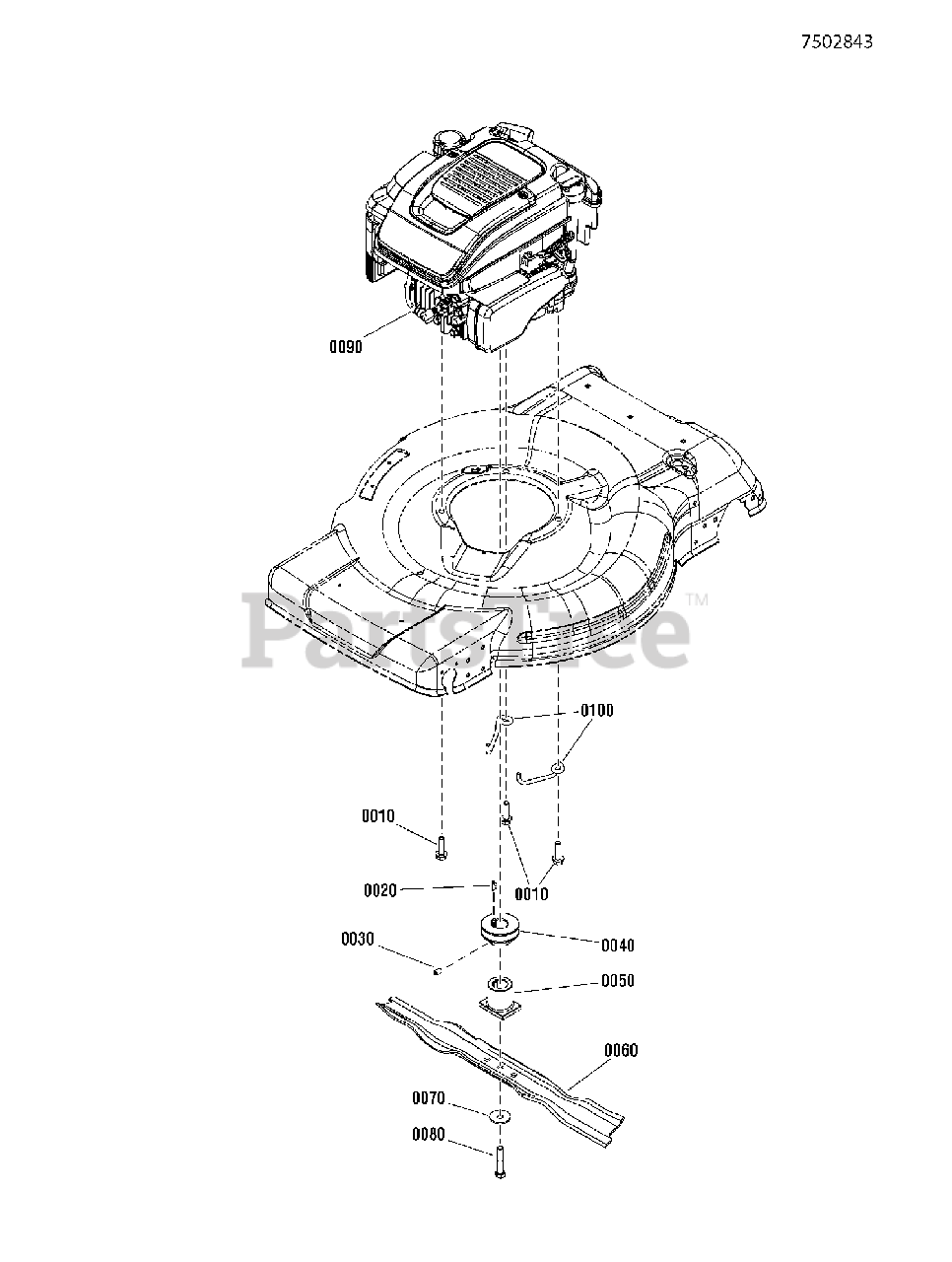

Engine Group Parts Diagram

  • Title
0010

Snapper 7900072

SCREW, 3/8-16 x 1-1/4" Hex Washer Self-Tap
(Superseded to 7900072YP)

$3.99

$

Usually ships in 2-12 days

0

0020

Snapper 7091214

KEY, #HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

0030

Snapper 7092086

SET SCREW, 5/16-18 x 1/2" Hex Recess
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

0040

Snapper 7105122

PULLEY, PM Engine
(Superseded to 7105122YP)

$40.99

$

In Stock, only 1 left!

0

0050

Snapper 7101414

BLADE HUB, Rear Drive, 2 Position
(Superseded to 7101414YP)

$16.99

$

In Stock, only 1 left!

0

0060

Snapper 7103288BZ

BLADE, 22" Wave, Steel Deck
(Superseded to 7103288YP)

$29.99

$

In Stock, Qty 8

0

0070

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

0080

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 124S07-2116-F1

* ENGINE, W-14, 875 Series (W/O Rewind Starter)

$

$

Currently unavailable

0090

Snapper 121S07-0141-F1

* ENGINE, W-14, 875 Series (With Rewind Starter)

$

$

Currently unavailable

0100

Snapper 7103517

BELT GUIDE, Engine
(Superseded to 7103517YP)

$3.49

$

Usually ships in 2-12 days

0
