NX-90V (2691527-02) - Snapper 21" Walk-Behind Mower Drive Group Parts Diagram

21" Walk-Behind Mower

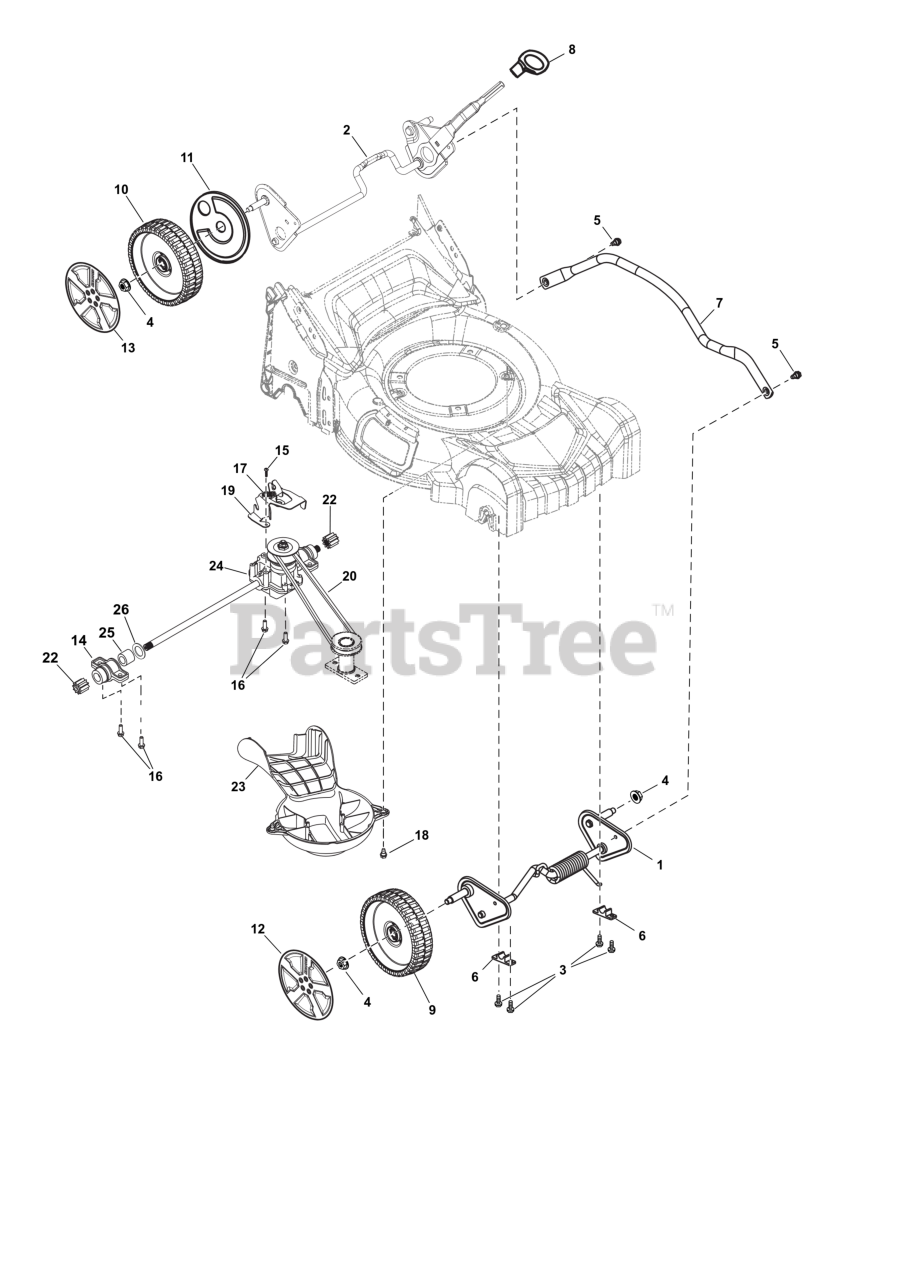

Drive Group Parts Diagram

  • Title

1

Snapper 704819

AXLE, Front

$

$

Currently unavailable

2

Snapper 704818

AXLE, Rear

$

$

Currently unavailable

3

Snapper 7091081SM

HWST, 1/4-15X3/4 BZ

$4.49

$

In Stock, Qty 12

0

4

Snapper 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

5

Snapper 703714

SCREW, 1/4-20 x 1/2

$

$

Currently unavailable

6

Snapper 703524

BUSHING, Lock

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 704707

TUBE

$

$

Currently unavailable

8

Snapper 703648

KNOB, Black

$

$

Currently unavailable

9

Snapper 704977

WHEEL, 200 x 49

$

$

Currently unavailable

10

Snapper 704807

WHEEL, Drive

$

$

Currently unavailable

11

Snapper 703503

DUST COVER, Wheel

$18.99

$

Usually ships in 2-12 days

0

12

Snapper 704751

HUBCAP, Front

$

$

Currently unavailable

13

Snapper 704750

HUBCAP, Rear

$

$

Currently unavailable

14

Snapper 703469

BEARING ASSEMBLY

$11.99

$

In Stock, only 1 left!

0

15

Snapper 703479

SCREW, Hex Washer Head, .159 x .43

$7.99

$

In Stock, only 2 left!

0

16

Snapper 7900023SM

SCREW, 1/4-15 x 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, only 3 left!

0

17

Snapper 703516

SPRING

$7.99

$

Usually ships in 2-12 days

0

18

Snapper 703714

SCREW, 1/4-20 x 1/2

$

$

Currently unavailable

19

Snapper 704694

BRACKET

$

$

Currently unavailable

20

Snapper 706886

BELT

$

$

Currently unavailable

22

Snapper 700148

GEAR, 9 Tooth
(Superseded to 880615YP)

$4.99

$

Usually ships in 2-12 days

0

23

Snapper 84007727

COVER, Rear

$

$

Currently unavailable

24

Snapper 84007726

TRANSMISSION

$

$

Currently unavailable

25

Snapper 770699

SPACER

$

$

Currently unavailable

26

Snapper 706888

WASHER

$9.99

$

Usually ships in 2-12 days

0
