NX-80S (2691793-01) - Snapper 18" Walk-Behind Mower Deck Group Parts Diagram

18" Walk-Behind Mower

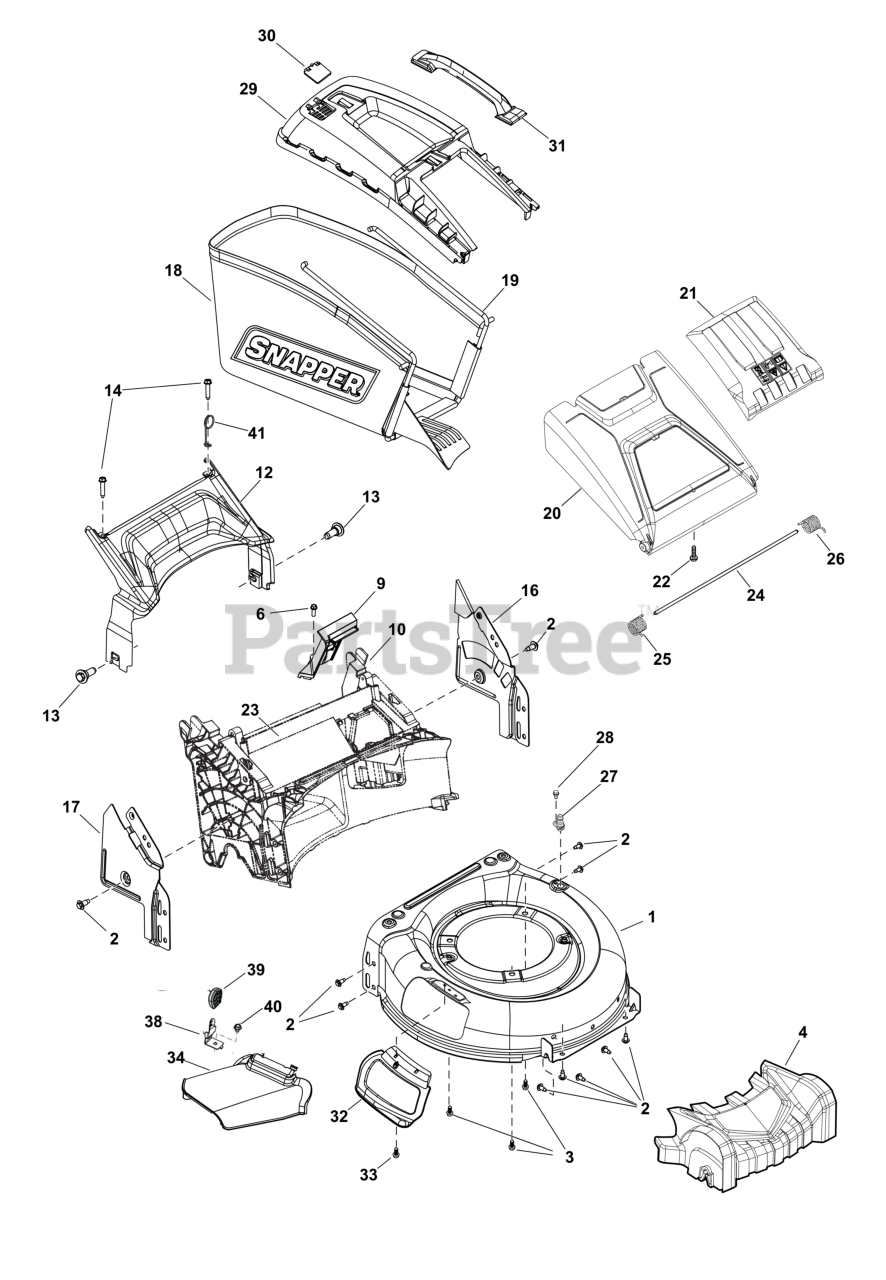

Deck Group Parts Diagram

  • Title

1

DECK

Note: (Not Servicable)

$

$

Not available

2

Briggs & Stratton 84006869

SCREW, 8mm

$

$

Currently unavailable

3

Briggs & Stratton 707904

SCREW, Engine Mounting, 3/8-16 x 1

$15.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 704749

FRONT COVER, Deck

$

$

Currently unavailable

6

Briggs & Stratton 7091081SM

HWST, 1/4-15X3/4 BZ

$4.49

$

In Stock, Qty 12

0

9

Briggs & Stratton 704760

COVER, Rear

$

$

Currently unavailable

10

Briggs & Stratton 704759

COVER, Front

Note: From 01/09/2020 To 05/21/2020

$

$

Currently unavailable

12

Briggs & Stratton 704743

COVER, Rear

$

$

Currently unavailable

13

Briggs & Stratton 703523

SCREW, 5/16-14

$6.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 704789

SCREW, 1/4-15 x 1-1/4

$

$

Currently unavailable

16

Briggs & Stratton 84002578

SUPPORT, Handle, LH

$

$

Currently unavailable

17

Briggs & Stratton 84002579

SUPPORT, Handle, RH

$

$

Currently unavailable

18

Briggs & Stratton 704798

BAG

$

$

Currently unavailable

19

Briggs & Stratton 84002586

FRAME

$

$

Currently unavailable

20

Briggs & Stratton 704741

REAR FLAP

$

$

Currently unavailable

21

Briggs & Stratton 704746

COVER, Bag

$

$

Currently unavailable

22

Briggs & Stratton 704786

SCREW #10-16 x 3/4

$

$

Currently unavailable

23

Briggs & Stratton 704767

GUIDE, Rear

$

$

Currently unavailable

24

Briggs & Stratton 704717

ROD

$

$

Currently unavailable

25

Briggs & Stratton 704735

TORSION SPRING, RH

$11.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 704734

TORSION SPRING, LH

$11.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 703502

NOZZLE, Wash

$5.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 703714

SCREW, 1/4-20 x 1/2

$

$

Currently unavailable

29

Briggs & Stratton 704742

COVER, Bag

$

$

Currently unavailable

30

Briggs & Stratton 703684

INDICATOR, Full Bag

$

$

Currently unavailable

31

Briggs & Stratton 704740

HANDLE

$

$

Currently unavailable

32

Briggs & Stratton 84002577

MULCHING FLAP

$

$

Currently unavailable

33

Briggs & Stratton 84002592

CAPSCREW, 1/4-20 X 1/2

$

$

Currently unavailable

34

Briggs & Stratton 704753

COVER, Side

$

$

Currently unavailable

38

Briggs & Stratton 84002594

LEVER, Adjustment

$

$

Currently unavailable

39

Briggs & Stratton 703490

KNOB, Adjustment Lever

$9.49

$

In Stock, Qty 8

0

40

Briggs & Stratton 84002593

CAPSCREW, 1/4-20 X 3/8

$12.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 84002596

GUIDE, Cable

$

$

Currently unavailable
