NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

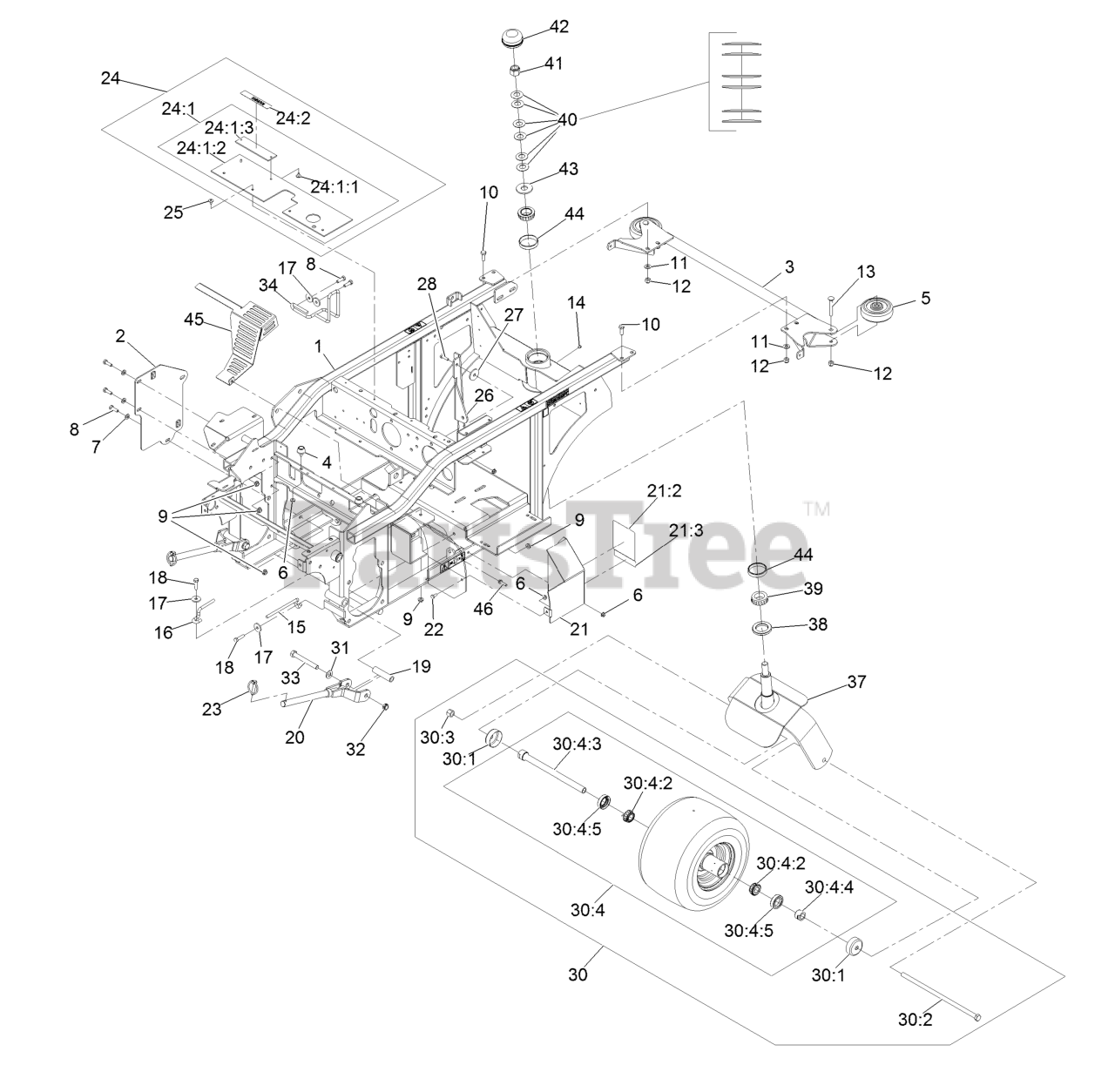

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-7482

Frame ASM

$2474.99

$

Usually ships in 3-6 days

0

2

Exmark 116-7396-03

Plate-Support

$45.99

$

Usually ships in 3-6 days

0

3

Exmark 109-0925-03

Bumper-Rear

$288.99

$

Usually ships in 3-6 days

0

4

Exmark 109-2365

Bumper-Rubber

$5.49

$

In Stock, only 3 left!

0

5

Exmark 103-5408

Roller-Bumper

$22.99

$

Usually ships in 3-6 days

0

6

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 6

0

7

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

8

Exmark 322-5

Screw-HH 5/16-18 X 1

$0.99

$

In Stock, Qty 20+

0

9

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

10

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 16

0

12

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 8

0

13

Exmark 3231-31

Bolt-Carriage 3/8-16 X 2 1/2

$6.99

$

In Stock, Qty 20+

0

14

Exmark 1-811010

Plug

$5.49

$

In Stock, Qty 11

0

15

Exmark 103-8333

Guide-Belt

$11.99

$

Usually ships in 3-6 days

0

16

Exmark 103-8349

Guide-Belt

$10.99

$

Usually ships in 3-6 days

0

17

Exmark 1-613235

Washer

$1.99

$

In Stock, Qty 5

0

18

Exmark 322-6

Screw-HH 5/16-18 X 1 1/4

$3.99

$

In Stock, Qty 20+

0

19

Exmark 1-633060

Spacer-Wheel, Short

$14.99

$

Usually ships in 3-6 days

0

20

Exmark 103-6596-03

Rod-Push

$123.99

$

Usually ships in 3-6 days

0

21

Exmark 130-2879

Drive Shield ASM

$86.99

$

Usually ships in 3-6 days

0

21:2

Exmark 116-8941

Decal-Belt Routing

$6.99

$

Usually ships in 3-6 days

0

21:3

Exmark 98-1977

Decal-Warning

$11.99

$

Usually ships in 3-6 days

0

22

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

23

Exmark 103-4155

Pin-Lynch

$6.49

$

Usually ships in 3-6 days

0

24

Exmark 103-9476

Lift Shield ASM

$101.99

$

Usually ships in 3-6 days

0

24:1

Shield-Lift

$

$

Not available

24:1:1

Exmark 1-803035

Rivet 3/16 X 1/4

$1.49

$

In Stock, Qty 10

0

24:1:2

Exmark 103-8819

Flap-Guard
(Superseded to 103-9476)

$101.99

$

Usually ships in 3-6 days

0

24:1:3

Exmark 103-9114-03

Plate-Decal

$6.49

$

Usually ships in 3-6 days

0

24:2

Exmark 98-1977

Decal-Warning

$11.99

$

Usually ships in 3-6 days

0

25

Exmark 1-803035

Rivet 3/16 X 1/4

$1.49

$

In Stock, Qty 10

0

26

Exmark 109-5874-03

Brace-PTO

$50.99

$

Usually ships in 3-6 days

0

27

Exmark 1-213069

Washer

$2.99

$

In Stock, only 2 left!

0

28

Exmark 321-6

Screw-HH 1/4-20 X 1

$0.99

$

In Stock, Qty 20+

0

30

Exmark 103-9494

Asm, Rear Caster Wheel W/Axle

$483.99

$

In Stock, only 1 left!

0

30:1

Exmark 103-2768

Guard-Seal

$3.99

$

In Stock, Qty 20+

0

30:2

Exmark 103-7738

Screw-HH 1/2-13 X 13

$23.99

$

Usually ships in 3-6 days

0

30:3

Exmark 3296-23

Nut-Nyloc 1/2-13

$1.49

$

In Stock, Qty 20+

0

30:4

Exmark 103-5305

Asm, Wheel Tire And Brg 13X8.00-6 Sp

$450.99

$

Usually ships in 3-6 days

0

30:4:2

Exmark 1-633585

Bearing-Cone Tapered Roller

$21.99

$

In Stock, Qty 12

0

30:4:3

Exmark 126-5362

Axle Caster ASM

$29.99

$

Usually ships in 3-6 days

0

30:4:4

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, Qty 12

0

30:4:5

Exmark 103-0063

Seal-Double Lip

$8.99

$

In Stock, Qty 6

0

31

Exmark 3256-26

Washer-1/2 SAE

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3296-45

Nut-Nyloc 1/2-13 Thin

$4.49

$

In Stock, Qty 20+

0

33

Exmark 325-17

Screw-HH 1/2-13 X 4

$5.99

$

In Stock, only 1 left!

0

34

Exmark 116-8323

Guide-Belt
(Superseded to 135-5784)

$43.99

$

In Stock, only 1 left!

0

37

Exmark 103-3351-03

Fork-Rear Caster

$410.99

$

Usually ships in 3-6 days

0

38

Exmark 103-9027

Seal-Grease

$13.99

$

Usually ships in 3-6 days

0

39

Exmark 103-9028

Cone-Bearing Taper Roller

$29.99

$

In Stock, only 2 left!

0

40

Exmark 1-633508

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

41

Exmark 3296-51

Nut-Nyloc 3/4-10

$6.49

$

In Stock, Qty 10

0

42

Exmark 126-9882

Cap-Grease

$7.99

$

Usually ships in 3-6 days

0

43

Exmark 3256-8

Washer

$3.99

$

In Stock, Qty 15

0

44

Exmark 103-9029

Cup-Bearing Tapered Roller

$10.99

$

In Stock, Qty 7

0

45

Exmark 116-7272-03

Shield-Heat

$45.99

$

Usually ships in 3-6 days

0

46

Exmark 120-4654

Screw-HHF

$5.99

$

Usually ships in 3-6 days

0
