NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Hydraulic Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

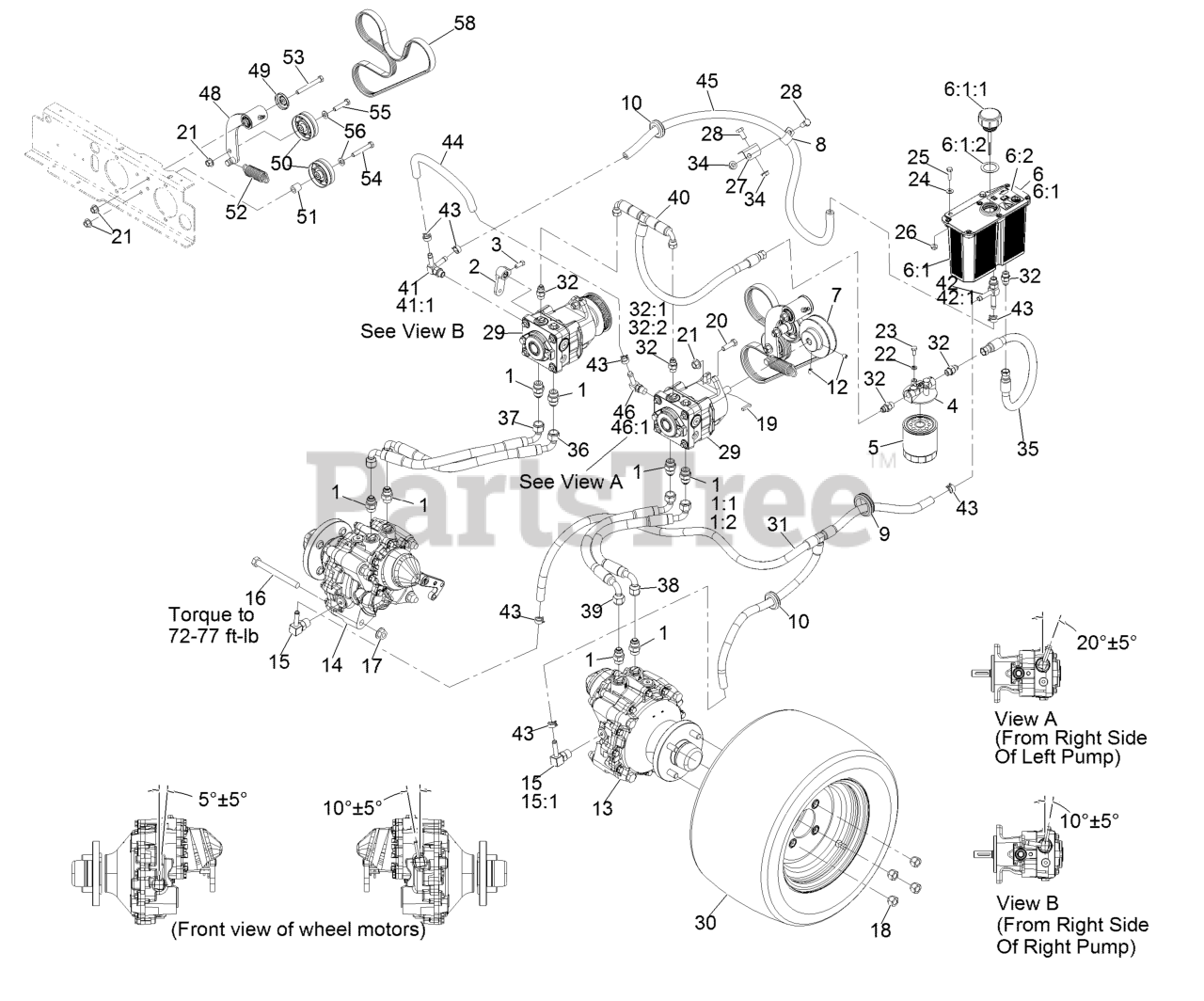

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 1-603990

Adapter-Straight

$18.99

$

In Stock, Qty 12

0

1:1

Exmark 1-603920

O-Ring-SAE #8

$3.99

$

In Stock, Qty 20+

0

1:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-632208

Arm-Control, Pump

$28.99

$

In Stock, Qty 20+

0

3

Exmark 120-6474

Screw-Set, SQH 5/16-18 X 3/4

$2.99

$

In Stock, Qty 11

0

4

Exmark 104-7836

Filter-Head

$18.99

$

In Stock, only 3 left!

0

5

Exmark 109-4180

Element, Oil Filter

$49.99

$

In Stock, Qty 13

0

6

Exmark 116-9274

Reservoir ASM

$383.99

$

Usually ships in 3-6 days

0

6:1

Reservoir-HYD

$

$

Not available

6:1:1

Exmark 116-9273

Reservoir Cap ASM

$27.99

$

Usually ships in 3-6 days

0

6:1:2

Exmark 103-1949

Gasket-Cap
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

6:2

Exmark 115-4212

Decal-Warning

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 103-4246

Sheave

$107.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633396

Clip-Loom 5/8

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 103-7706

Grommet

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 1-543286

Grommet

$12.99

$

Usually ships in 3-6 days

0

12

Exmark 1-803310

Setscrew-5/16-18 X 3/8

$2.99

$

In Stock, only 1 left!

0

13

Exmark 116-7401

Motor-HYD, LH

$1620.99

$

Usually ships in 3-6 days

0

14

Exmark 116-7402

Motor-HYD, RH

$1620.99

$

Usually ships in 3-6 days

0

15

Exmark 354-134

Fitting-HYD, 90 DEG

$70.99

$

Usually ships in 3-6 days

0

15:1

Exmark 237-79

O-Ring

$5.99

$

In Stock, Qty 7

0

16

Exmark 325-19

Screw-HH 1/2-13 X 5

$8.49

$

In Stock, only 4 left!

0

17

Exmark 32128-49

Nut-Whizlock 1/2-13

$1.99

$

In Stock, Qty 20+

0

18

Exmark 242-50

Nut-Lug 1/2-20
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

19

Exmark 1-807272

Key-5Mm X 5Mm X 25Mm

$5.99

$

In Stock, Qty 9

0

20

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

21

Exmark 32128-43

Nut-Whizlock 3/8-16

$1.49

$

In Stock, only 4 left!

0

22

Exmark 1-805004

Washer-Lock 1/4 Heavy

$1.49

$

In Stock, Qty 14

0

23

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

24

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

25

Exmark 321-6

Screw-HH 1/4-20 X 1

$0.99

$

In Stock, Qty 20+

0

26

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

27

Exmark 103-8631

Bracket-Clamp

$12.99

$

Usually ships in 3-6 days

0

28

Exmark 323-4

Screw-HH 3/8-16 X 3/4

$3.99

$

In Stock, Qty 20+

0

29

Exmark 116-7836

12Cc Hydro Pump ASM

$973.99

$

Usually ships in 3-6 days

0

30

Exmark 116-5634

Tire And Wheel ASM

$426.99

$

Usually ships in 3-6 days

0

31

Exmark 116-7831

Hydraulic Hose ASM

$53.99

$

Usually ships in 3-6 days

0

32

Exmark 103-2156

Adapter-Straight

$42.99

$

In Stock, only 3 left!

0

32:1

Exmark 1-603921

O-Ring-SAE #6
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

32:2

Exmark 103-1020

O-Ring-37 Flare #6

$1.49

$

Usually ships in 3-6 days

0

34

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

35

Exmark 126-4400

Hydraulic Hose ASM

$36.99

$

Usually ships in 3-6 days

0

36

Exmark 116-7827

Hydraulic Hose ASM

$83.99

$

Usually ships in 3-6 days

0

37

Exmark 116-7828

Hydraulic Hose ASM

$83.99

$

Usually ships in 3-6 days

0

38

Exmark 116-7829

Hydraulic Hose ASM

$83.99

$

Usually ships in 3-6 days

0

39

Exmark 116-7830

Hydraulic Hose ASM

$83.99

$

Usually ships in 3-6 days

0

40

Exmark 109-1264

Hydraulic Hose ASM

$93.99

$

Usually ships in 3-6 days

0

41

Exmark 103-5469

Adapter-Tee Special

$88.99

$

Usually ships in 3-6 days

0

41:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

42

Exmark 103-1828

Adapter-Running Tee

$46.99

$

Usually ships in 3-6 days

0

42:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

43

Exmark 103-1988

Clamp-Hose 11/16

$1.49

$

In Stock, Qty 20+

0

44

Exmark 103-5452

Hose-HYD

$9.49

$

Usually ships in 3-6 days

0

45

Exmark 103-5477

Hose-HYD

$33.99

$

Usually ships in 3-6 days

0

46

Exmark 100-4887

Fitting-Elbow, 90

$29.99

$

In Stock, only 1 left!

0

46:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

48

Exmark 103-7349

Short Idler ASM

$183.99

$

Usually ships in 3-6 days

0

49

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 20+

0

50

Exmark 116-6361

Pulley

$59.99

$

In Stock, Qty 18

0

51

Exmark 106-5574

Spacer-Mounting, Steering

$12.99

$

Usually ships in 3-6 days

0

52

Exmark 1-653331

Spring

$12.99

$

In Stock, only 3 left!

0

53

Exmark 323-20

Screw-HH 3/8-16 X 3-1/4

$3.99

$

In Stock, Qty 12

0

54

Exmark 323-12

Screw-HH 3/8-16 X 2 1/2

$2.99

$

In Stock, Qty 20+

0

55

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

56

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

58

Exmark 103-4244

Belt
(Superseded to 103-4244-SL)

$47.99

$

In Stock, Qty 11

0
