NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Hopper Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

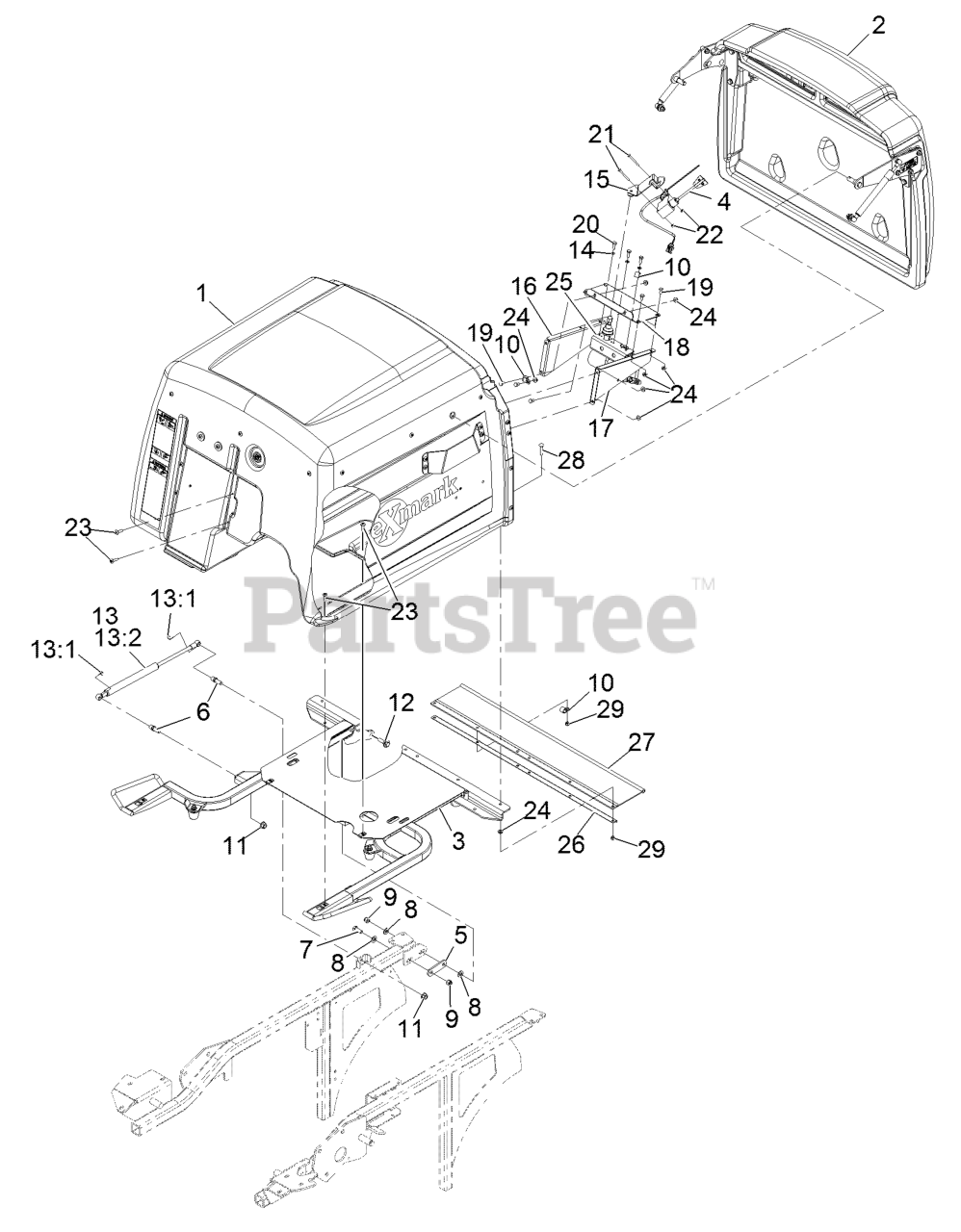

Hopper Assembly Parts Diagram

  • Title
1

Exmark 103-9457

Asm, Hopper

$3234.99

$

Usually ships in 3-6 days

0

2

Exmark 103-9456

Asm, Door Hopper

$809.99

$

Usually ships in 3-6 days

0

3

Exmark 109-4086

Hopper Frame ASM

$1110.99

$

Usually ships in 3-6 days

0

4

Exmark 103-9466

Asm, Fill Sensor

$565.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633068

Arm-Lift, Deck

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 103-5426

Stud-Ball

$14.99

$

Usually ships in 3-6 days

0

7

Exmark 323-6

Screw-HH

$2.99

$

In Stock, Qty 20+

0

8

Exmark 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

9

Exmark 3296-39

Nut-Lock, NI

$2.99

$

In Stock, Qty 20+

0

10

Exmark 1-513762

Clip-Loom

$7.99

$

In Stock, only 1 left!

0

11

$2.49

$

In Stock, only 3 left!

0

12

Exmark 614672

Screw-Shoulder, HWH

$2.99

$

In Stock, only 4 left!

0

13

Exmark 109-0716

Damper Kit

$142.99

$

Usually ships in 3-6 days

0

13:1

Exmark 103-8325

Clip-Retainer

$2.99

$

Usually ships in 3-6 days

0

13:2

Exmark 103-5425

Shock-Compression, Gas

$172.99

$

In Stock, only 1 left!

0

14

Exmark 1-303435

Washer-Spring

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-3648

Mount-Switch

$76.99

$

Usually ships in 3-6 days

0

16

Exmark 103-6067-03

Bracket-Drive Motor, LH

$33.99

$

Usually ships in 3-6 days

0

17

Exmark 103-6068-03

Bracket-Drive Motor, RH

$33.99

$

Usually ships in 3-6 days

0

18

Exmark 103-7085-03

Plate-Switch

$36.99

$

Usually ships in 3-6 days

0

19

Exmark 321-2

Screw-HH

$3.49

$

In Stock, only 3 left!

0

20

Exmark 329-4

Screw-HH

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 3250-48

Screw-PPH

$0.99

$

Usually ships in 3-6 days

0

22

Exmark 3296-2

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

23

Exmark 32105-32

Screw-TTH

$1.49

$

Usually ships in 3-6 days

0

24

$0.99

$

In Stock, Qty 20+

0

25

$829.99

$

Usually ships in 3-6 days

0

26

Exmark 103-6022-03

Channel-Frame, Hopper

$23.99

$

Usually ships in 3-6 days

0

27

Exmark 103-6025

Deflector-Grass

$64.99

$

Usually ships in 3-6 days

0

28

Exmark 3229-4

Screw-CARR

$1.49

$

In Stock, only 2 left!

0

29

Exmark 3296-42

Nut-Lock, NI

$0.99

$

In Stock, Qty 20+

0
