NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Deck Decal Assembly No. 109-4372 Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

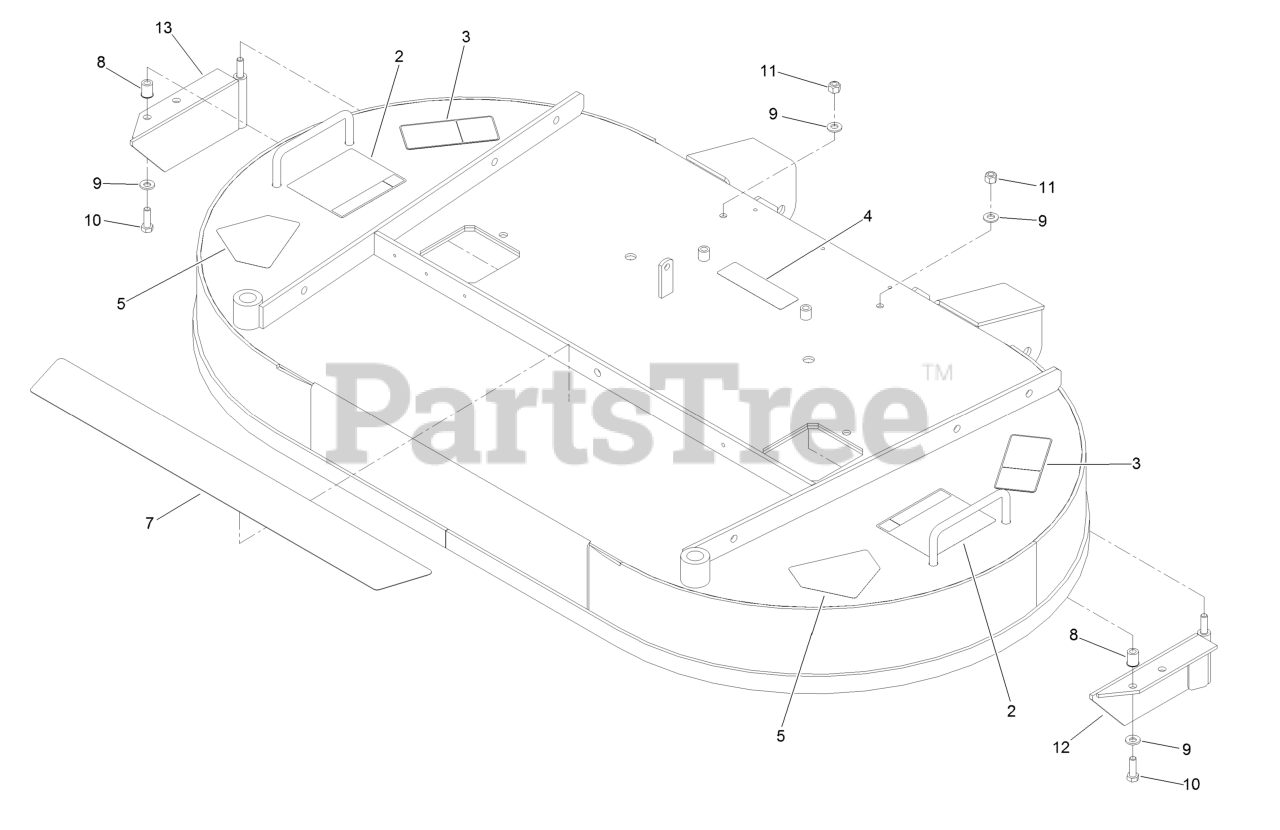

Deck Decal Assembly No. 109-4372 Parts Diagram

  • Title
2

Exmark 116-8934

Decal-Height Adjust, Cutting

$7.49

$

Usually ships in 3-6 days

0

3

Exmark 93-7818

Decal-Torque, Blade Bolt

$11.99

$

In Stock, only 2 left!

0

4

Exmark 112-9028

Decal-Missing, Cover

$22.99

$

Usually ships in 3-6 days

0

5

Exmark 112-8760

Decal-Danger

$11.99

$

In Stock, Qty 5

0

7

Exmark 103-8630

Pad-Anti Skid

$19.99

$

Usually ships in 3-6 days

0

8

Exmark 32148-7

Nut-Insert

$3.99

$

Usually ships in 3-6 days

0

9

Exmark 1-303334

Washer-Spring

$2.99

$

In Stock, only 4 left!

0

10

Exmark 322-5

Screw-HH

$0.99

$

In Stock, Qty 20+

0

11

Exmark 3296-29

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

12

Exmark 109-4053-01

Baffle-LH

$99.99

$

Usually ships in 3-6 days

0

13

Exmark 109-4054-01

Baffle-RH

$99.99

$

Usually ships in 3-6 days

0
