NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

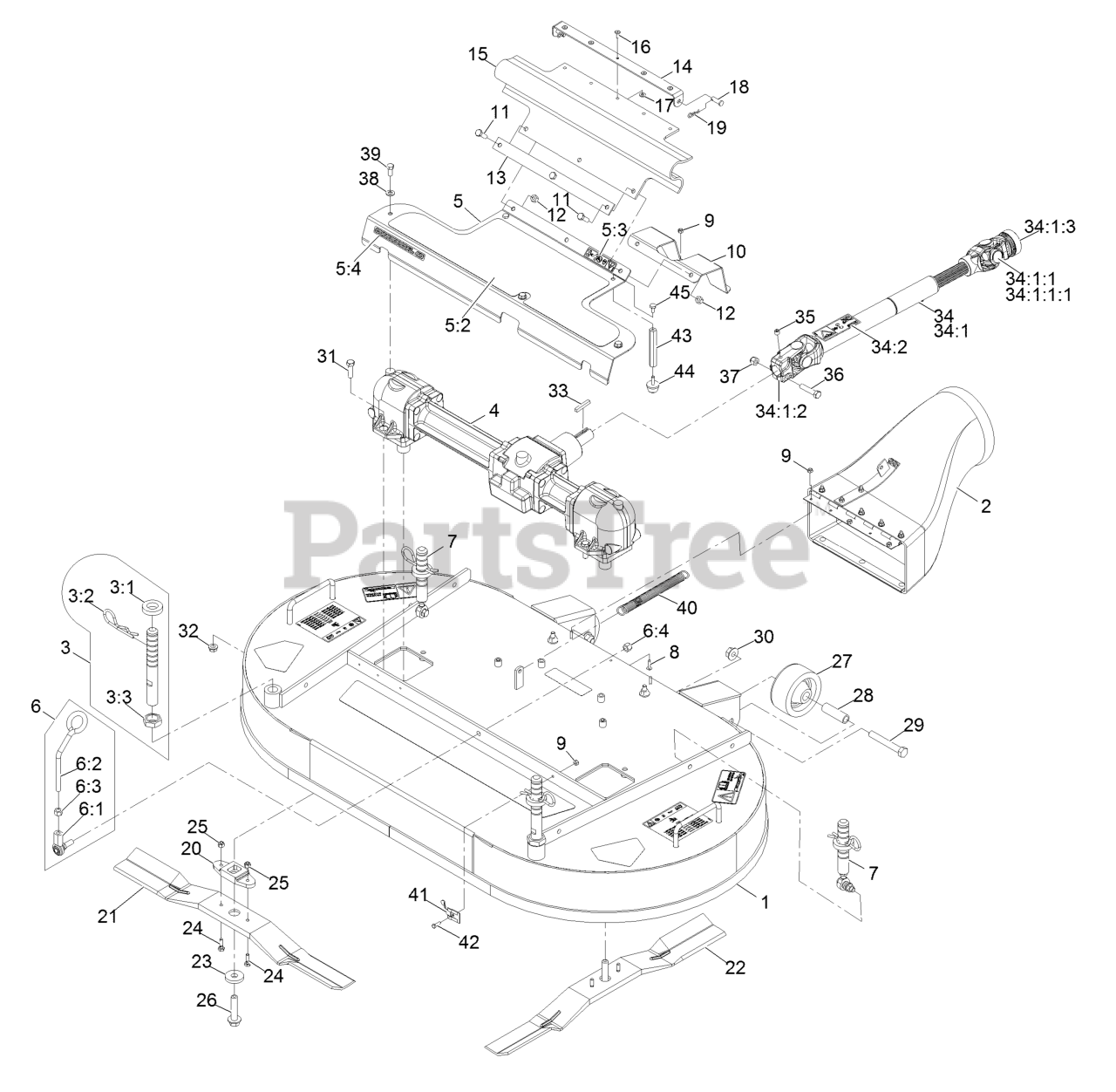

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-4372

Deck Decal And Baffle ASM
(Superseded to 142-2922)

$1784.99

$

Usually ships in 3-6 days

0

2

Exmark 103-9487

Discharge Tube ASM

$327.99

$

In Stock, only 2 left!

0

3

Exmark 109-0321

Front Deck Height Adjust ASM

$96.99

$

In Stock, only 1 left!

0

3:1

Exmark 1-413425

Spacer-Deck Support

$6.49

$

In Stock, Qty 20+

0

3:2

Exmark 103-7353

Pin-Cut Height

$11.99

$

In Stock, Qty 12

0

3:3

Exmark 103-8496

Nut-Jam 7/8-9

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 103-3387

Gear Box ASM

$3570.99

$

Usually ships in 3-6 days

0

5

Exmark 103-9496

Asm, Gearbox Cover W/Decal (48")

$255.99

$

Usually ships in 3-6 days

0

5:2

Exmark 103-8629

Pad-Anti Skid

$27.99

$

Usually ships in 3-6 days

0

5:3

Exmark 119-0217

Decal-Danger

$5.49

$

Usually ships in 3-6 days

0

5:4

Exmark 126-7281

Decal-Commercial 48

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 103-8363

Deck Latch ASM

$126.99

$

In Stock, only 2 left!

0

6:1

Exmark 103-7994

Balljoint

$42.99

$

Usually ships in 3-6 days

0

6:2

Exmark 103-8307

Latch-Deck

$42.99

$

In Stock, only 1 left!

0

6:3

Exmark 3219-3

Nut-Hex 3/8-24

$1.99

$

In Stock, Qty 20+

0

6:4

Exmark 3296-6

Nut-Nyloc 3/8-24

$1.99

$

In Stock, Qty 20+

0

7

Exmark 109-0323

Rear Deck Height Adjust ASM

$117.99

$

Usually ships in 3-6 days

0

8

Exmark 1-803075

Screw-Truss Head #10-24 X 3/4

$1.49

$

In Stock, Qty 5

0

9

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

10

Exmark 116-7843-01

Guard-Drive Shaft

$47.99

$

Usually ships in 3-6 days

0

11

Exmark 322-5

Screw-HH 5/16-18 X 1

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

13

Exmark 103-6290-03

Strap-Drive, Line Cover

$38.99

$

Usually ships in 3-6 days

0

14

Exmark 103-6183-03

Bracket-Guard, PTO

$38.99

$

Usually ships in 3-6 days

0

15

Exmark 103-5979

Guard-PTO

$83.99

$

Usually ships in 3-6 days

0

16

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3256-14

Washer-#10 Std

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-808280

Pin-Clevis 5/16 X 1 49/64

$2.99

$

In Stock, Qty 20+

0

19

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

0

20

Exmark 103-7705

Driver-Blade

$44.99

$

In Stock, Qty 11

0

21

Exmark 103-4208

Blade, RH (48") Red

$37.99

$

In Stock, Qty 11

0

22

Exmark 103-4207

Blade, LH (48") Black

$37.99

$

In Stock, Qty 8

0

23

Exmark 30-8770

Washer

$11.99

$

In Stock, only 2 left!

0

24

Exmark 99-0283

Bolt-Shear 1/4-20 X 7/8

$7.99

$

In Stock, Qty 11

0

25

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

26

Exmark 92-5816

Bolt-Blade 1/2-20 X 2 1/4

$7.49

$

In Stock, only 2 left!

0

27

Exmark 103-3700

Roller-Deck

$19.99

$

Usually ships in 3-6 days

0

28

Exmark 103-4230

Spacer-Roller

$12.99

$

Usually ships in 3-6 days

0

29

Exmark 325-14

Screw-HH 1/2-13 X 3 1/2

$4.99

$

Usually ships in 3-6 days

0

30

Exmark 32128-49

Nut-Whizlock 1/2-13

$1.99

$

In Stock, Qty 20+

0

31

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

32

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

33

Exmark 67-7490

Key-Machine 1/4 X 1/4 X 1 1/2

$2.99

$

In Stock, Qty 10

0

34

Exmark 103-9485

Drive Shaft ASM

$542.99

$

Usually ships in 3-6 days

0

34:1

Drive Shaft-Telescoping

$

$

Not available

34:1:1

Exmark 54-9180

U-Joint Kit

$65.99

$

Usually ships in 3-6 days

0

34:1:1:1

Exmark 62-3820

Fitting-Grease

$10.99

$

Usually ships in 3-6 days

0

34:1:2

Exmark 103-9328

Yoke-Keyed

$127.99

$

Usually ships in 3-6 days

0

34:1:3

Exmark 103-9329

Yoke-Quick Disconnect

$272.99

$

Usually ships in 3-6 days

0

34:2

Exmark 116-9049

Decal-Danger, Driveline

$5.99

$

Usually ships in 3-6 days

0

35

Exmark 3247-2

Setscrew-3/8-16 X 3/8

$4.49

$

Usually ships in 3-6 days

0

36

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

37

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

38

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

39

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

40

Exmark 103-8841

Spring-Extension

$14.99

$

In Stock, only 1 left!

0

41

Exmark 1-513690

Clip-Deck, Hold Up Rod

$5.49

$

Usually ships in 3-6 days

0

42

Exmark 3290-134

Screw-HH Machine 10-24 X 5/8

$0.99

$

In Stock, Qty 20+

0

43

Exmark 103-8610

Stand-Off

$21.99

$

Usually ships in 3-6 days

0

44

Exmark 1-523420

Bumper

$14.99

$

Usually ships in 3-6 days

0

45

Exmark 321-2

Screw-HH 1/4-20 X 1/2

$3.49

$

In Stock, only 3 left!

0
