NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Blower Assembly No. 116-9649 Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

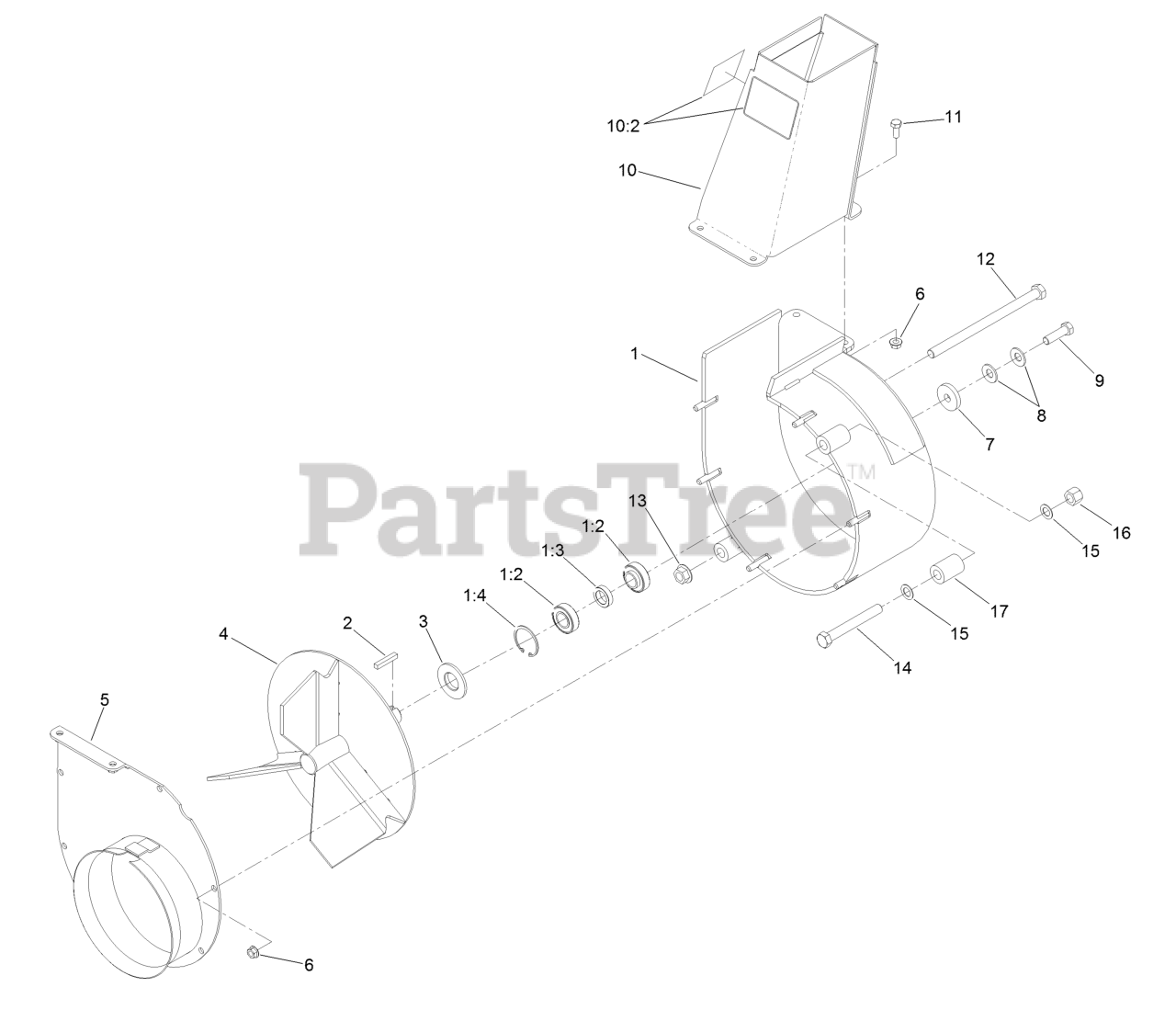

Blower Assembly No. 116-9649 Parts Diagram

  • Title

1

Exmark 116-9648

Housing ASM

$739.99

$

Usually ships in 3-6 days

0

1:2

Exmark 103-3540

Bearing-Ball

$68.99

$

In Stock, only 2 left!

0

1:3

Exmark 103-4921

Spacer-Bearing

$15.99

$

In Stock, only 1 left!

0

1:4

Exmark 32120-8

Ring-Snap

$2.99

$

In Stock, Qty 16

0

2

Exmark 67-7490

Key-Square

$2.99

$

In Stock, Qty 10

0

3

Exmark 103-3894

Spacer-Blower

$28.99

$

In Stock, only 1 left!

0

4

Exmark 103-5194

Impeller-3 Blade

$403.99

$

Usually ships in 3-6 days

0

5

Exmark 103-3370-03

Cover-Blower

$348.99

$

Usually ships in 3-6 days

0

6

Exmark 32128-20

Nut-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-543610

Washer-Clutch

$6.49

$

In Stock, Qty 6

0

8

Exmark 1-603610

Washer-Spring

$5.49

$

In Stock, Qty 5

0

9

Exmark 3212-6

Screw-HH

$2.49

$

In Stock, only 1 left!

0

10

Exmark 103-9474

Discharge Chute ASM

$284.99

$

Usually ships in 3-6 days

0

10:2

Exmark 116-8943

Decal-Danger, Impeller

$6.99

$

Usually ships in 3-6 days

0

11

Exmark 322-3

Screw-HH

$0.99

$

In Stock, Qty 13

0

12

Exmark 325-42

Screw-HH

$14.99

$

In Stock, Qty 14

0

13

Exmark 32128-23

Nut-HF

$1.99

$

In Stock, only 2 left!

0

14

Exmark 325-17

Screw-HH

$5.99

$

In Stock, Qty 6

0

15

Exmark 18-9810

Washer-Thrust

$9.49

$

In Stock, only 2 left!

0

16

Exmark 3296-23

Nut-Lock, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 103-6999

Spacer-Mount

$19.99

$

Usually ships in 3-6 days

0
