NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 316000000 - 399999999) (2016) Main Frame Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

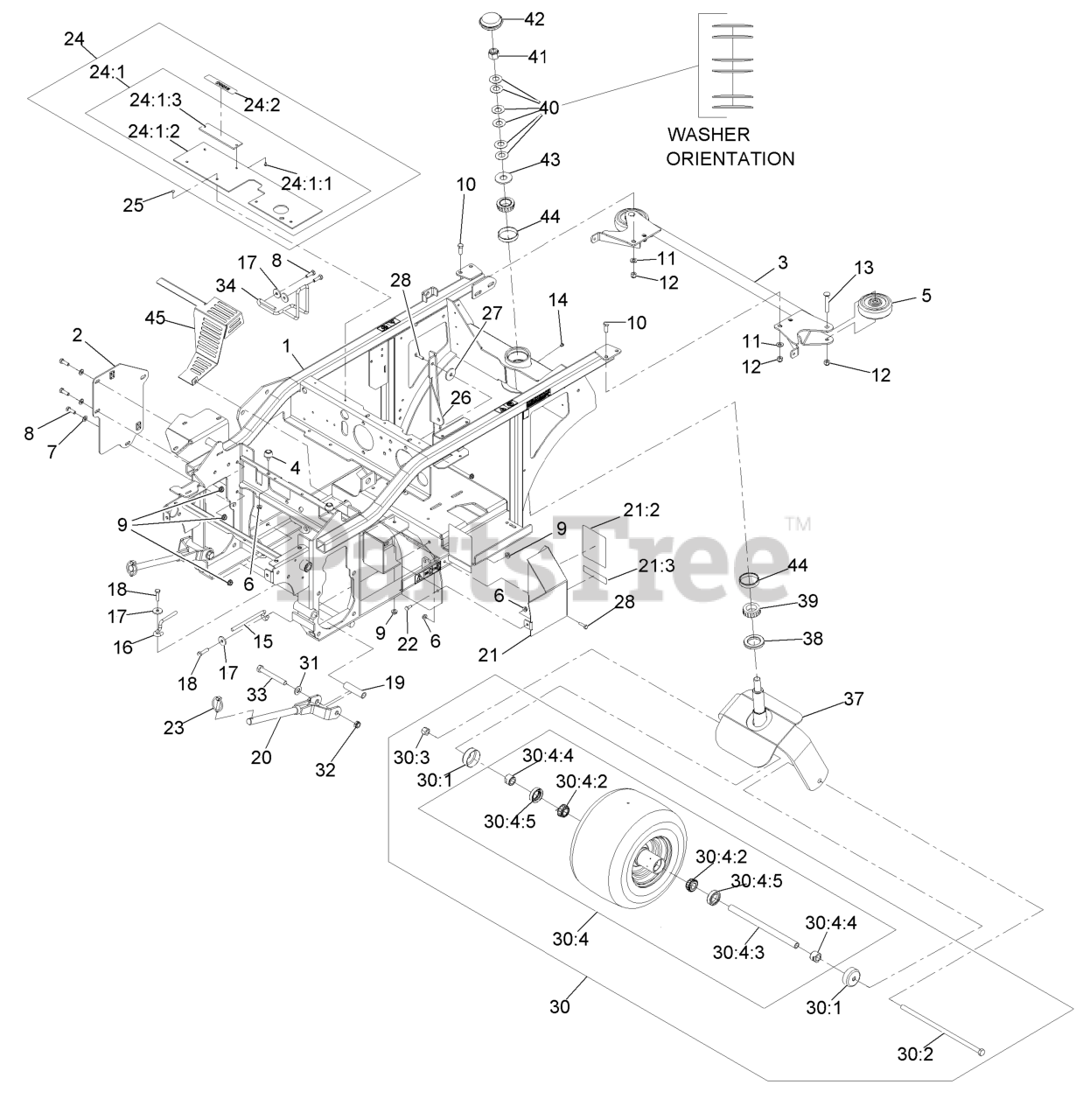

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-7482

FRAME ASM

$2474.99

$

Usually ships in 3-6 days

0

2

Exmark 116-7396-03

PLATE-SUPPORT

$45.99

$

Usually ships in 3-6 days

0

3

Exmark 109-0925-03

BUMPER-REAR

$288.99

$

Usually ships in 3-6 days

0

4

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

5

Exmark 103-5408

ROLLER-BUMPER

$22.99

$

Usually ships in 3-6 days

0

6

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

7

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

13

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

14

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

15

Exmark 103-8333

GUIDE-BELT

$11.99

$

Usually ships in 3-6 days

0

16

Exmark 103-8349

GUIDE-BELT

$10.99

$

Usually ships in 3-6 days

0

17

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

18

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Exmark 1-633060

SPACER-WHEEL, SHORT

$14.99

$

Usually ships in 3-6 days

0

20

Exmark 103-6596-03

ROD-PUSH

$123.99

$

Usually ships in 3-6 days

0

21

Exmark 130-2879

DRIVE SHIELD ASM

$86.99

$

Usually ships in 3-6 days

0

21:2

Exmark 116-8941

Decal-Belt Routing

$6.99

$

Usually ships in 3-6 days

0

21:3

Exmark 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

22

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 103-4155

PIN-LYNCH

$6.49

$

Usually ships in 3-6 days

0

24

Exmark 103-9476

LIFT SHIELD ASM

$101.99

$

Usually ships in 3-6 days

0

24:1

Shield-Lift

Note: Not serviced separately

$

$

Not available

24:1:1

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

24:1:2

Exmark 103-8819

103-9476
(Superseded to 103-9476)

$101.99

$

Usually ships in 3-6 days

0

24:1:3

Exmark 103-9114-03

Plate-Decal

$6.49

$

Usually ships in 3-6 days

0

24:2

Exmark 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

25

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

26

Exmark 109-5874-03

BRACE-PTO

$50.99

$

Usually ships in 3-6 days

0

27

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 2 left!

0

28

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 103-9494

REAR CASTER WHEEL ASM

$483.99

$

In Stock, only 1 left!

0

30:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

30:2

Exmark 103-7738

SCREW-HH

$23.99

$

Usually ships in 3-6 days

0

30:3

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

30:4

Exmark 103-5305

ASM,WHEEL,TIRE & BRG SP

$450.99

$

Usually ships in 3-6 days

0

30:4:2

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

0

30:4:3

Exmark 126-5362

AXLE CASTER ASM

$29.99

$

Usually ships in 3-6 days

0

30:4:4

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 12

0

30:4:5

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

31

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

33

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, Qty 5

0

34

Exmark 116-8323

GUIDE-BELT
(Superseded to 135-5784)

$43.99

$

In Stock, only 1 left!

0

37

Exmark 103-3351-03

FORK-REAR CASTER

$410.99

$

Usually ships in 3-6 days

0

38

Exmark 103-9027

SEAL-GREASE

$13.99

$

Usually ships in 3-6 days

0

39

Exmark 103-9028

BEARING-ROLLER, CONE TAPE

$29.99

$

In Stock, Qty 8

0

40

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

41

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 12

0

42

Exmark 103-9057

CAP-GREASE
(Superseded to 126-9882)

$7.99

$

Usually ships in 3-6 days

0

43

Exmark 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 15

0

44

Exmark 103-9029

CUP-TAPERED, ROLLER BEARI

$10.99

$

In Stock, Qty 7

0

45

Exmark 116-7272-03

SHIELD-HEAT

$45.99

$

Usually ships in 3-6 days
