NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 316000000 - 399999999) (2016) Hopper Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

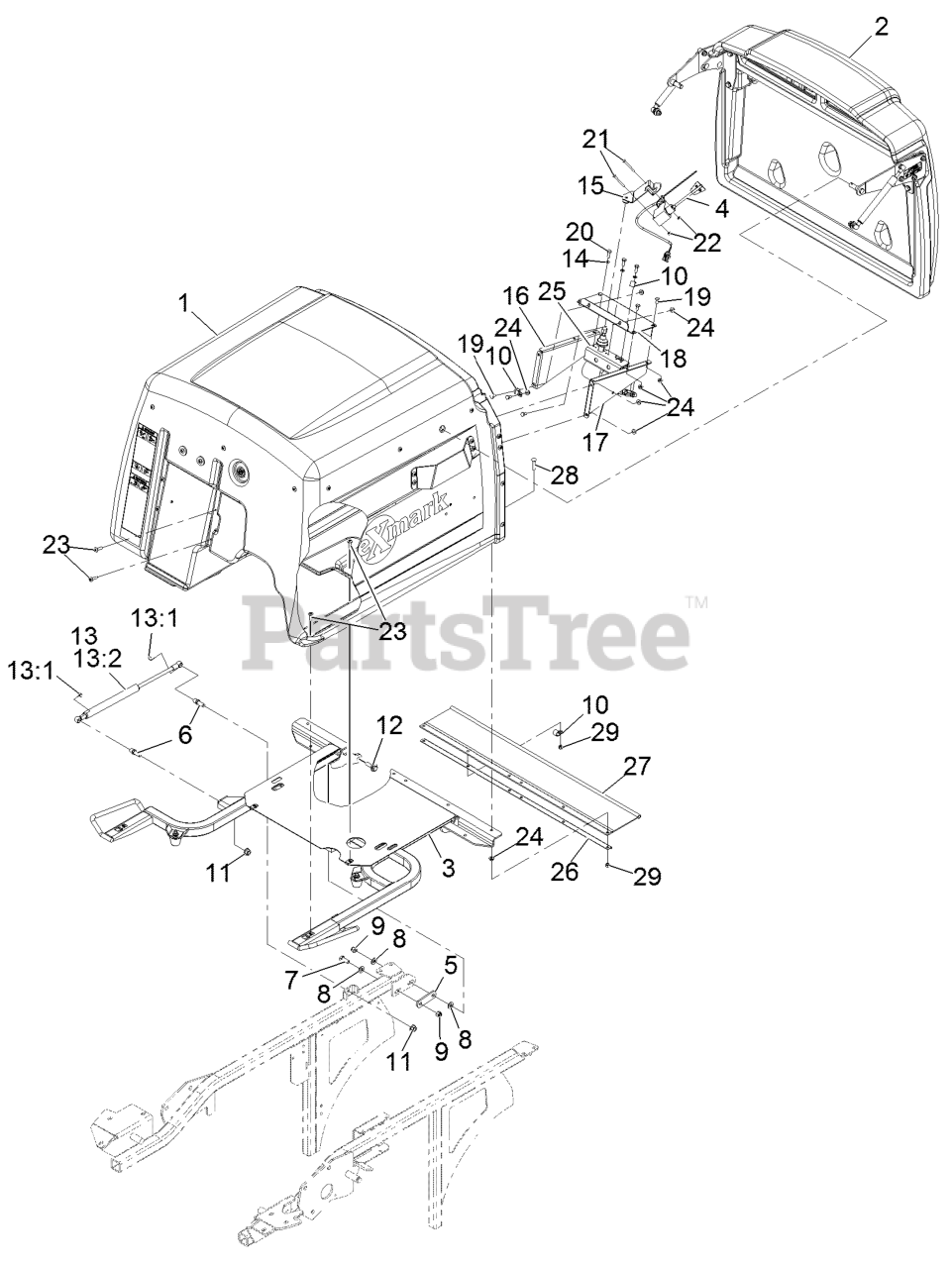

Hopper Assembly Parts Diagram

  • Title

1

Exmark 103-9457

ASM,HOPPER

$2913.99

$

Usually ships in 3-6 days

0

2

Exmark 103-9456

ASM,DOOR HOPPER

$728.99

$

Usually ships in 3-6 days

0

3

Exmark 109-4086

HOPPER FRAME ASM

$1110.99

$

Usually ships in 3-6 days

0

4

Exmark 103-9466

ASM,FILL SENSOR

$505.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 103-5426

STUD-BALL

$14.99

$

Usually ships in 3-6 days

0

7

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

10

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

11

Exmark 33005-00

NUT-HF

$2.49

$

In Stock, only 3 left!

0

12

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 6

0

13

Exmark 109-0716

DAMPER KIT

$157.99

$

Usually ships in 3-6 days

0

13:1

Exmark 103-8325

CLIP-RETAINER

$2.99

$

Usually ships in 3-6 days

0

13:2

Exmark 103-5425

SHOCK-COMPRESSION, GAS

$172.99

$

In Stock, only 1 left!

0

14

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

15

Exmark 109-3648

MOUNT-SWITCH

$76.99

$

Usually ships in 3-6 days

0

16

Exmark 103-6067-03

BRACKET-DRIVE MOTOR, LH

$33.99

$

Usually ships in 3-6 days

0

17

Exmark 103-6068-03

BRACKET-DRIVE MOTOR, RH

$33.99

$

Usually ships in 3-6 days

0

18

Exmark 103-7085-03

PLATE-SWITCH

$36.99

$

Usually ships in 3-6 days

0

19

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

20

Exmark 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 3250-48

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

22

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Exmark 32105-32

SCREW-TTH

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

25

Exmark 109-3853

KIT,FILL SENSOR MOTOR

$747.99

$

Usually ships in 3-6 days

0

26

Exmark 103-6022-03

CHANNEL-FRAME, HOPPER

$23.99

$

Usually ships in 3-6 days

0

27

Exmark 103-6025

DEFLECTOR-GRASS

$64.99

$

Usually ships in 3-6 days

0

28

Exmark 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

29

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+
