NVS740CKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler CH740 (SN: 316000000 - 399999999) (2016) Gearbox Assembly No. 103-3387 Parts Diagram

48" Navigator Front Mount Mower, Kohler CH740

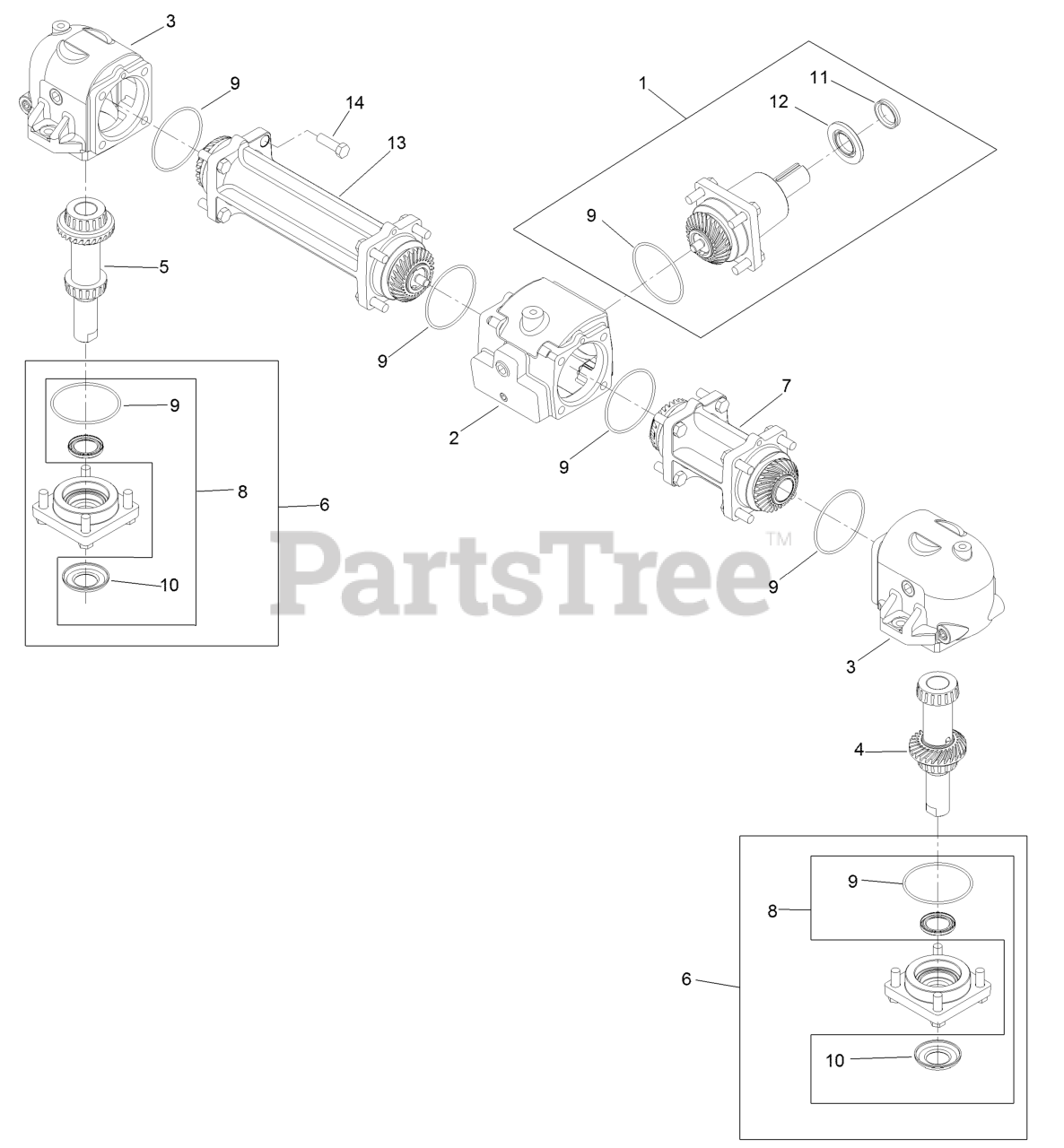

Gearbox Assembly No. 103-3387 Parts Diagram

  • Title

1

Exmark 109-0189

PINION-INPUT

$483.99

$

Usually ships in 3-6 days

0

2

Exmark 109-0190

HOUSING-CENTER

$391.99

$

Usually ships in 3-6 days

0

3

Exmark 109-0191

HOUSING-END

$337.99

$

Usually ships in 3-6 days

0

4

Exmark 109-0193

OUTPUT SHAFT AND GEAR-LH

$426.99

$

Usually ships in 3-6 days

0

5

Exmark 109-0195

OUTPUT SHAFT AND GEAR-RH

$543.99

$

Usually ships in 3-6 days

0

6

Exmark 109-0196

CAP-OUTPUT

$188.99

$

Usually ships in 3-6 days

0

7

Exmark 109-0198

TUBE-CONNECTOR, SHORT

$742.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0201

OUTPUT SEAL KIT

$36.99

$

Usually ships in 3-6 days

0

9

Exmark 109-0203

SEAL-O-RING

$13.99

$

In Stock, Qty 9

0

10

Exmark 109-0204

WASHER-CUPPED

$16.99

$

Usually ships in 3-6 days

0

11

Exmark 109-0205

SEAL-V-RING

Note: Apply bead of Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between input seal and v-ring.

$15.99

$

In Stock, only 1 left!

0

12

Exmark 109-0202

SEAL-INPUT

Note: Apply bead of Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between input seal and v-ring.

$59.99

$

Usually ships in 3-6 days

0

13

Exmark 109-0200

CONNECTOR-TUBE, LONG

$747.99

$

Usually ships in 3-6 days

0

14

Exmark 93-3987

AU328-620
(Superseded to AU328-620)

$0.99

$

In Stock, only 1 left!

0
