NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 404314159 - 406294344) (2019) Gearbox Assembly No. 103-3460 Parts Diagram

42" Navigator Front Mount Mower, Kohler CH740

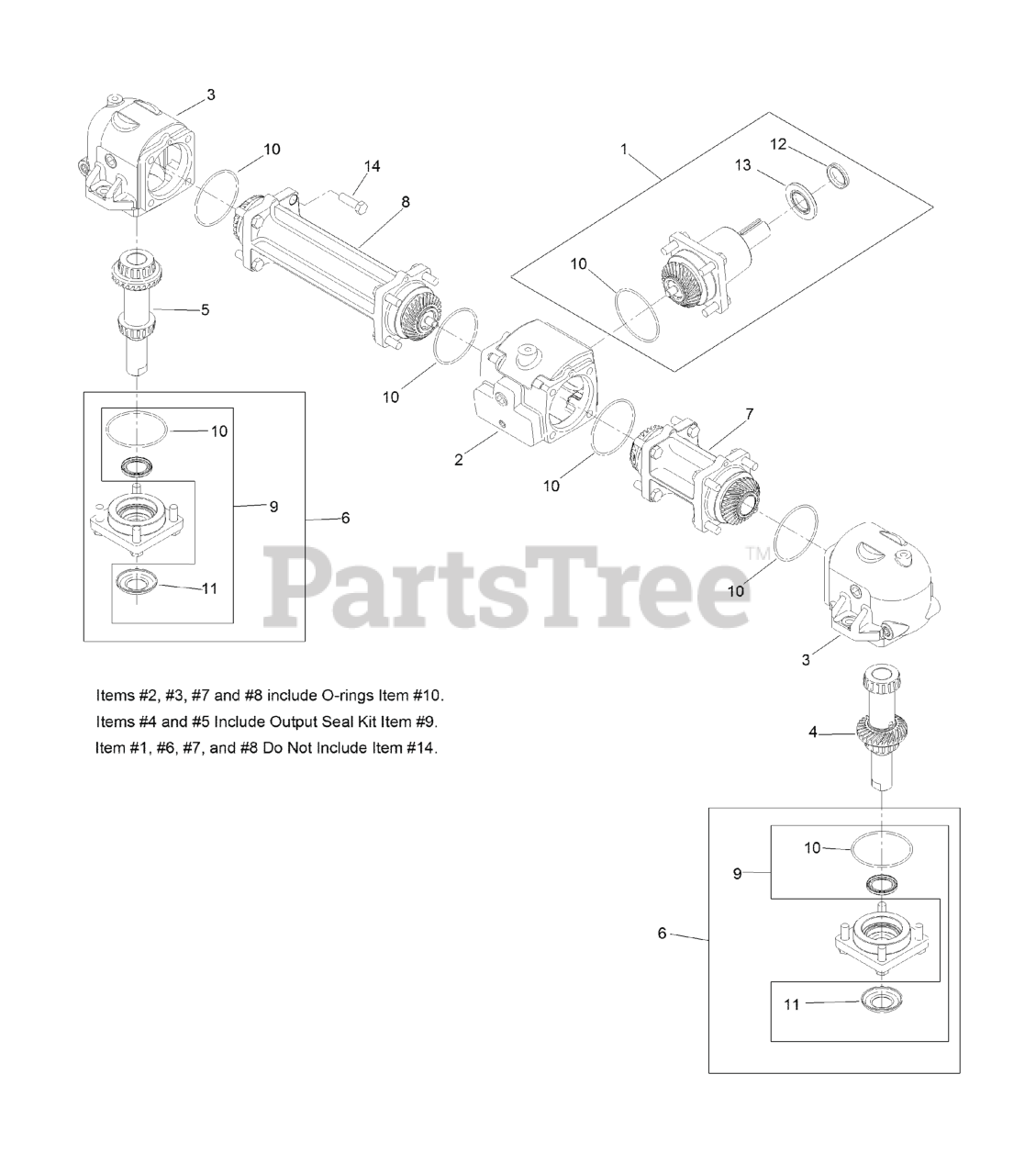

Gearbox Assembly No. 103-3460 Parts Diagram

  • Title

1

Exmark 109-0188

INPUT PINION ASM

$563.99

$

Usually ships in 3-6 days

0

2

Exmark 109-0190

HOUSING-CENTER

$391.99

$

Usually ships in 3-6 days

0

3

Exmark 109-0191

HOUSING-END

$305.99

$

Usually ships in 3-6 days

0

4

Exmark 109-0192

LH OUTPUT SHAFT AND GEAR

$458.99

$

Usually ships in 3-6 days

0

5

Exmark 109-0194

RH OUTPUT SHAFT AND GEAR

$465.99

$

Usually ships in 3-6 days

0

6

Exmark 109-0196

CAP-OUTPUT

$170.99

$

Usually ships in 3-6 days

0

7

Exmark 109-0197

TUBE-CONNECTOR, SHORT

$678.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0199

TUBE-CONNECTOR, LONG

$739.99

$

Usually ships in 3-6 days

0

9

Exmark 109-0201

OUTPUT SEAL KIT

$33.99

$

Usually ships in 3-6 days

0

10

Exmark 109-0203

SEAL-O-RING

$12.99

$

In Stock, Qty 9

0

11

Exmark 109-0204

WASHER-CUPPED

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 109-0205

SEAL-V-RING

Note: Apply bead of Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between input seal and v-ring.

$15.99

$

In Stock, only 1 left!

0

13

Exmark 109-0202

SEAL-INPUT

Note: Apply bead of Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between input seal and v-ring.

$59.99

$

Usually ships in 3-6 days

0

14

Exmark 93-3987

AU328-620
(Superseded to AU328-620)

$0.99

$

In Stock, only 1 left!

0
