NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

42" Navigator Front Mount Mower, Kohler CH740

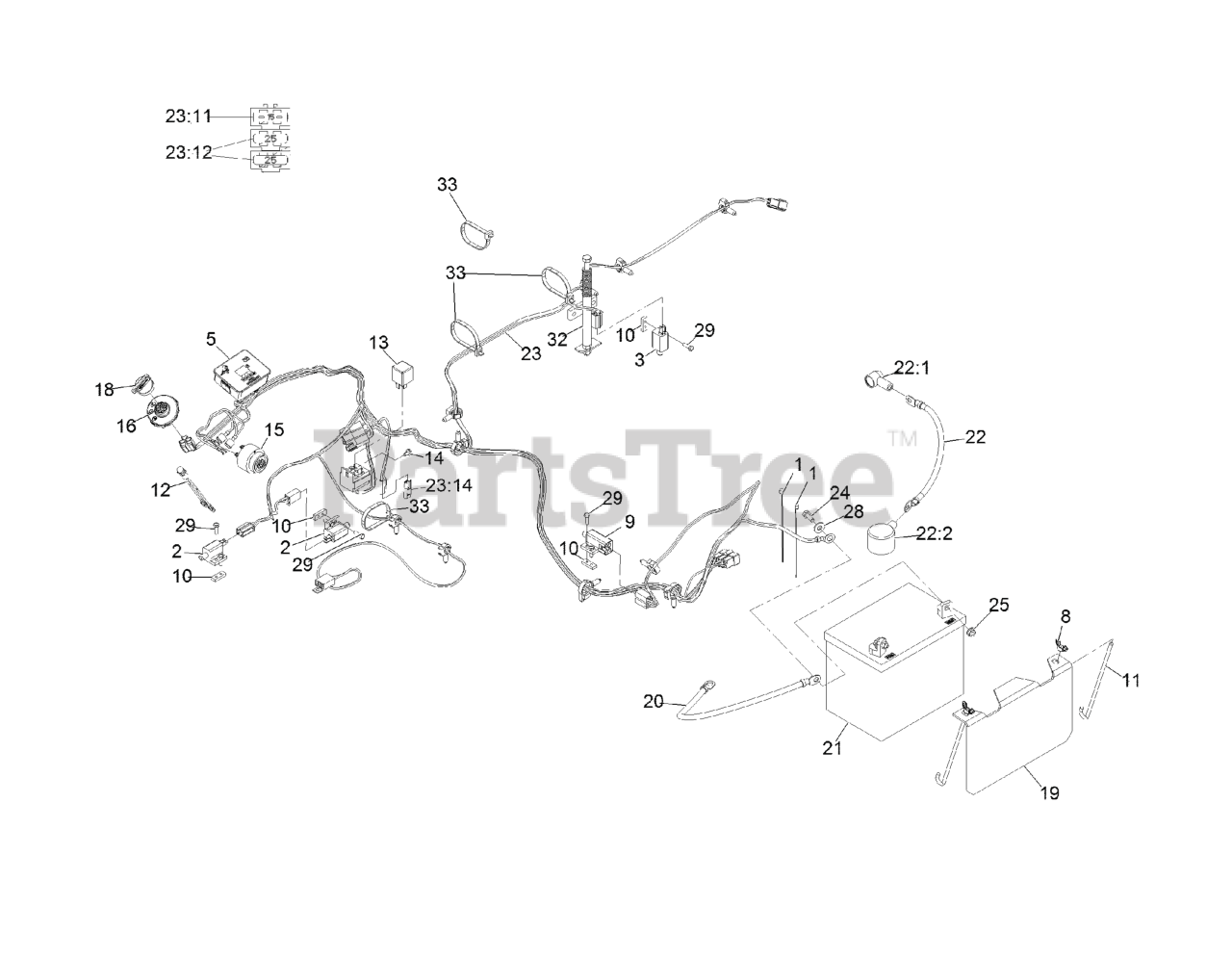

Electrical Assembly Parts Diagram

  • Title
1

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 20+

0

3

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 15

0

5

Exmark 116-8812

HOUR METER ASM

$132.99

$

Usually ships in 3-6 days

0

8

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

9

$20.99

$

In Stock, Qty 20+

0

10

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

11

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, only 2 left!

0

12

Exmark 1-643267

INDICATOR-LED, RED

$23.99

$

In Stock, only 1 left!

0

13

$22.99

$

In Stock, Qty 8

0

14

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 103-0205

ALARM-TONE, DUAL

$64.99

$

In Stock, only 2 left!

0

16

Exmark 137-4100

SWITCH-IGNITION

$37.99

$

In Stock, Qty 20+

0

18

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

19

Exmark 103-4161-03

HOLD DOWN-BATTERY

$38.99

$

Usually ships in 3-6 days

0

20

Exmark 103-8355

CABLE-BATTERY, NEGATIVE

$17.99

$

Usually ships in 3-6 days

0

21

Battery

Note: Obtain locally. l Not serviced separately

$

$

Not available

22

Exmark 116-4730

CABLE-BATTERY, POSITIVE

$19.99

$

Usually ships in 3-6 days

0

22:1

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

22:2

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 4 left!

0

23

Exmark 116-9114

HARNESS-WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$343.99

$

Usually ships in 3-6 days

0

23:11

Exmark 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

23:12

Exmark 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, Qty 9

0

23:14

Exmark 116-0053

CAP-PLUG

$38.99

$

Usually ships in 3-6 days

0

24

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

$0.99

$

In Stock, Qty 6

0

28

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

29

$0.99

$

In Stock, Qty 10

0

32

Exmark 103-8528

HOPPER SWITCH ACTUATOR AS

$98.99

$

Usually ships in 3-6 days

0

33

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
