NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Engine, Muffler and Air Cleaner Assembly Parts Diagram

42" Navigator Front Mount Mower, Kohler CH740

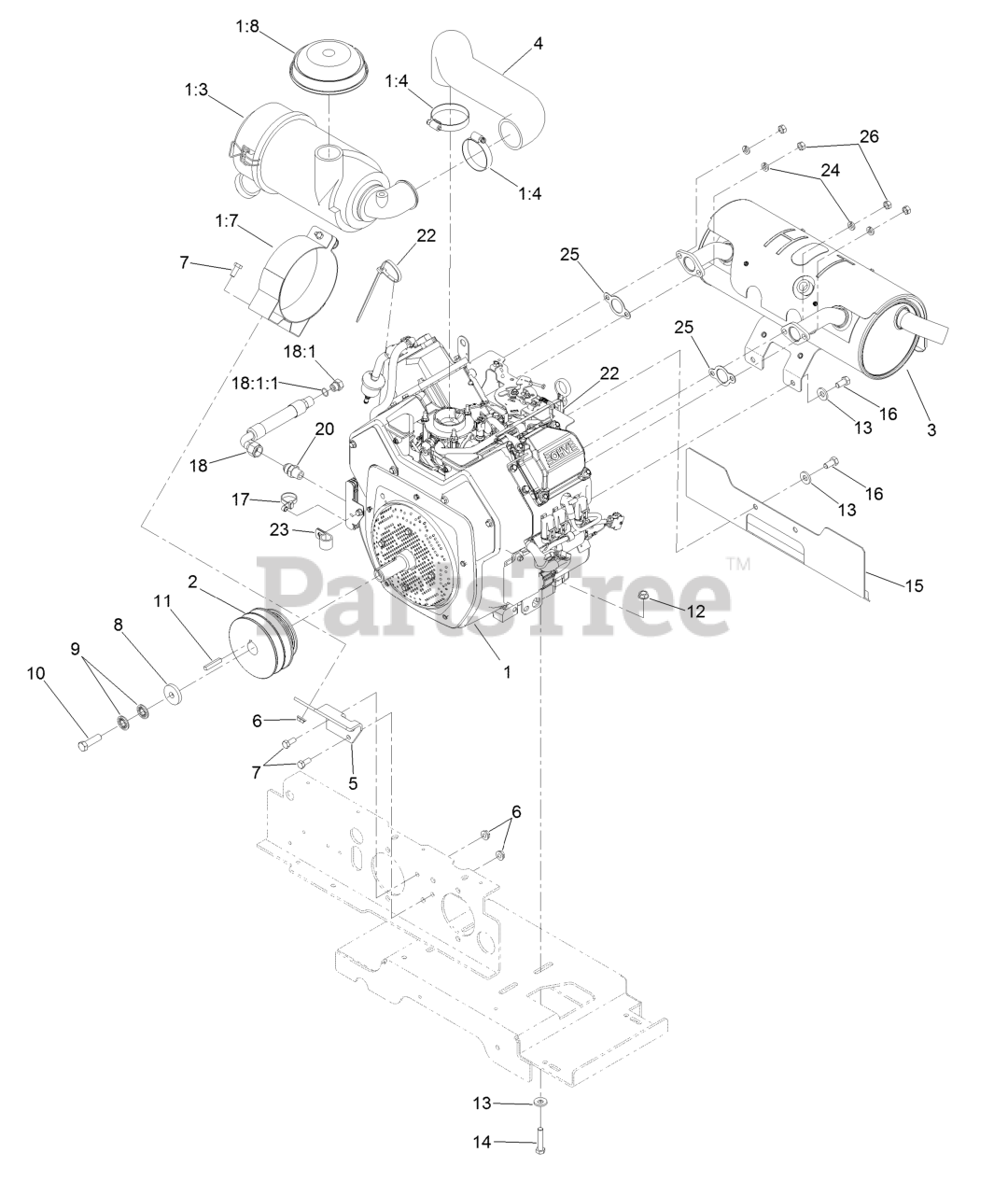

Engine, Muffler and Air Cleaner Assembly Parts Diagram

  • Title
1

Engine-Kohler, Ch740

$

$

Not available

1:3

Exmark 103-8569

Air Cleaner Canister ASM

$369.99

$

Usually ships in 3-6 days

0

1:4

Exmark 2412-42

Clamp-Hose

$10.99

$

Usually ships in 3-6 days

0

1:7

Exmark 103-1058

Bracket-Filter, Air

$110.99

$

Usually ships in 3-6 days

0

1:8

Exmark 100-2436

Hood-Cleaner, 2" Air Intake

$69.99

$

Usually ships in 3-6 days

0

2

Exmark 103-6731

Sheave-Engine
(Superseded to 109-0942)

$213.99

$

Usually ships in 3-6 days

0

3

Exmark 103-7444

Muffler
(Superseded to 109-3501)

$281.99

$

Usually ships in 3-6 days

0

4

Exmark 103-6961

Hose-Air Intake

$107.99

$

Usually ships in 3-6 days

0

5

Exmark 103-3695-03

Bracket-Filter, Air

$33.99

$

Usually ships in 3-6 days

0

6

$1.49

$

In Stock, Qty 20+

0

7

Exmark 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-543610

Washer-Clutch

$6.49

$

In Stock, Qty 16

0

9

Exmark 1-603610

Washer-Spring

$5.49

$

In Stock, Qty 20+

0

10

Exmark 3212-6

Screw-HH

$2.49

$

In Stock, Qty 11

0

11

Exmark 67-7490

Key-Square

$2.99

$

In Stock, Qty 10

0

12

Exmark 3290-357

Nut-HHF, Whiz

$0.99

$

In Stock, Qty 20+

0

13

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

14

Exmark 323-9

Screw-HH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-0181-03

Shield-Exhaust

$64.99

$

Usually ships in 3-6 days

0

16

Exmark 323-4

Screw-HH

$3.99

$

In Stock, Qty 20+

0

17

Exmark 109-7896

Tie-Cable

$

$

Currently unavailable

18

Exmark 116-5338

Oil Drain Hose ASM

$62.99

$

Usually ships in 3-6 days

0

18:1

Exmark 353-508

Plug-HH

$8.49

$

In Stock, Qty 5

0

18:1:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

20

Exmark 116-1455

Fitting-Straight

$6.99

$

Usually ships in 3-6 days

0

22

Exmark 1-303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

23

Exmark 1-633396

Clip-Loom

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 1-805005

Washer-Lock

$1.49

$

In Stock, Qty 7

0

25

Exmark 1-653291

Gasket-Exhaust
(Superseded to 110-6697)

$

$

Not available

26

Exmark 33014-00

Nut-Hex

$0.99

$

In Stock, Qty 20+

0
