NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Drive Assembly Parts Diagram

42" Navigator Front Mount Mower, Kohler CH740

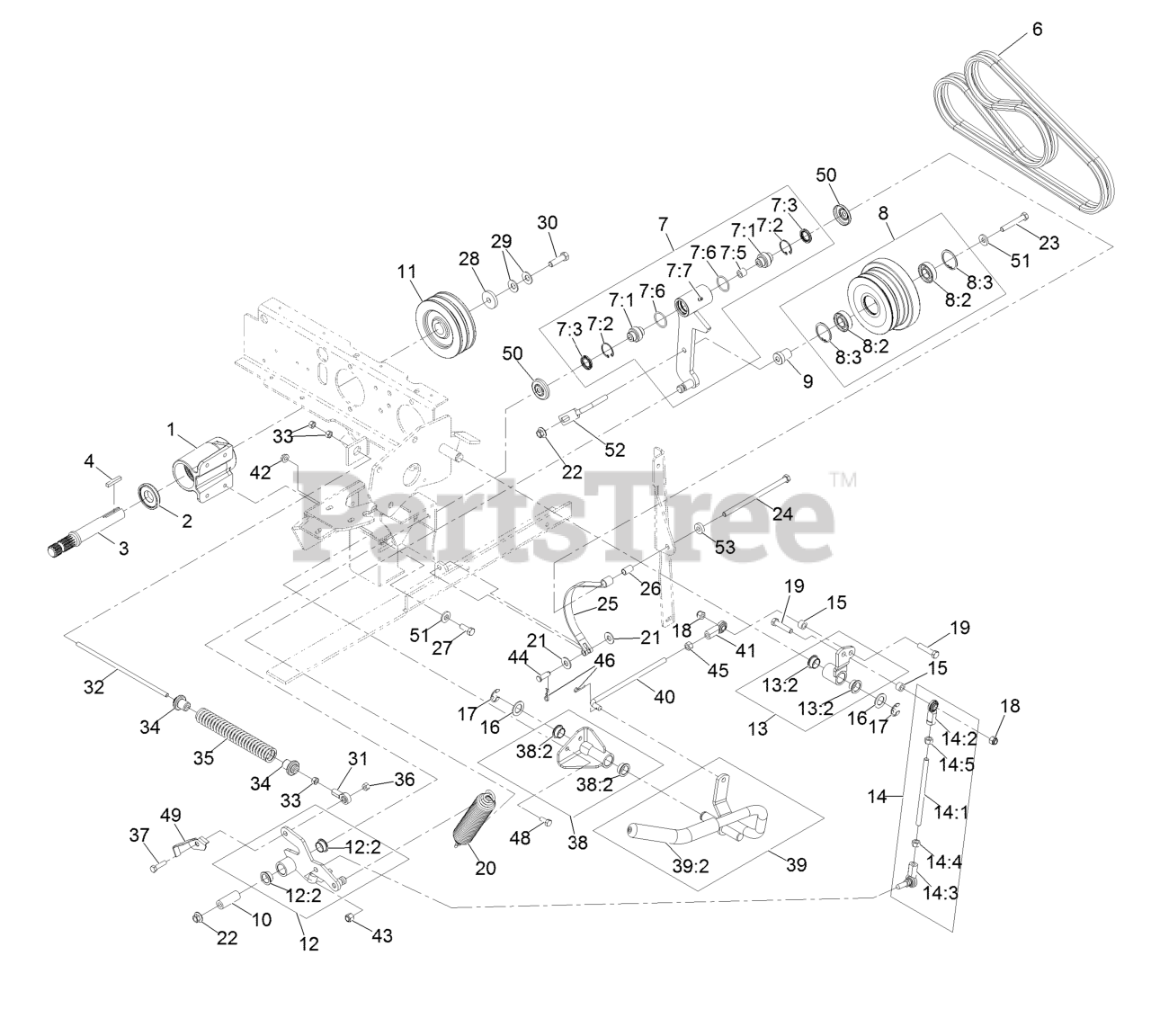

Drive Assembly Parts Diagram

  • Title

1

Exmark 103-2544

Jackshaft ASM
(Superseded to 103-9746)

$263.99

$

In Stock, only 1 left!

0

2

Exmark 103-2535

Spacer-Guard, Bottom

$12.99

$

In Stock, only 3 left!

0

3

Exmark 103-6735

Jackshaft

$194.99

$

Usually ships in 3-6 days

0

4

Exmark 67-7490

Key-Square

$2.99

$

In Stock, Qty 10

0

6

Exmark 103-6737

Belt, Matched Pair
(Superseded to 103-6737-SL)

$158.99

$

Usually ships in 3-6 days

0

7

Exmark 103-8253

Idler Pivot ASM

$231.99

$

Usually ships in 3-6 days

0

7:1

Exmark 103-3504

Bearing-Spherical

$25.99

$

In Stock, Qty 20+

0

7:2

Exmark 32120-10

Ring-Snap

$1.49

$

In Stock, Qty 20+

0

7:3

Exmark 103-3506

Seal-Lip, Single

$5.49

$

In Stock, Qty 19

0

7:5

Exmark 1-413088

Bushing-Lever, Lift

$10.99

$

In Stock, only 1 left!

0

7:6

Exmark 106-7159

O-Ring

$1.49

$

In Stock, Qty 20+

0

7:7

Exmark 302-19

Fitting-Grease

$2.49

$

In Stock, Qty 8

0

8

Exmark 103-9439

Idler Sheave ASM

$365.99

$

Usually ships in 3-6 days

0

8:2

Exmark 251-347

Bearing-Ball

$10.99

$

In Stock, only 4 left!

0

8:3

Exmark 32151-13

Ring-Retaining

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 103-7350

Spacer-Idler

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 103-7382

Bushing

$19.99

$

In Stock, only 1 left!

0

11

Exmark 103-6732

Sheave

$196.99

$

Usually ships in 3-6 days

0

12

Exmark 103-9296

Arm ASM

$149.99

$

Usually ships in 3-6 days

0

12:2

Exmark 108519

Bushing-Bronze

$15.99

$

In Stock, Qty 9

0

13

Exmark 103-9297

Arm ASM

$116.99

$

Usually ships in 3-6 days

0

13:2

Exmark 108519

Bushing-Bronze

$15.99

$

In Stock, Qty 9

0

14

Exmark 103-7392

Clutch Link ASM

$127.99

$

Usually ships in 3-6 days

0

14:1

Exmark 103-7393

Rod-Linkage

$13.99

$

Usually ships in 3-6 days

0

14:2

Exmark 103-1167

Joint-Ball End, LH

$31.99

$

In Stock, Qty 10

0

14:3

Exmark 103-7994

Balljoint-RH

$42.99

$

Usually ships in 3-6 days

0

14:4

Exmark 3219-3

Nut-Hex

$1.99

$

In Stock, Qty 20+

0

14:5

Exmark 3219-20

Nut-Hex, LH

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 92-9025

Spacer

$8.49

$

Usually ships in 3-6 days

0

16

Exmark 1-303007

Washer

$5.49

$

In Stock, Qty 13

0

17

Exmark 32151-48

E-Ring

$1.99

$

In Stock, Qty 14

0

18

Exmark 3296-39

Nut-Lock, NI

$2.99

$

In Stock, Qty 8

0

19

Exmark 323-9

Screw-HH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 109-0148

Spring-Extension

$38.99

$

Usually ships in 3-6 days

0

21

Exmark 3256-4

Washer-Flat

$1.99

$

In Stock, Qty 20+

0

22

Exmark 32128-19

Nut-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 323-12

Screw-HH

$2.49

$

In Stock, Qty 10

0

24

Exmark 323-36

Screw-HH

$5.99

$

Usually ships in 3-6 days

0

25

Exmark 103-7697

Band-Brake

$87.99

$

In Stock, only 1 left!

0

26

Exmark 103-9816

Spacer

$8.99

$

Usually ships in 3-6 days

0

27

Exmark 323-6

Screw-HH

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-543610

Washer-Clutch

$6.49

$

In Stock, Qty 6

0

29

Exmark 1-603610

Washer-Spring

$5.49

$

In Stock, Qty 5

0

30

Exmark 3212-6

Screw-HH

$2.49

$

In Stock, only 1 left!

0

31

Exmark 1-543017

Balljoint-RH

$20.99

$

In Stock, only 4 left!

0

32

Exmark 103-7996

Linkage-Rod, PTO Brake

$21.99

$

Usually ships in 3-6 days

0

33

Exmark 3219-2

Nut-Hex

$0.99

$

In Stock, Qty 11

0

34

Exmark 103-8254

Bushing-Spring

$6.99

$

Usually ships in 3-6 days

0

35

Exmark 103-7997

Spring-Brake

$44.99

$

Usually ships in 3-6 days

0

36

Exmark 3296-29

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

37

Exmark 322-6

Screw-HH

$3.99

$

In Stock, Qty 20+

0

38

Exmark 103-9295

Pivot ASM

$124.99

$

Usually ships in 3-6 days

0

38:2

Exmark 108519

Bushing-Bronze

$15.99

$

In Stock, Qty 9

0

39

Exmark 103-9486

PTO Handle ASM

$245.99

$

Usually ships in 3-6 days

0

39:2

Exmark 103-8153

Grip-Lever, Control

$14.99

$

In Stock, only 1 left!

0

40

Exmark 103-8277

Link-Handle

$33.99

$

Usually ships in 3-6 days

0

41

Exmark 103-0608

Joint-Ball, End

$33.99

$

In Stock, Qty 5

0

42

Exmark 32128-20

Nut-HF

$1.49

$

In Stock, Qty 20+

0

43

Exmark 3296-6

Nut-Lock

$1.99

$

In Stock, Qty 20+

0

44

Exmark 283-2

Pin-Clevis

$13.99

$

In Stock, only 2 left!

0

45

Exmark 3219-3

Nut-Hex

$1.99

$

In Stock, Qty 20+

0

46

Exmark 1-806003

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

48

Exmark 322-3

Screw-HH

$0.99

$

In Stock, Qty 13

0

49

Exmark 103-8716-03

Switch-Flag

$12.99

$

Usually ships in 3-6 days

0

50

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

51

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

52

Exmark 109-5491

Guide-Belt

$25.99

$

Usually ships in 3-6 days

0

53

Exmark 5-0652

Spacer

$7.49

$

In Stock, Qty 5

0
