NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Discharge Tube Assembly No. 103-9487 Parts Diagram

42" Navigator Front Mount Mower, Kohler CH740

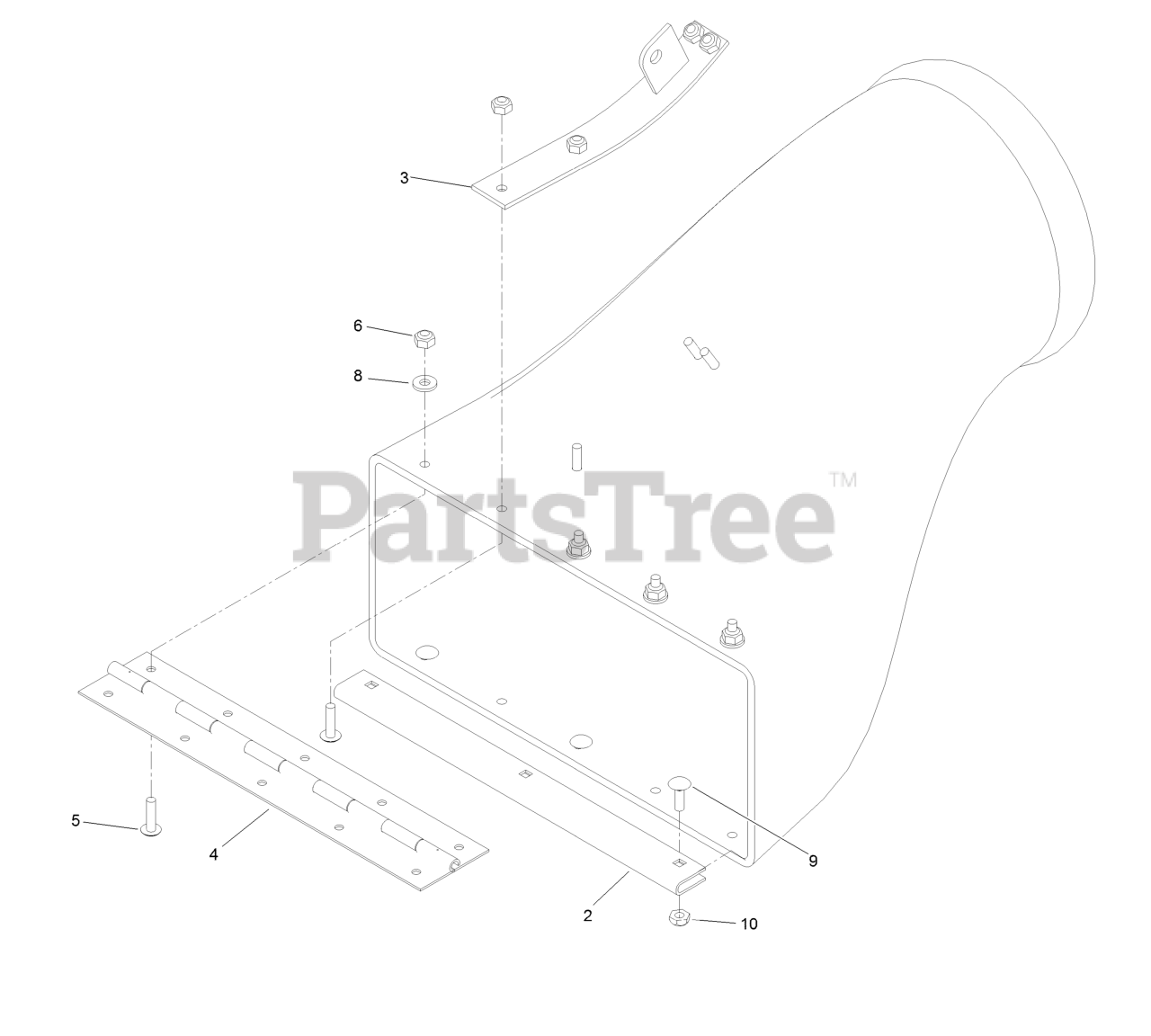

Discharge Tube Assembly No. 103-9487 Parts Diagram

  • Title
2

Exmark 109-2228-03

Guard-Plenum

$27.99

$

Usually ships in 3-6 days

0

3

Exmark 103-5868-01

Mount-Spring

$41.99

$

Usually ships in 3-6 days

0

4

Exmark 103-4974

Hinge-Piano
(Superseded to 139-4460)

$38.99

$

Usually ships in 3-6 days

0

5

Exmark 1-803075

Screw-Head, Truss

$1.49

$

In Stock, Qty 5

0

6

Exmark 3296-2

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

8

Exmark 3256-14

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-807533

Bolt-CARR

$1.49

$

In Stock, Qty 6

0

10

Exmark 3296-12

Nut-Lock, NI
(Superseded to 3296-12)

$1.49

$

In Stock, Qty 6

0
