NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 400000000 - 402082299) (2017) Spring Lift Assist Assembly No. 116-7850 Parts Diagram
42" Navigator Front Mount Mower, Kohler CH740

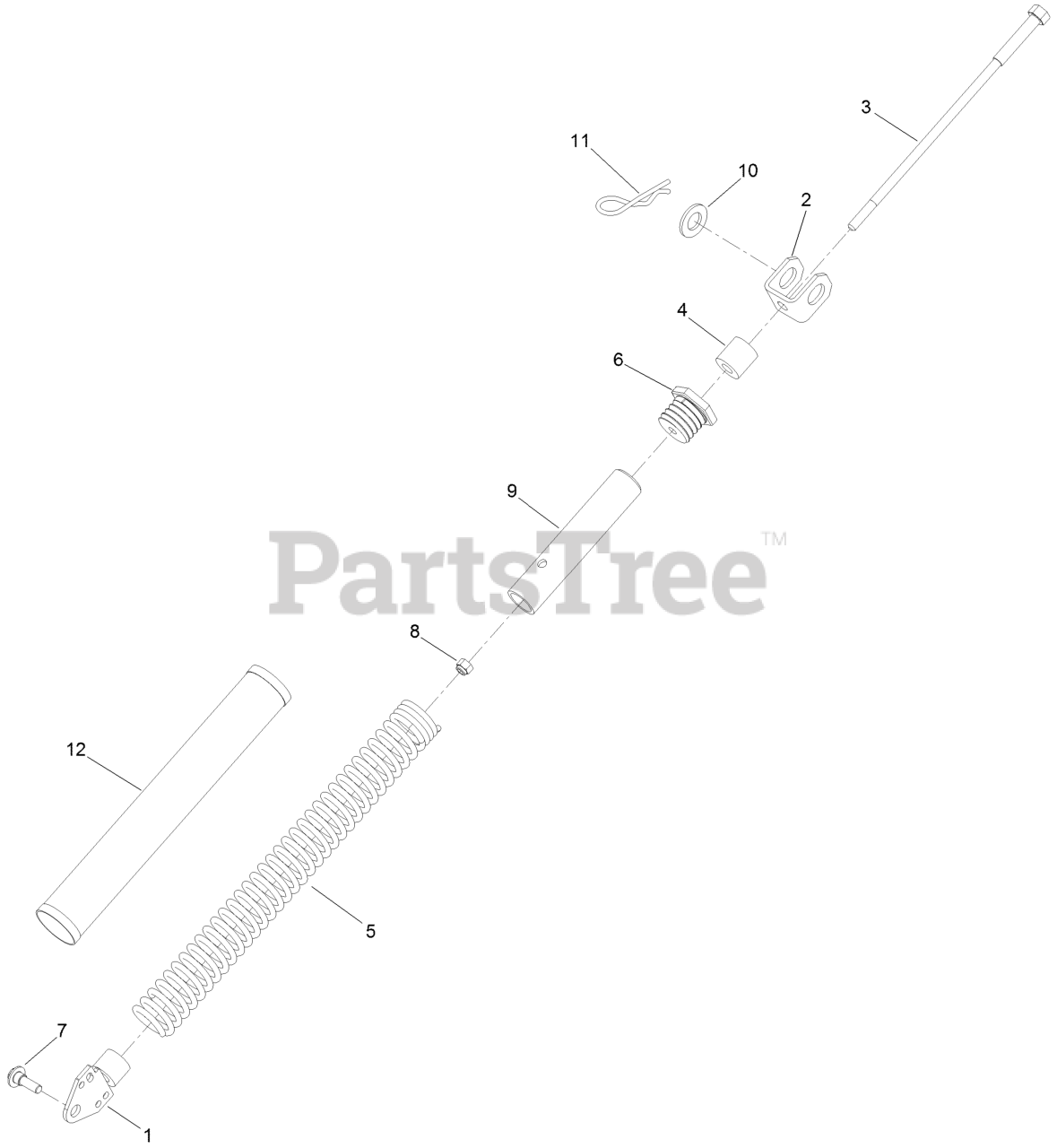

Spring Lift Assist Assembly No. 116-7850 Parts Diagram
Exmark 103-4284
TENSIONER-SPRING
$61.99
$
Usually ships in 3-6 days
Exmark 103-4285
MOUNT-LIFT ASSIST, DECK
$17.99
$
Usually ships in 3-6 days
Exmark 103-3773
SHAFT-ADJUSTMENT, SPRING
$144.99
$
Usually ships in 3-6 days
Exmark 109-1978
SPACER (PLATED)
$19.99
$
Usually ships in 3-6 days
Exmark 103-4281
SPRING-EXTENSION
$92.99
$
Usually ships in 3-6 days
Exmark 103-3772
PLUG-ADJUSTER, SPRING
$87.99
$
Usually ships in 3-6 days
Exmark 614672
SCREW-SHOULDER, HWH
$2.99
$
In Stock, Qty 6
Exmark 3296-39
NUT-LOCK, NI
$2.99
$
In Stock, Qty 8
Exmark 103-7865
SPRING-TUBE
$103.99
$
Usually ships in 3-6 days
Exmark 3256-28
WASHER-FLAT
$3.49
$
In Stock, Qty 20+
Exmark 103-7353
PIN-CUT HEIGHT
$11.99
$
In Stock, Qty 14
Exmark 103-7971
COVER-SPRING, DECK
$47.99
$
Usually ships in 3-6 days
