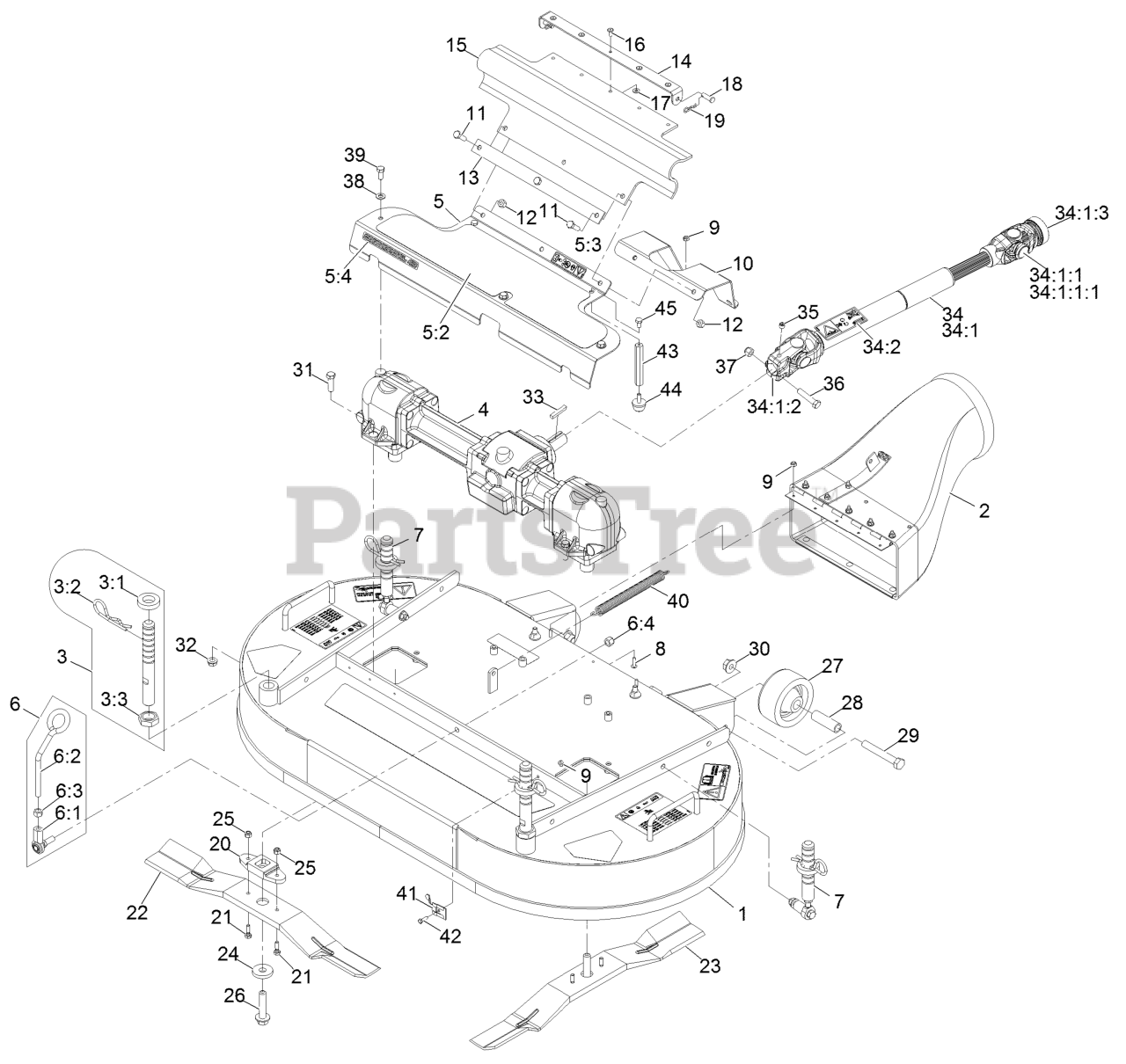

NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 400000000 - 402082299) (2017) Deck Assembly Parts Diagram

42" Navigator Front Mount Mower, Kohler CH740

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-4373

DECK ASM
(Superseded to 142-2918)

$1960.99

$

Usually ships in 3-6 days

0

2

Exmark 103-9487

DISCHARGE TUBE ASM

$346.99

$

In Stock, only 2 left!

0

3

Exmark 109-0321

FRONT DECK HEIGHT ADJUST

$102.99

$

In Stock, only 1 left!

0

3:1

Exmark 1-413425

SPACER-DECK SUPPORT

$6.99

$

In Stock, Qty 20+

0

3:2

Exmark 103-7353

PIN-CUT HEIGHT

$12.99

$

In Stock, Qty 5

0

3:3

Exmark 103-8496

NUT-JAM

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 103-3460

GEARBOX ASM

$3814.99

$

Usually ships in 3-6 days

0

5

Exmark 103-9497

ASM,GEARBOX COVER 42 W/DE

$270.99

$

Usually ships in 3-6 days

0

5:2

Exmark 103-8626

PAD-ANTI SKID

$19.99

$

Usually ships in 3-6 days

0

5:3

Exmark 119-0217

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

5:4

Exmark 126-7280

Decal-Commercial 42

$

$

Currently unavailable

6

Exmark 103-8363

DECK LATCH ASM

$134.99

$

Usually ships in 3-6 days

0

6:1

Exmark 103-7994

BALLJOINT-RH

$44.99

$

Usually ships in 3-6 days

0

6:2

Exmark 103-8307

LATCH-DECK

$44.99

$

In Stock, only 1 left!

0

6:3

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

6:4

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

7

Exmark 109-0322

REAR DECK HEIGHT ADJUST A

$126.99

$

Usually ships in 3-6 days

0

8

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

9

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 116-7842-01

GUARD-DRIVE SHAFT

$50.99

$

Usually ships in 3-6 days

0

11

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Exmark 103-6290-03

STRAP-DRIVE, LINE COVER

$41.99

$

Usually ships in 3-6 days

0

14

Exmark 103-6183-03

BRACKET-GUARD, PTO

$41.99

$

Usually ships in 3-6 days

0

15

Exmark 103-5979

GUARD-PTO

$87.99

$

Usually ships in 3-6 days

0

16

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

18

Exmark 1-808280

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

19

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

20

Exmark 103-7705

DRIVER-BLADE

$46.99

$

In Stock, Qty 8

0

21

Exmark 99-0283

BOLT-SHEAR

$8.49

$

In Stock, Qty 20+

0

22

Exmark 103-4210

BLADE,22 INCH RH

$39.99

$

In Stock, only 3 left!

0

23

Exmark 103-4209

BLADE,22 INCH LH

$39.99

$

In Stock, only 4 left!

0

24

Exmark 30-8770

WASHER

$12.99

$

In Stock, only 2 left!

0

25

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Exmark 92-5816

BOLT-BLADE

$7.99

$

In Stock, Qty 20+

0

27

Exmark 103-3700

ROLLER-DECK

$20.99

$

Usually ships in 3-6 days

0

28

Exmark 103-4230

SPACER-ROLLER

$13.99

$

Usually ships in 3-6 days

0

29

Exmark 325-14

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

30

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 17

0

31

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

32

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Exmark 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 9

0

34

Exmark 103-9485

DRIVE SHAFT ASM

$575.99

$

Usually ships in 3-6 days

0

34:1

Drive Shaft-Telescoping

Note: Not serviced separately

$

$

Not available

34:1:1

Exmark 54-9180

U-JOINT KIT

$69.99

$

Usually ships in 3-6 days

0

34:1:1:1

Exmark 62-3820

FITTING-GREASE

$10.99

$

Usually ships in 3-6 days

0

34:1:2

Exmark 103-9328

YOKE-KEYED

$135.99

$

Usually ships in 3-6 days

0

34:1:3

Exmark 103-9329

YOKE-QUICK DISCONNECT

$288.99

$

Usually ships in 3-6 days

0

34:2

Exmark 116-9049

DECAL-DANGER, DRIVELINE

$6.49

$

Usually ships in 3-6 days

0

35

Exmark 3247-2

SCREW-SET, HSH

$4.49

$

Usually ships in 3-6 days

0

36

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Exmark 103-8841

SPRING-EXTENSION

$15.99

$

In Stock, only 2 left!

0

41

Exmark 1-513690

CLIP-DECK, HOLD UP ROD

$5.49

$

Usually ships in 3-6 days

0

42

Exmark 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

43

Exmark 103-8610

STAND-OFF

$22.99

$

Usually ships in 3-6 days

0

44

Exmark 1-523420

109-2365

$15.99

$

Usually ships in 3-6 days

0

45

Exmark 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0
