Exmark NVS730AKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler ECH730 EFI (SN: 406294345 - 408644345) (Rev A) (2020) Deck Assembly Parts Lookup with Diagrams

1

Exmark 142-2922

Deck-Cutting 48 W/Decals

$1784.99

$

Usually ships in 3-6 days

2

Exmark 103-9487

DISCHARGE TUBE ASM

$327.99

$

In Stock, only 2 left!

3

Exmark 109-0321

FRONT DECK HEIGHT ADJUST

$96.99

$

In Stock, only 1 left!

3:1

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 20+

3:2

Exmark 103-7353

PIN-CUT HEIGHT

$11.99

$

In Stock, Qty 12

3:3

Exmark 103-8496

NUT-JAM

$5.49

$

Usually ships in 3-6 days

4

Exmark 103-3387

GEAR BOX ASM

$3570.99

$

Usually ships in 3-6 days

5

Exmark 103-9496

ASM,GEARBOX COVER 48 W/DE

$255.99

$

Usually ships in 3-6 days

5:2

Exmark 103-8629

PAD-ANTI SKID

$27.99

$

Usually ships in 3-6 days

5:3

Exmark 119-0217

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

5:4

Exmark 126-7281

Decal-Commercial 48

$11.99

$

Usually ships in 3-6 days

6

Exmark 103-8363

DECK LATCH ASM

$126.99

$

In Stock, only 2 left!

6:1

Exmark 103-7994

BALLJOINT-RH

$42.99

$

Usually ships in 3-6 days

6:2

Exmark 103-8307

LATCH-DECK

$42.99

$

In Stock, only 1 left!

6:3

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

6:4

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

7

Exmark 109-0323

REAR DECK HEIGHT ADJUST A

$117.99

$

Usually ships in 3-6 days

8

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

9

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

10

Exmark 116-7843-01

GUARD-DRIVE SHAFT

$47.99

$

Usually ships in 3-6 days

11

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

12

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

13

Exmark 103-6290-03

STRAP-DRIVE, LINE COVER

$38.99

$

Usually ships in 3-6 days

14

Exmark 103-6183-03

BRACKET-GUARD, PTO

$38.99

$

Usually ships in 3-6 days

15

Exmark 103-5979

GUARD-PTO

$83.99

$

Usually ships in 3-6 days

16

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

17

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

18

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

19

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

20

Exmark 103-7705

DRIVER-BLADE

$44.99

$

In Stock, Qty 11

21

Exmark 103-4208

BLADE,25 INCH RH

$37.99

$

In Stock, Qty 11

22

Exmark 103-4207

BLADE,25 INCH LH

$37.99

$

In Stock, Qty 8

23

Exmark 30-8770

WASHER

$11.99

$

In Stock, only 4 left!

24

Exmark 99-0283

BOLT-SHEAR

$7.99

$

In Stock, Qty 15

25

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

26

Exmark 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 11

27

Exmark 103-3700

ROLLER-DECK

$19.99

$

Usually ships in 3-6 days

28

Exmark 103-4230

SPACER-ROLLER

$12.99

$

Usually ships in 3-6 days

29

Exmark 325-14

SCREW-HH

$4.99

$

Usually ships in 3-6 days

30

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

31

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

32

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

33

Exmark 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

34

Exmark 103-9485

DRIVE SHAFT ASM

$542.99

$

Usually ships in 3-6 days

34:1

Drive Shaft-Telescoping

Note: Not serviced separately

$

Not available 

34:1:1

Exmark 54-9180

U-JOINT KIT

$65.99

$

Usually ships in 3-6 days

34:1:1:1

Exmark 62-3820

FITTING-GREASE

$10.99

$

Usually ships in 3-6 days

34:1:2

Exmark 103-9328

YOKE-KEYED

$127.99

$

Usually ships in 3-6 days

34:1:3

Exmark 103-9329

YOKE-QUICK DISCONNECT

$272.99

$

Usually ships in 3-6 days

34:2

Exmark 116-9049

DECAL-DANGER, DRIVELINE

$5.99

$

Usually ships in 3-6 days

35

Exmark 3247-2

SCREW-SET, HSH

$4.49

$

Usually ships in 3-6 days

36

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

37

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

38

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

39

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

40

Exmark 103-8841

SPRING-EXTENSION

$14.99

$

In Stock, only 1 left!

41

Exmark 1-513690

CLIP-DECK, HOLD UP ROD

$5.49

$

Usually ships in 3-6 days

42

Exmark 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

43

Exmark 103-8610

STAND-OFF

$21.99

$

Usually ships in 3-6 days

44

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

45

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

46

Exmark 75-3960

Spring-Torsion, LH (Yellow)

$28.99

$

Usually ships in 3-6 days

47

Exmark 75-3970

Spring-Torsion, RH

$28.99

$

In Stock, only 1 left!

48

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

49

Exmark 108-9087

Collar-Basket

$13.99

$

Usually ships in 3-6 days

50

Exmark 110-4068

Washer-Plastic

$3.99

$

Usually ships in 3-6 days

51

Exmark 142-2475

Latch - Deck

$16.99

$

Usually ships in 3-6 days

52

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

53

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

NVS730AKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler ECH730 EFI (SN: 406294345 - 408644345) (Rev A) (2020) Deck Assembly Parts Diagram

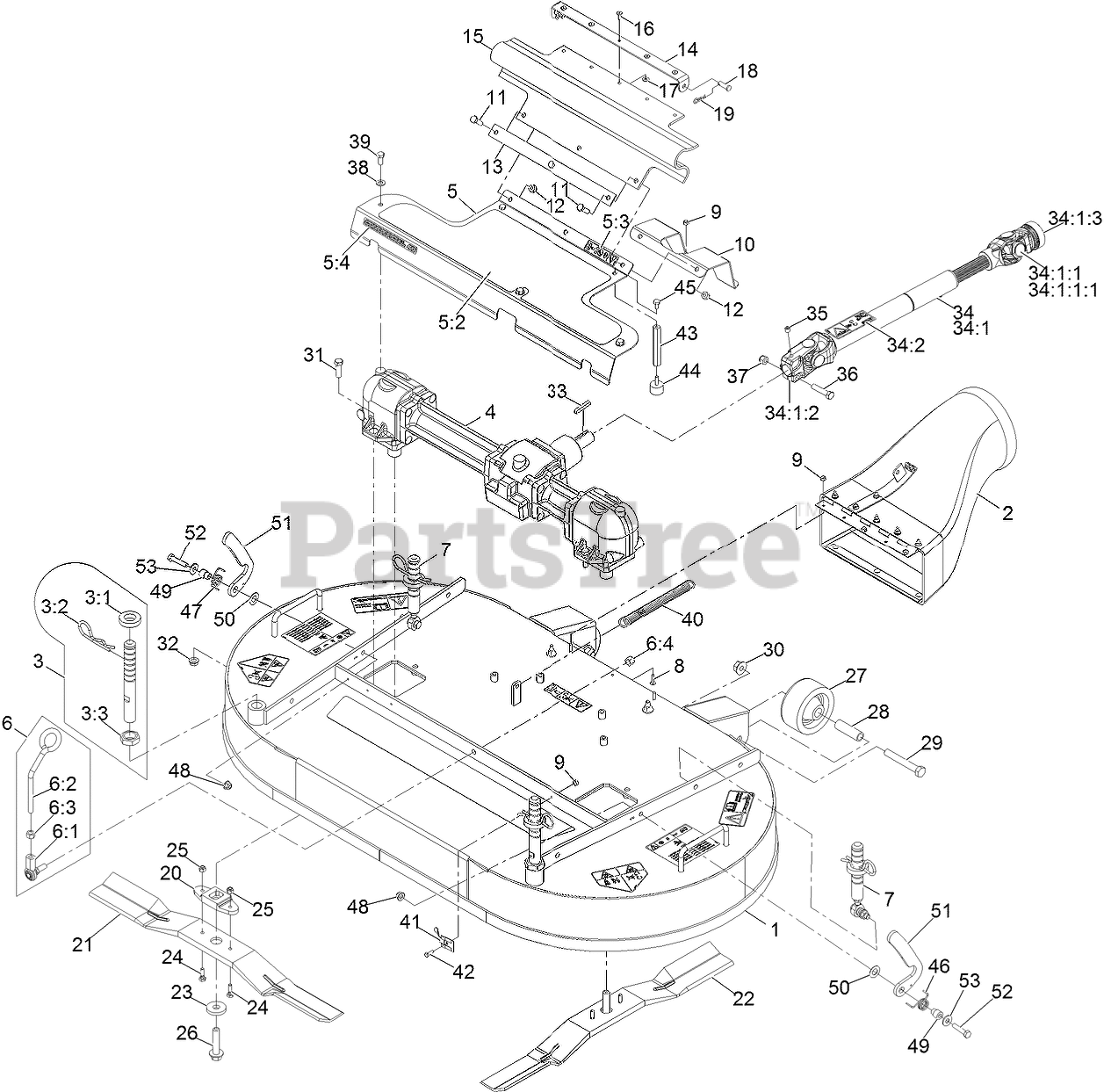

Deck Assembly Parts Diagram
