NVS730AKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler ECH730 EFI (SN: 402082300 - 404314158) (2018) Speed Control Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler ECH730 EFI

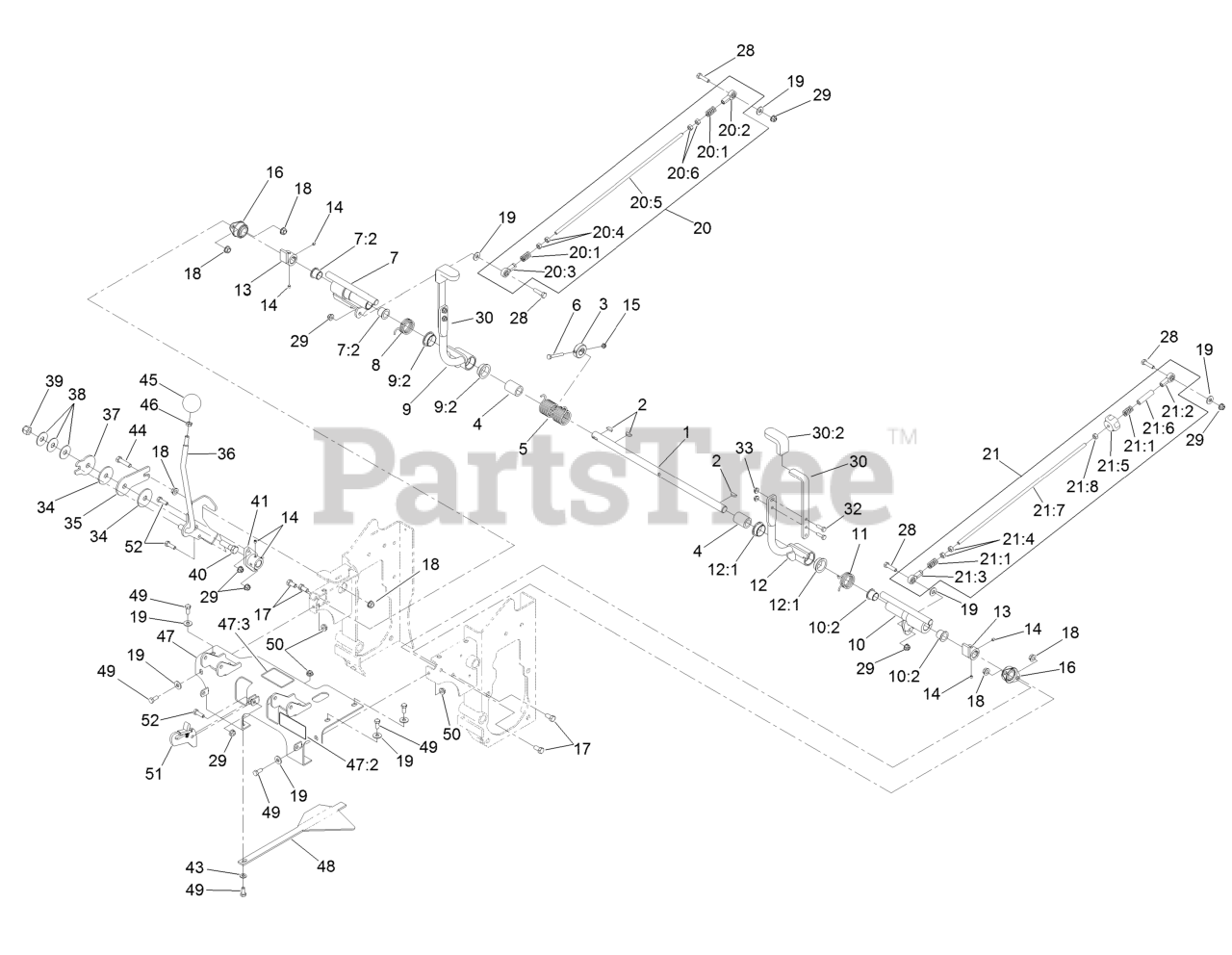

Speed Control Assembly Parts Diagram

  • Title

1

Exmark 116-7856

Shaft-Control, Speed

$125.99

$

Usually ships in 3-6 days

0

2

Exmark 3257-5

Key-Woodruff

$5.99

$

In Stock, only 1 left!

0

3

Exmark 116-7372

Stop-Hub, Center

$21.99

$

Usually ships in 3-6 days

0

4

Exmark 116-7414

Bushing-Plastic

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 116-8475

Spring-Torsion, Double

$18.99

$

In Stock, Qty 5

0

6

Exmark 321-11

Screw-HH

$0.99

$

In Stock, Qty 20+

0

7

Exmark 116-8444

RH Control Hub ASM

$214.99

$

Usually ships in 3-6 days

0

7:2

Exmark 103-4398

Bearing-Flange, Iglide

$11.99

$

Usually ships in 3-6 days

0

8

Exmark 116-7380

Spring-Torsion, RH

$11.99

$

Usually ships in 3-6 days

0

9

Exmark 126-7461

RH Steering Handle ASM

$160.99

$

Usually ships in 3-6 days

0

9:2

Exmark 116-7422

Bearing-Flange, Iglide

$8.49

$

Usually ships in 3-6 days

0

10

Exmark 116-7416

LH Control Hub ASM

$214.99

$

Usually ships in 3-6 days

0

10:2

Exmark 103-4398

Bearing-Flange, Iglide

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 116-7381

Spring-Torsion, LH

$11.99

$

Usually ships in 3-6 days

0

12

Exmark 126-7463

LH Steering Handle ASM

$160.99

$

Usually ships in 3-6 days

0

12:1

Exmark 116-7422

Bearing-Flange, Iglide

$8.49

$

Usually ships in 3-6 days

0

13

Exmark 103-4342

Hub-Speed Control

$47.99

$

Usually ships in 3-6 days

0

14

Exmark 108-0989

Screw-Set

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 3296-56

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

16

Exmark 1-633102

Bearing-Flange, Side

$18.99

$

In Stock, only 2 left!

0

17

Exmark 323-4

Screw-HH

$3.99

$

In Stock, only 1 left!

0

18

Exmark 3290-357

Nut-HHF, Whiz

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3256-3

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

20

Exmark 116-9667

RH Pump Linkage ASM

$84.99

$

Usually ships in 3-6 days

0

20:1

Exmark 1-323245

Spring-Compression

$6.49

$

In Stock, only 2 left!

0

20:2

Exmark 1-543017

Balljoint-RH

$20.99

$

In Stock, only 4 left!

0

20:3

Exmark 1-633152

Balljoint-LH

$20.99

$

In Stock, only 3 left!

0

20:4

Exmark 1-804524

Nut

$2.99

$

In Stock, only 2 left!

0

20:5

Exmark 116-7492

Rod-Linkage, Steering

$19.99

$

Usually ships in 3-6 days

0

20:6

Exmark 3219-2

Nut-Hex

$0.99

$

In Stock, Qty 11

0

21

Exmark 116-9668

LH Pump Linkage ASM

$100.99

$

Usually ships in 3-6 days

0

21:1

Exmark 1-323245

Spring-Compression

$6.49

$

In Stock, only 2 left!

0

21:2

Exmark 1-543017

Balljoint-RH

$20.99

$

In Stock, only 4 left!

0

21:3

Exmark 1-633152

Balljoint-LH

$20.99

$

In Stock, only 3 left!

0

21:4

Exmark 1-804524

Nut

$2.99

$

In Stock, only 2 left!

0

21:5

Exmark 103-3060

Knob-Tracking

$6.99

$

In Stock, only 2 left!

0

21:6

Exmark 103-5945

Spacer

$13.99

$

Usually ships in 3-6 days

0

21:7

Exmark 116-7492

Rod-Linkage, Steering

$19.99

$

Usually ships in 3-6 days

0

21:8

Exmark 3219-2

Nut-Hex

$0.99

$

In Stock, Qty 11

0

28

Exmark 322-6

Screw-HH

$3.99

$

In Stock, Qty 20+

0

29

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 17

0

30

Exmark 116-9246

Handle ASM

$41.99

$

Usually ships in 3-6 days

0

30:2

Exmark 103-5994

Grip-Handle, Steering

$13.99

$

In Stock, only 3 left!

0

32

Exmark 321-5

Screw-HH

$0.99

$

In Stock, Qty 20+

0

33

Exmark 32128-33

Nut-HF

$0.99

$

In Stock, Qty 6

0

34

Exmark 103-5009

Disc-Friction

$12.99

$

Usually ships in 3-6 days

0

35

Exmark 116-7846

Plate-Friction, Speed Control

$11.99

$

Usually ships in 3-6 days

0

36

Exmark 116-7845

Lever-Speed Control

$79.99

$

Usually ships in 3-6 days

0

37

Exmark 116-7849

Plate-Friction, Speed Control

$8.99

$

Usually ships in 3-6 days

0

38

Exmark 103-5018

Washer-Disc, Spring

$12.99

$

Usually ships in 3-6 days

0

39

Exmark 3296-19

Nut-Hex

$1.49

$

In Stock, Qty 20+

0

40

Exmark 116-7848

Screw-HH

$2.99

$

Usually ships in 3-6 days

0

41

Exmark 116-7859

Hub-Control, Speed

$55.99

$

Usually ships in 3-6 days

0

43

Exmark 3256-23

Washer-Plain

$2.49

$

In Stock, Qty 20+

0

44

Exmark 323-8

Screw-HH

$1.49

$

In Stock, Qty 20+

0

45

Exmark 103-4397

Knob-Ball, Speed Control

$12.99

$

Usually ships in 3-6 days

0

46

Exmark 3218-3

Nut-Jam

$0.99

$

In Stock, Qty 10

0

47

Exmark 116-7384

Console ASM

$169.99

$

Usually ships in 3-6 days

0

47:2

Exmark 116-9049

Decal-Danger, Driveline

$5.99

$

Usually ships in 3-6 days

0

47:3

Exmark 116-8946

Decal-Motor, Wheel

$5.49

$

Usually ships in 3-6 days

0

48

Exmark 103-5993-03

Guide-Plenum

$74.99

$

Usually ships in 3-6 days

0

49

Exmark 322-3

Screw-HH

$0.99

$

In Stock, Qty 13

0

50

Exmark 32128-20

Nut-HF

$1.49

$

In Stock, Qty 20+

0

51

Exmark 103-8494

Hook

$58.99

$

Usually ships in 3-6 days

0

52

Exmark 322-5

Screw-HH

$0.99

$

In Stock, Qty 20+

0
