NVS730AKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler ECH730 EFI (SN: 402082300 - 404314158) (2018) Hopper Assembly No. 103-9457 Parts Diagram

48" Navigator Front Mount Mower, Kohler ECH730 EFI

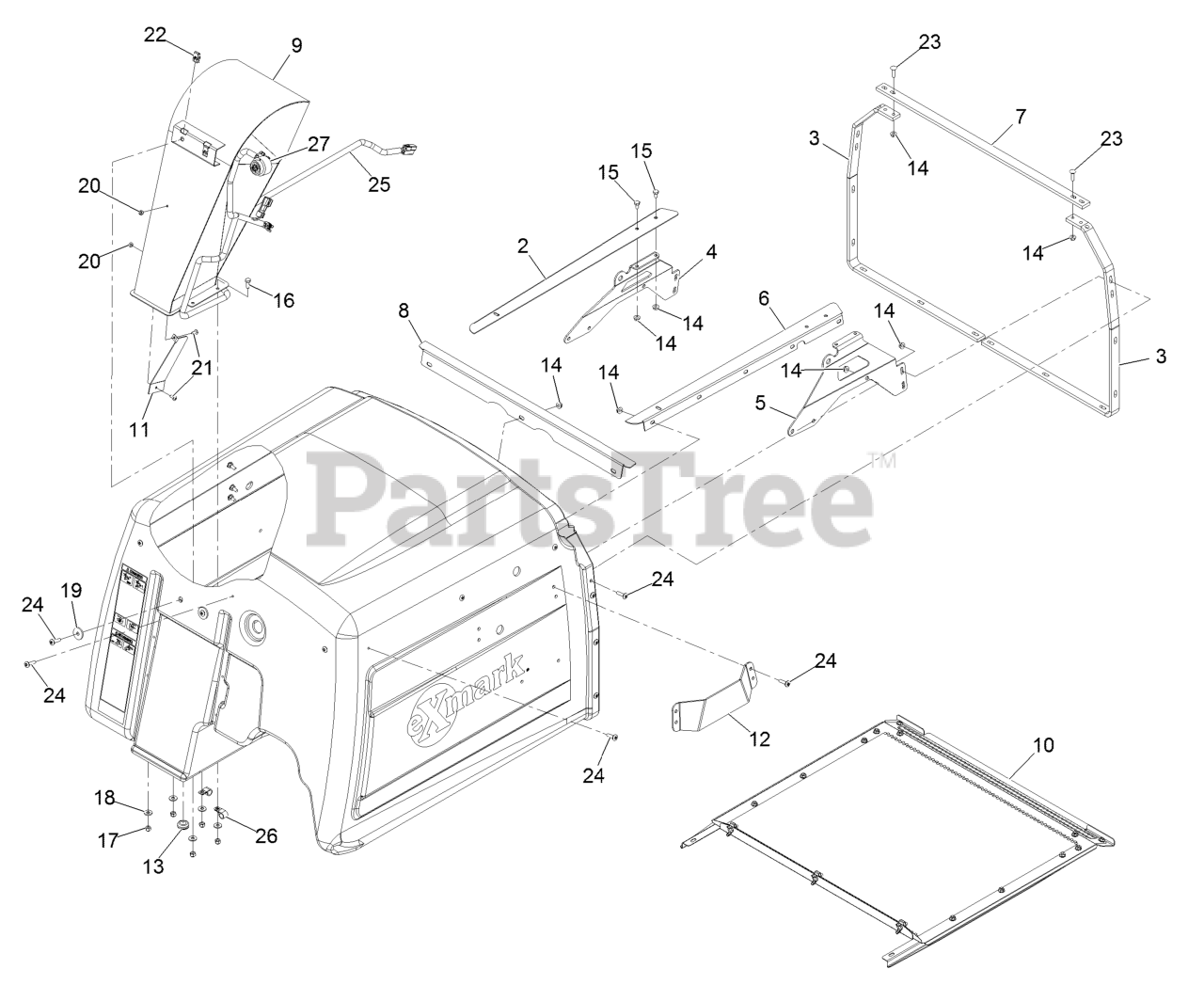

Hopper Assembly No. 103-9457 Parts Diagram

  • Title
2

Exmark 103-5736-03

Angle-Screen Track, RH

$43.99

$

Usually ships in 3-6 days

0

3

Exmark 103-5045-03

Reinforcement-Hopper

$75.99

$

Usually ships in 3-6 days

0

4

Exmark 103-5751-03

Brace-Door Pivot, RH

$74.99

$

Usually ships in 3-6 days

0

5

Exmark 103-5749-03

Brace-Door Pivot, LH

$74.99

$

Usually ships in 3-6 days

0

6

Exmark 103-5774-03

Angle-Screen Track, LH

$43.99

$

Usually ships in 3-6 days

0

7

Exmark 103-5772-03

Bracket-Frame Connect

$63.99

$

Usually ships in 3-6 days

0

8

Exmark 103-7035-03

Channel-Screen, Front

$29.99

$

Usually ships in 3-6 days

0

9

$383.99

$

In Stock, only 1 left!

0

10

Exmark 109-0717

Hopper Screen ASM

$441.99

$

Usually ships in 3-6 days

0

11

Exmark 103-8680

Deflector-Discharge Chute

$21.99

$

Usually ships in 3-6 days

0

12

Exmark 109-4019

Plate-Guard

$47.99

$

Usually ships in 3-6 days

0

13

Exmark 1-543296

Grommet

$8.49

$

In Stock, only 4 left!

0

14

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 6

0

15

Exmark 321-2

Screw-HH 1/4-20 X 1/2

$3.49

$

In Stock, only 3 left!

0

16

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 18

0

18

Exmark 3256-2

Washer-1/4 Std
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

19

$1.99

$

In Stock, Qty 5

0

20

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

21

Exmark 32122-30

Screw-Truss HD #10-24 X 1/2

$1.49

$

In Stock, Qty 20+

0

22

Exmark 107069

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

23

Exmark 3229-2

Bolt-Carriage 1/4-20 X 1

$3.49

$

In Stock, Qty 6

0

24

Exmark 32105-32

Screw-Truss HD 1/4-20 X 1

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 103-8800

Harness-Wire, Hopper

$77.99

$

Usually ships in 3-6 days

0

26

Exmark 1-513762

Clip-Loom 1/2

$7.99

$

In Stock, only 1 left!

0

27

Exmark 103-0205

Alarm-Tone, Dual

$67.99

$

In Stock, only 2 left!

0
