NVS730AKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler ECH730 EFI (SN: 402082300 - 404314158) (2018) Deck Support Frame Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler ECH730 EFI

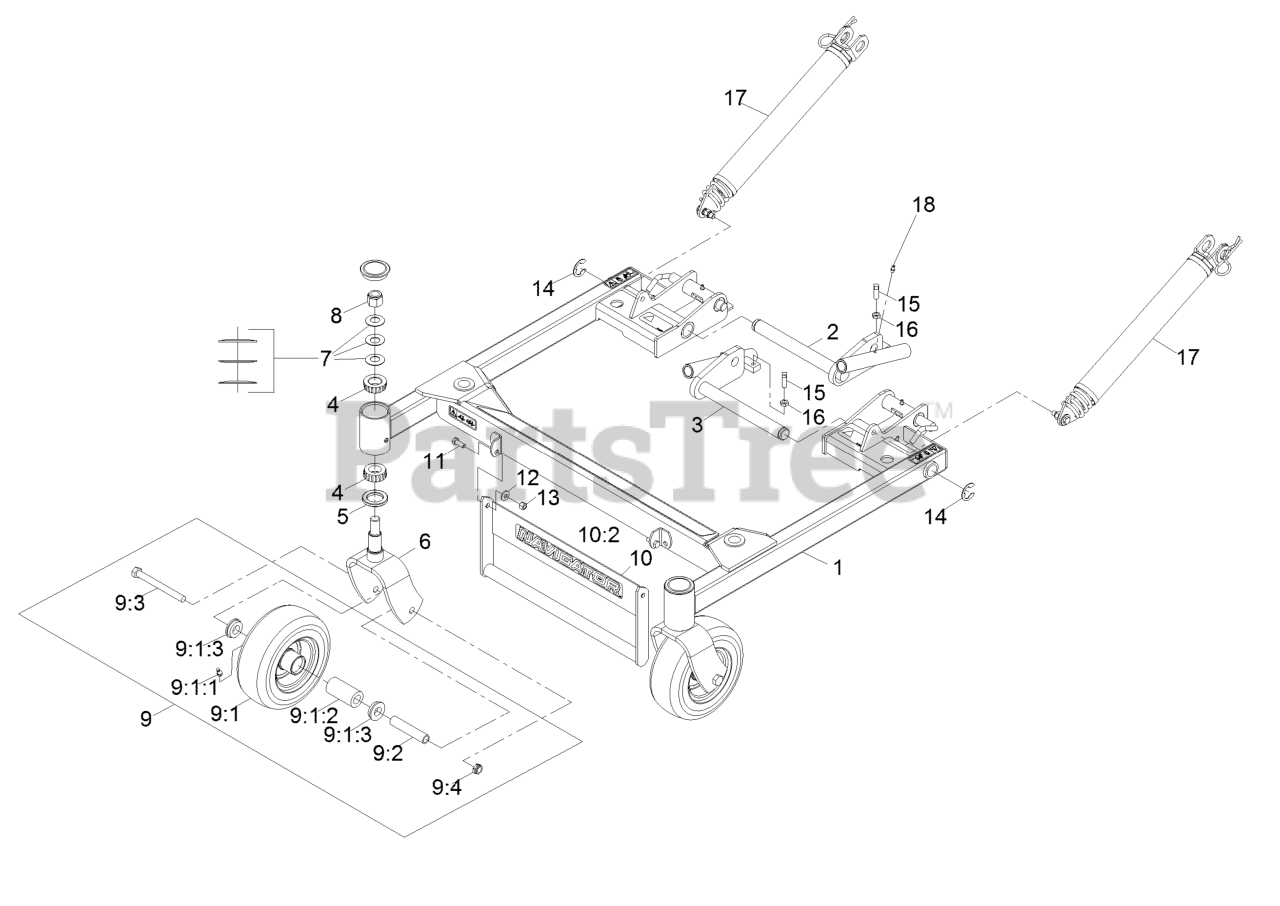

Deck Support Frame Assembly Parts Diagram

  • Title
1

Exmark 103-9480

Deck Support ASM
(Superseded to 142-2914)

$1016.99

$

Usually ships in 3-6 days

0

2

Exmark 103-3729-01

Pivot-Deck, RH

$272.99

$

Usually ships in 3-6 days

0

3

Exmark 103-3732-01

Pivot-Deck, LH

$272.99

$

Usually ships in 3-6 days

0

4

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

5

Exmark 1-543511

Seal-Grease

$12.99

$

In Stock, Qty 19

0

6

Exmark 109-1933-01

Fork-Caster

$180.99

$

Usually ships in 3-6 days

0

7

Exmark 1-633508

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

8

Exmark 3296-51

Nut-Nyloc 3/4-10

$6.49

$

In Stock, Qty 10

0

9

Exmark 103-9495

Asm, Caster Wheel W/Axle
(Superseded to 135-5966)

$139.99

$

In Stock, only 2 left!

0

9:1

Exmark 103-4324

Asm, Wheel And Tire 8X3.00-4 Sp
(Superseded to 135-5962)

$85.99

$

In Stock, only 2 left!

0

9:1:1

Exmark 302-61

Zerk-45deg 1/4-28

$11.99

$

In Stock, only 2 left!

0

9:1:2

Exmark 103-4588

Bearing-Roller, Straight

$35.99

$

Usually ships in 3-6 days

0

9:1:3

Exmark 1-513810

Bushing-Flanged

$5.99

$

In Stock, Qty 17

0

9:2

Exmark 109-2094

Spacer-Caster, Front

$17.99

$

Usually ships in 3-6 days

0

9:3

Exmark 325-19

Screw-HH 1/2-13 X 5

$8.49

$

In Stock, only 4 left!

0

9:4

Exmark 3296-45

Nut-Nyloc 1/2-13 Thin

$4.49

$

In Stock, Qty 20+

0

10

Exmark 103-9482

Asm, Deck Lift Handle W/Decal

$156.99

$

Usually ships in 3-6 days

0

10:2

Exmark 126-7199

Decal-Navigator Logo

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 322-4

Screw-HH 5/16-18 X 7/8

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, only 4 left!

0

13

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

14

Exmark 1-808519

Ring-Snap

$2.99

$

In Stock, only 4 left!

0

15

Exmark 3243-5

Setscrew-SQH 3/8-16 X 1

$2.99

$

In Stock, Qty 13

0

16

Exmark 3218-3

Nut-Jam 3/8-16

$0.99

$

In Stock, Qty 10

0

17

Exmark 116-7851

Lift Assist Spring ASM

$371.99

$

Usually ships in 3-6 days

0

18

Exmark 302-19

Zerk-1/4-28 Str

$2.49

$

In Stock, Qty 8

0
