NVS730AKC48000 - Exmark 48" Navigator Front Mount Mower, Kohler ECH730 EFI (SN: 316000000 - 399999999) (2016) Discharge Tube Assembly No. 103-9487 Parts Diagram

48" Navigator Front Mount Mower, Kohler ECH730 EFI

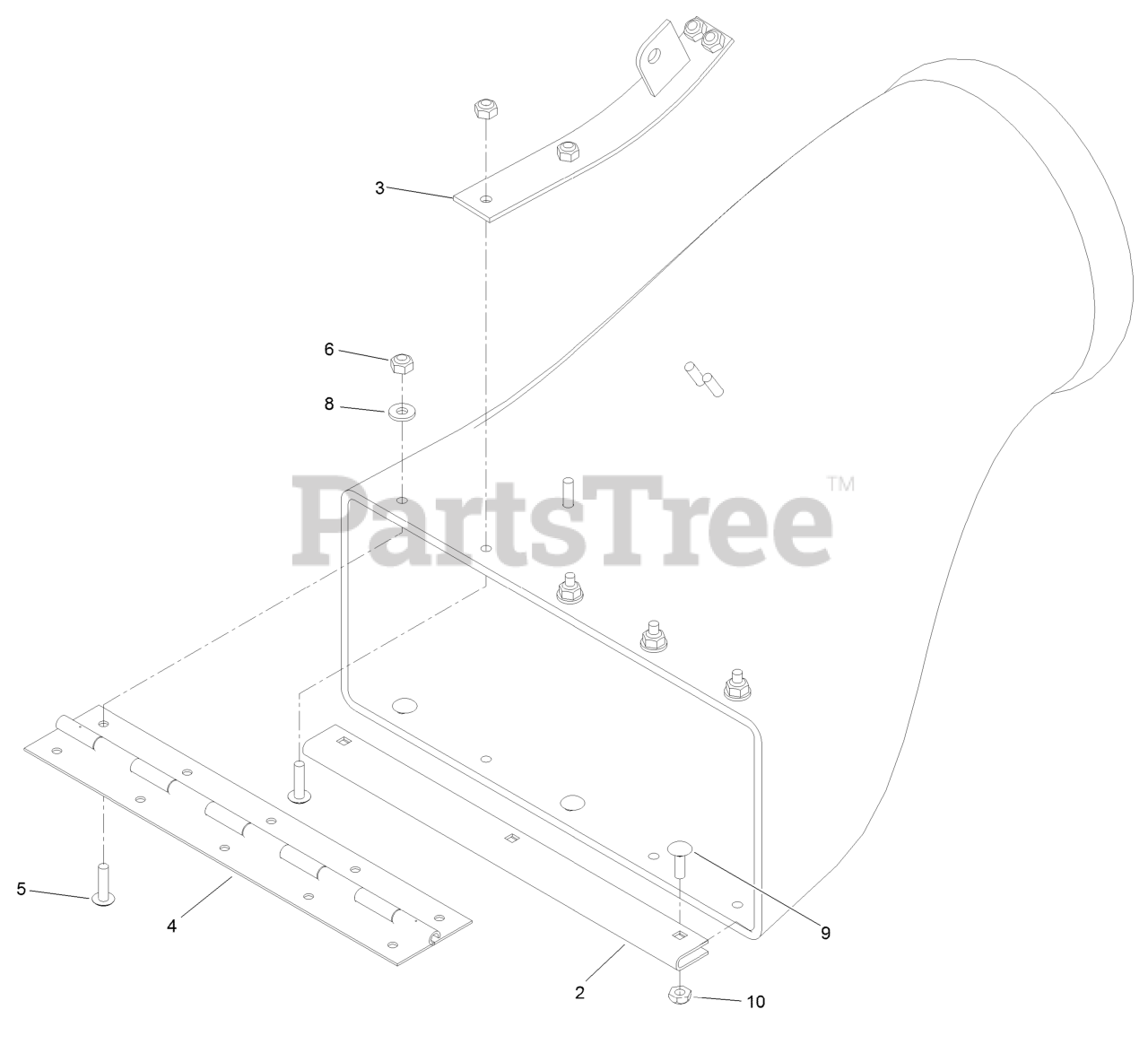

Discharge Tube Assembly No. 103-9487 Parts Diagram

  • Title
2

Exmark 109-2228-03

GUARD-PLENUM

$27.99

$

Usually ships in 3-6 days

0

3

Exmark 103-5868-01

MOUNT-SPRING

$41.99

$

Usually ships in 3-6 days

0

4

Exmark 103-4974

HINGE-PIANO
(Superseded to 139-4460)

$38.99

$

Usually ships in 3-6 days

0

5

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

6

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

10

Exmark 3296-12

NUT-LOCK, NI
(Superseded to 3296-12)

$1.49

$

In Stock, Qty 6

0
