NV730EKC48 - Exmark 48" Navigator Front Mount Mower, Kohler ECV730 EFI (SN: 313000000 - 313999999) (2013) Hopper Door Assembly No. 103-9456 Parts Diagram

48" Navigator Front Mount Mower, Kohler ECV730 EFI

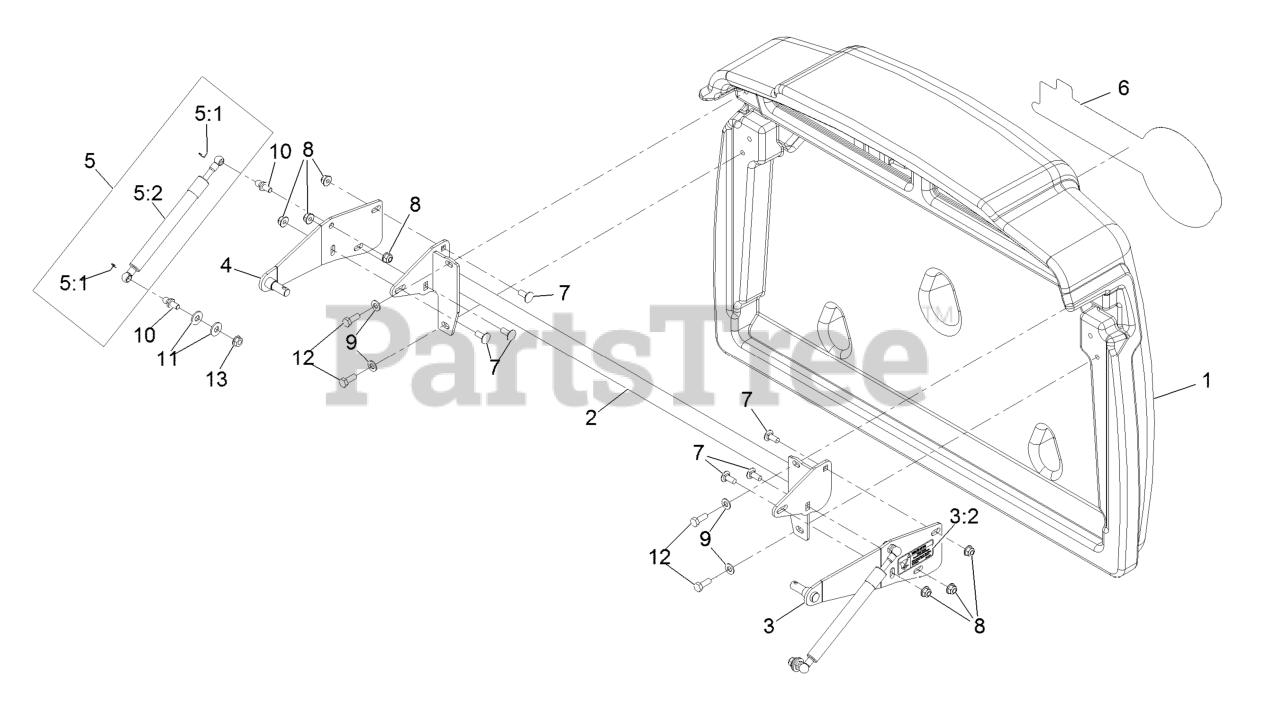

Hopper Door Assembly No. 103-9456 Parts Diagram

  • Title

1

Exmark 109-3955

DOOR,HOPPER

$592.99

$

Usually ships in 3-6 days

0

2

Exmark 109-4153-03

SUPPORT-DOOR

$153.99

$

Usually ships in 3-6 days

0

3

Exmark 109-4253

LH DOOR PIVOT ASM

$94.99

$

In Stock, only 1 left!

0

3:2

Exmark 103-8444

DECAL-PINCH POINT

$8.99

$

Usually ships in 3-6 days

0

4

Exmark 109-4254

RH DOOR PIVOT ASM

$94.99

$

In Stock, only 1 left!

0

5

Exmark 109-0715

DAMPER KIT

$80.99

$

Usually ships in 3-6 days

0

5:1

Exmark 103-8324

CLIP-RETAINER

$1.49

$

In Stock, Qty 8

0

5:2

Exmark 103-5746

SHOCK-GAS TENSION

$152.99

$

Usually ships in 3-6 days

0

6

Exmark 103-6024

DECAL,EXMARK LOGO

$86.99

$

Usually ships in 3-6 days

0

7

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Exmark 103-5752

STUD-BALL

$7.99

$

Usually ships in 3-6 days

0

11

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
