NV730EKC42 - Exmark 42" Navigator Front Mount Mower, Kohler ECV730 EFI (SN: 313000000 - 313999999) (2013) Hopper Screen Assembly No. 109-0717 Parts Diagram

42" Navigator Front Mount Mower, Kohler ECV730 EFI

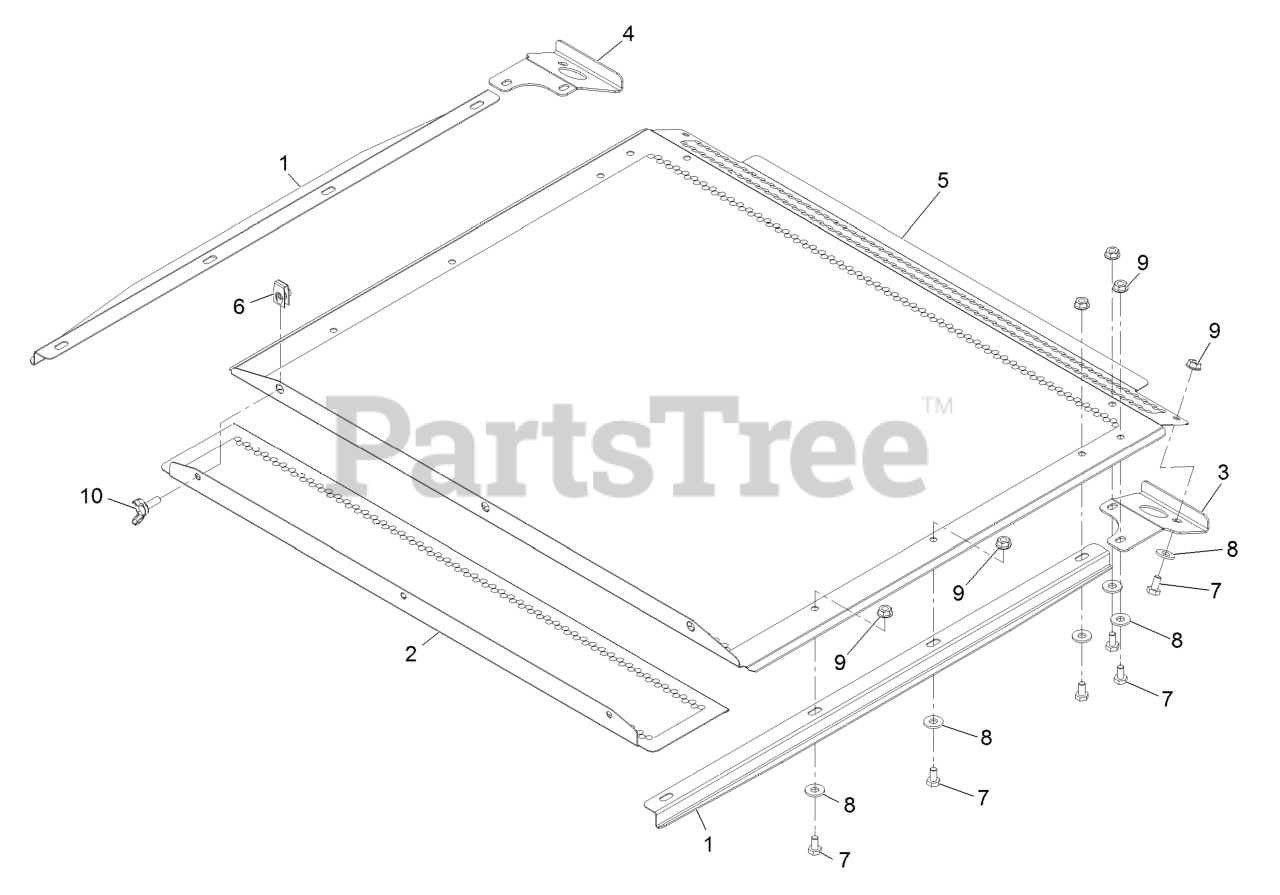

Hopper Screen Assembly No. 109-0717 Parts Diagram

  • Title
1

Exmark 103-8203-03

GUIDE-SCREEN

$29.99

$

Usually ships in 3-6 days

0

2

Exmark 103-7048-03

PANEL-SCREEN, REMOVABLE

$139.99

$

Usually ships in 3-6 days

0

3

Exmark 103-7098-03

HANDLE-SCREEN, LH

$28.99

$

Usually ships in 3-6 days

0

4

Exmark 103-7099-03

HANDLE-SCREEN, RH

$28.99

$

Usually ships in 3-6 days

0

5

Exmark 103-5745-03

PANEL-SCREEN, HOPPER

$367.99

$

Usually ships in 3-6 days

0

6

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

7

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

8

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

9

$0.99

$

In Stock, Qty 6

0

10

Exmark 109-1063

SCREW-WING

$5.49

$

Usually ships in 3-6 days

0
