NV730EKC - Exmark Navigator Front Mount Mower, Kohler ECV730 EFI (SN: 312000000 - 312999999) (2012) Seat, Tires and Consoles Assembly Parts Diagram

Navigator Front Mount Mower, Kohler ECV730 EFI

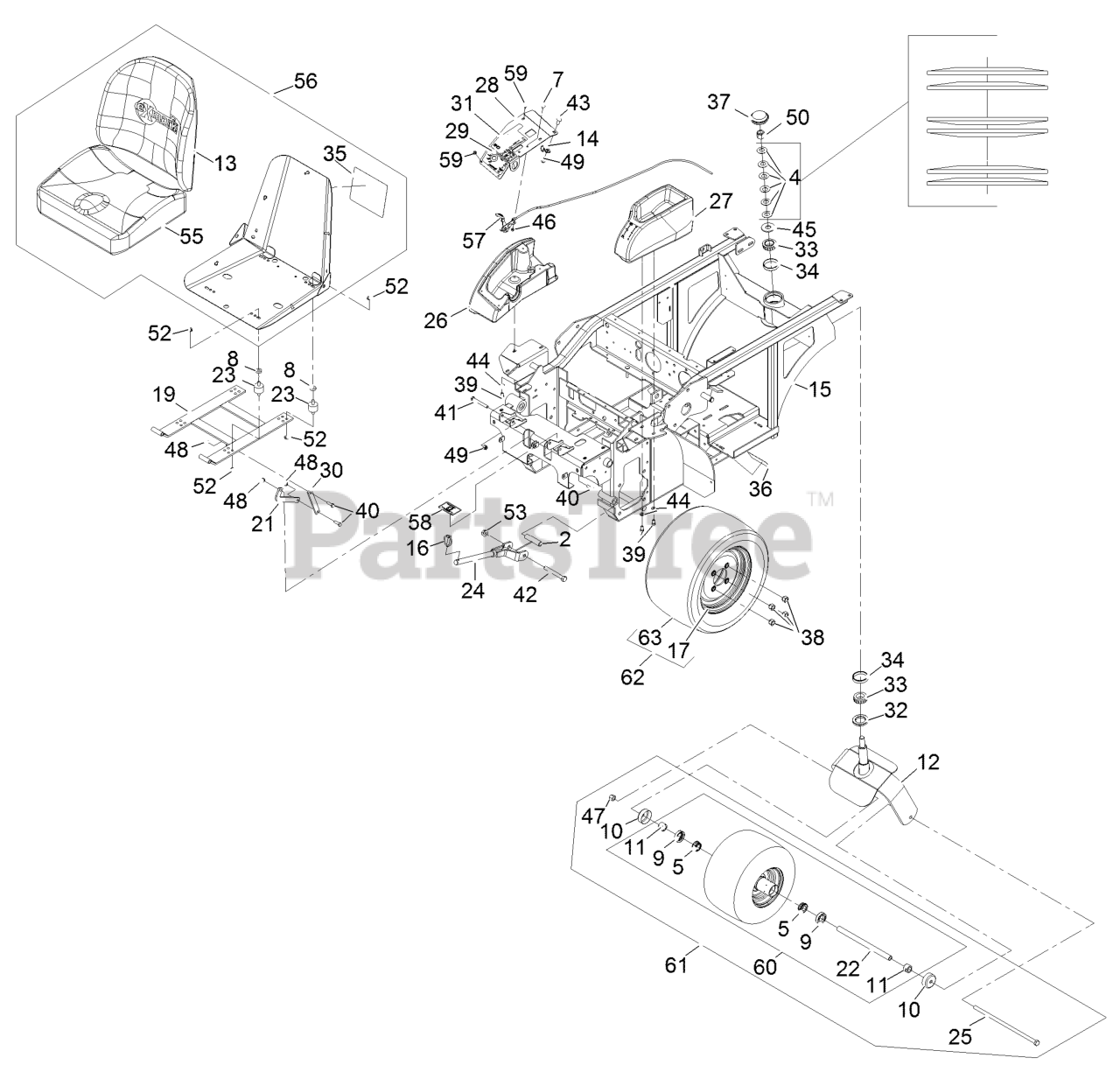

Seat, Tires and Consoles Assembly Parts Diagram

  • Title

2

Exmark 1-633060

SPACER-WHEEL, SHORT

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

5

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

7

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

8

Exmark 5-0652

SPACER

$7.99

$

In Stock, Qty 5

0

9

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

10

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

11

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

12

Exmark 103-3351-03

FORK-REAR CASTER

$410.99

$

Usually ships in 3-6 days

0

13

Exmark 116-3738

CUSHION,SEAT BACK

$334.99

$

Usually ships in 3-6 days

0

14

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 116-4850

ASM-FRAME W/DECALS AND BU

$4173.99

$

Usually ships in 3-6 days

0

16

Exmark 103-4155

PIN-LYNCH

$6.49

$

Usually ships in 3-6 days

0

17

Exmark 103-4318

ASM,WHEEL

$

$

Not available

19

Exmark 103-4362-03

FRAME-SEAT

$170.99

$

Usually ships in 3-6 days

0

21

Exmark 103-5181

LINK-SEAT STOP, LOWER

$

$

Not available

22

Exmark 103-5302

126-5362
(Superseded to 126-5362)

$29.99

$

Usually ships in 3-6 days

0

23

Exmark 103-5496

MOUNT-VIBRATION, RUBBER

$26.99

$

Usually ships in 3-6 days

0

24

Exmark 103-6596-03

ROD-PUSH

$123.99

$

Usually ships in 3-6 days

0

25

Exmark 103-7738

SCREW-HH

$23.99

$

Usually ships in 3-6 days

0

26

Exmark 103-8143

116-9430
(Superseded to 116-9430)

$203.99

$

Usually ships in 3-6 days

0

27

Exmark 103-8146

126-4342
(Superseded to 126-4342)

$203.99

$

Usually ships in 3-6 days

0

28

Exmark 116-4859

ASM-INTRUMENT PANEL W/DEC

$

$

Not available

29

Exmark 116-4581

DECAL-INSTRUMENT PANEL EF

$

$

Not available

30

Exmark 103-8563

LINK-SEAT

$15.99

$

Usually ships in 3-6 days

0

31

Exmark 109-4638

DECAL,INSTRUMENT PANEL

$

$

Not available

32

Exmark 103-9027

SEAL-GREASE

$13.99

$

Usually ships in 3-6 days

0

33

Exmark 103-9028

BEARING-ROLLER, CONE TAPE

$29.99

$

In Stock, only 2 left!

0

34

Exmark 103-9029

CUP-TAPERED, ROLLER BEARI

$10.99

$

In Stock, Qty 7

0

35

Exmark 116-1175

DECAL-SERVICE AID

$25.99

$

Usually ships in 3-6 days

0

36

Exmark 103-9034

DECAL,CLUTCH ADJUSTMENT

$

$

Not available

37

Exmark 103-9057

CAP-GREASE
(Superseded to 126-9882)

$7.99

$

Usually ships in 3-6 days

0

38

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

39

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 15

0

40

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

42

Exmark 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

43

Exmark 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 10

0

44

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

45

Exmark 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 15

0

46

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

47

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

48

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

49

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

50

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

52

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

53

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

55

Exmark 116-4848

ASM-SEAT BOTTOM CUSHION

$316.99

$

Usually ships in 3-6 days

0

56

Exmark 116-4849

126-9643
(Superseded to 126-9643)

$534.99

$

Usually ships in 3-6 days

0

57

Exmark 109-4641

CABLE-THROTTLE

$38.99

$

In Stock, only 4 left!

0

58

Exmark 109-4273

DECAL,WHEEL MOTOR RELEASE

$

$

Not available

59

Exmark 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

60

Exmark 103-5305

ASM,WHEEL,TIRE & BRG SP

$464.99

$

Usually ships in 3-6 days

0

61

Exmark 103-9494

REAR CASTER WHEEL ASM

$498.99

$

Usually ships in 3-6 days

0

62

Exmark 103-4319

ASM,WHEEL & TIRE

$

$

Not available

62

Exmark 103-4321

ASM,WHEEL & TIRE

Note: Optional Equipment

$331.99

$

In Stock, only 1 left!

0

63

Exmark 105-1945

TIRE

$284.99

$

Usually ships in 3-6 days

0

63

Exmark 103-4320

95-2625
(Superseded to 95-2625)

Note: Optional Equipment

$112.99

$

Usually ships in 3-6 days

0
