NV730EKC - Exmark Navigator Front Mount Mower, Kohler ECV730 EFI (SN: 312000000 - 312999999) (2012) Engine Assembly Parts Diagram

Navigator Front Mount Mower, Kohler ECV730 EFI

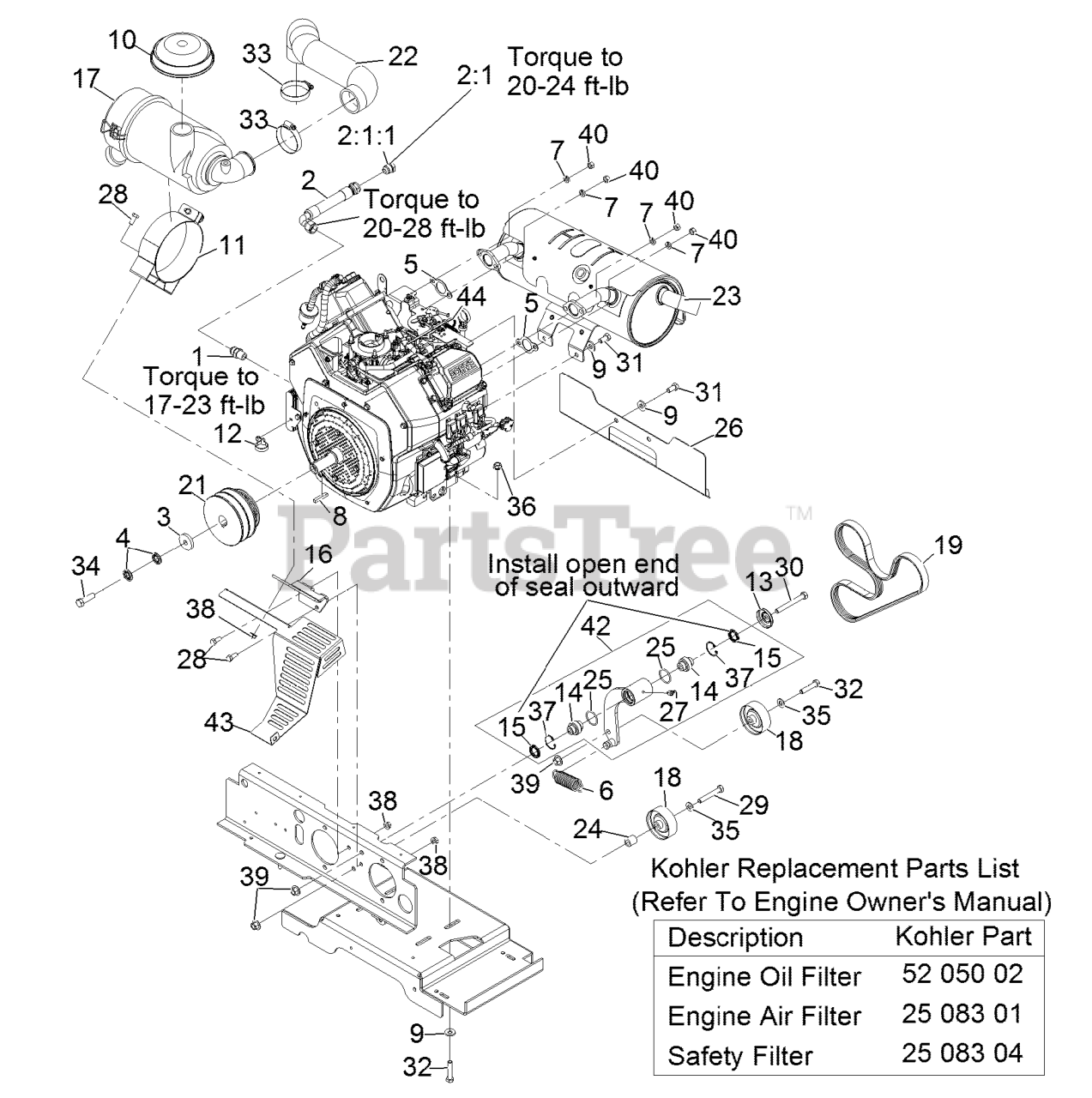

Engine Assembly Parts Diagram

  • Title

1

Exmark 116-1455

FITTING-STRAIGHT

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$6.99

$

Usually ships in 3-6 days

0

2

Exmark 116-5338

OIL DRAIN HOSE ASM

$60.99

$

Usually ships in 3-6 days

0

2:1

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

2:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

3

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

4

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 10

0

5

Exmark 1-653291

110-6697
(Superseded to 110-6697)

$

$

Not available

6

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

7

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

8

Exmark 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 11

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 100-2436

HOOD-CLEANER, 2" AIR INTA

$67.99

$

Usually ships in 3-6 days

0

11

Exmark 103-1058

BRACKET-FILTER, AIR

$109.99

$

Usually ships in 3-6 days

0

12

Exmark 109-7896

Tie-Cable

$

$

Currently unavailable

13

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

14

Exmark 103-3504

BEARING-SPHERICAL

$23.99

$

In Stock, Qty 20+

0

15

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

16

Exmark 103-3695-03

BRACKET-FILTER, AIR

$31.99

$

Usually ships in 3-6 days

0

17

Exmark 103-8569

AIR CLEANER CANISTER ASM

$352.99

$

Usually ships in 3-6 days

0

18

Exmark 116-6361

PULLEY

$61.99

$

In Stock, only 2 left!

0

19

Exmark 103-4244

BELT-V
(Superseded to 103-4244-SL)

$45.99

$

In Stock, Qty 11

0

21

Exmark 103-6731

109-0942
(Superseded to 109-0942)

$213.99

$

Usually ships in 3-6 days

0

22

Exmark 116-4016

HOSE-EFI AIR INTAKE

$87.99

$

Usually ships in 3-6 days

0

23

Exmark 116-3961

MUFFLER
(Superseded to 142-7225)

$211.99

$

Usually ships in 3-6 days

0

24

Exmark 106-5574

SPACER-MOUNTING, STEERING

$12.99

$

Usually ships in 3-6 days

0

25

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

26

Exmark 109-0181-03

SHIELD-EXHAUST

$62.99

$

Usually ships in 3-6 days

0

27

Exmark 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 2 left!

0

28

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

30

Exmark 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

31

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

32

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Exmark 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

34

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.49

$

In Stock, only 1 left!

0

35

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

37

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

38

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

39

Exmark 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

40

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

42

Exmark 103-7349

IDLER ASM

$177.99

$

Usually ships in 3-6 days

0

43

Exmark 116-7272-03

SHIELD-HEAT

$45.99

$

Usually ships in 3-6 days

0

44

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
