Exmark NV640KC48 - Exmark 48" Navigator Front Mount Mower, Kohler CH640 (SN: 314000000 - 314999999) (2014) Main Frame Assembly Parts Lookup with Diagrams

1

Exmark 116-7482

FRAME ASM

$2474.99

$

Usually ships in 3-6 days

2

Exmark 116-7396-03

PLATE-SUPPORT

$47.99

$

Usually ships in 3-6 days

3

Exmark 109-0925-03

BUMPER-REAR

$288.99

$

Usually ships in 3-6 days

4

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 13

5

Exmark 103-5408

ROLLER-BUMPER

$22.99

$

Usually ships in 3-6 days

6

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

7

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

8

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

9

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

10

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

11

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

12

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

13

Exmark 3231-31

SCREW-CARR

$7.49

$

In Stock, Qty 20+

14

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

15

Exmark 103-8333

GUIDE-BELT

$11.99

$

Usually ships in 3-6 days

16

Exmark 103-8349

GUIDE-BELT

$10.99

$

Usually ships in 3-6 days

17

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

18

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

19

Exmark 1-633060

SPACER-WHEEL, SHORT

$14.99

$

Usually ships in 3-6 days

20

Exmark 103-6596-03

ROD-PUSH

$123.99

$

Usually ships in 3-6 days

21

Exmark 103-9475

130-2879

(Superseded to 130-2879) 

$95.99

$

Usually ships in 3-6 days

22

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

23

Exmark 103-4155

PIN-LYNCH

$6.49

$

Usually ships in 3-6 days

24

Exmark 103-9476

LIFT SHIELD ASM

$101.99

$

Usually ships in 3-6 days

24:1

Asm,Shield Lift

Note: Not serviced separately

$

Not available 

24:1:1

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

24:2

Exmark 98-4361

DECAL-WARNING

$28.99

$

In Stock, only 1 left!

25

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

26

Exmark 109-5874-03

BRACE-PTO

$50.99

$

Usually ships in 3-6 days

27

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

28

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

30

Exmark 103-9494

REAR CASTER WHEEL ASM

$498.99

$

In Stock, only 1 left!

30:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

30:2

Exmark 103-7738

SCREW-HH

$23.99

$

Usually ships in 3-6 days

30:3

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

30:4

Exmark 103-5305

ASM,WHEEL,TIRE & BRG SP

$464.99

$

Usually ships in 3-6 days

30:4:2

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

30:4:3

Exmark 103-5302

126-5362

(Superseded to 126-5362) 

$29.99

$

Usually ships in 3-6 days

30:4:4

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

30:4:5

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

31

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

32

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

33

Exmark 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

34

Exmark 116-8323

GUIDE-BELT

(Superseded to 135-5784) 

$45.99

$

In Stock, only 1 left!

37

Exmark 103-3351-03

FORK-REAR CASTER

$410.99

$

Usually ships in 3-6 days

38

Exmark 103-9027

SEAL-GREASE

$13.99

$

Usually ships in 3-6 days

39

Exmark 103-9028

BEARING-ROLLER, CONE TAPE

$29.99

$

In Stock, only 2 left!

40

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

41

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

42

Exmark 103-9057

CAP-GREASE

(Superseded to 126-9882) 

$7.99

$

Usually ships in 3-6 days

43

Exmark 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 15

44

Exmark 103-9029

CUP-TAPERED, ROLLER BEARI

$10.99

$

In Stock, Qty 7

45

Exmark 116-7272-03

SHIELD-HEAT

$47.99

$

Usually ships in 3-6 days

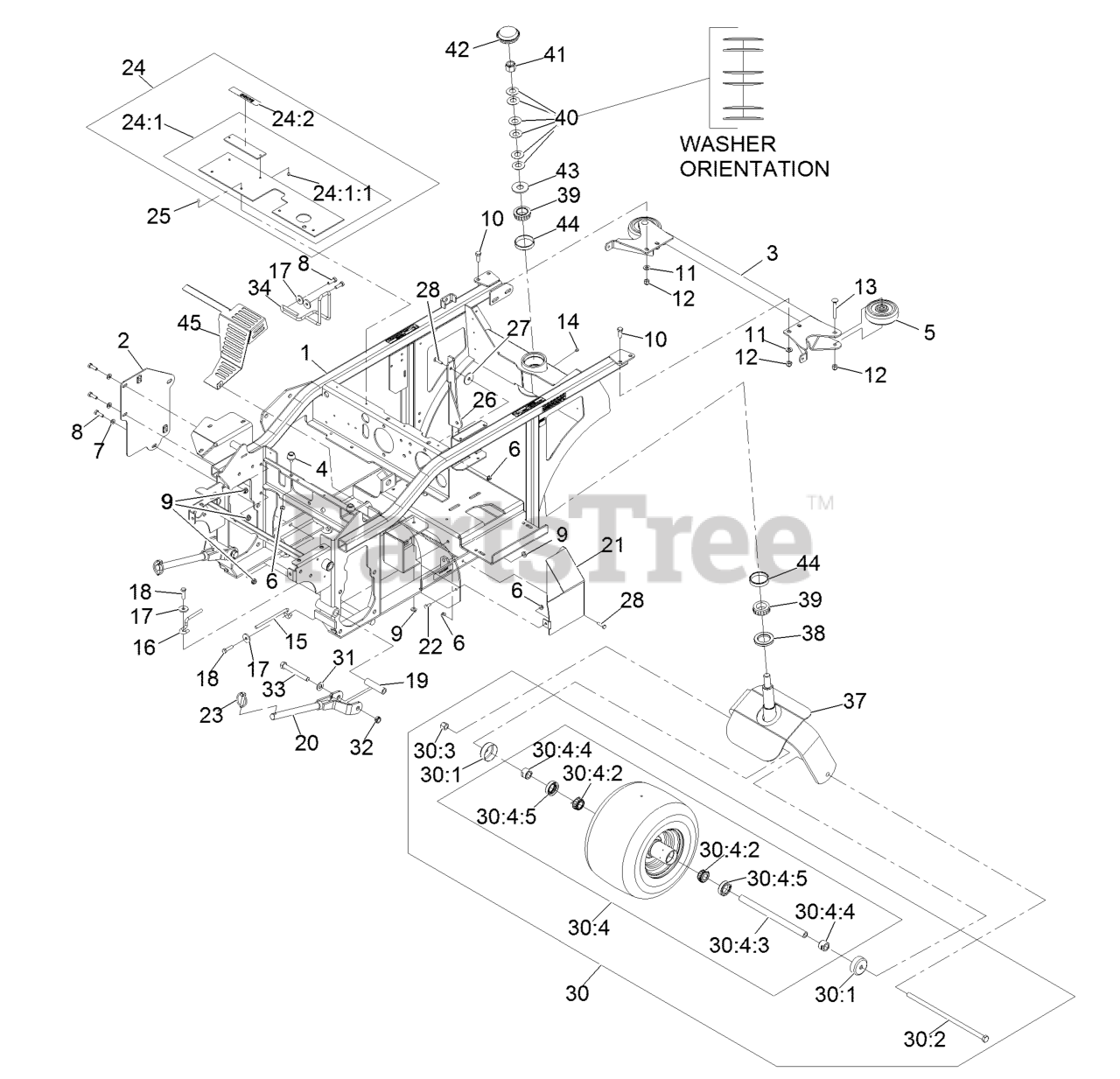

NV640KC48 - Exmark 48" Navigator Front Mount Mower, Kohler CH640 (SN: 314000000 - 314999999) (2014) Main Frame Assembly Parts Diagram

Main Frame Assembly Parts Diagram
