NV640KC48 - Exmark 48" Navigator Front Mount Mower, Kohler CH640 (SN: 314000000 - 314999999) (2014) Hopper Assembly No. 103-9457 Parts Diagram

48" Navigator Front Mount Mower, Kohler CH640

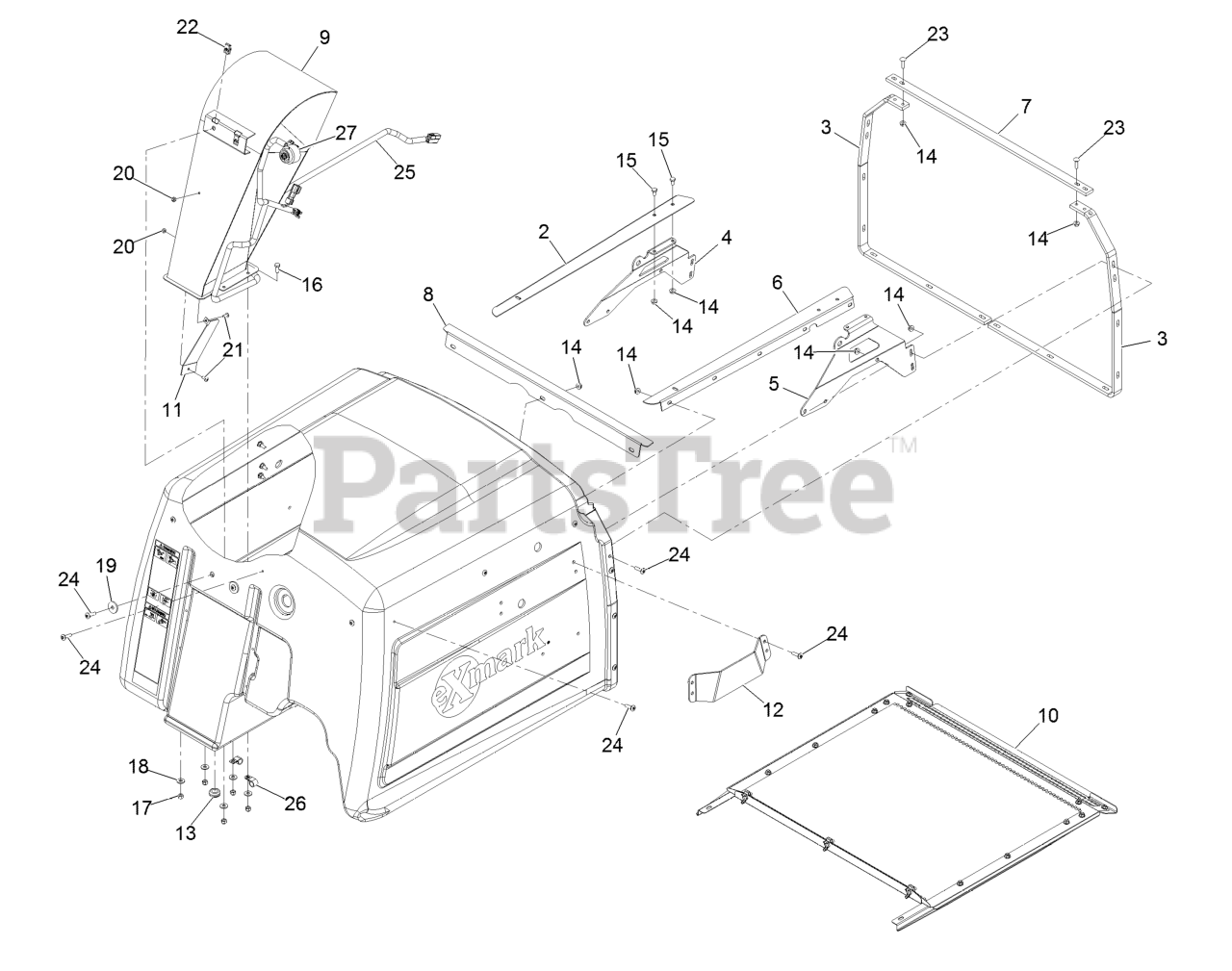

Hopper Assembly No. 103-9457 Parts Diagram

  • Title
2

Exmark 103-5736-03

ANGLE-SCREEN TRACK, RH

$43.99

$

Usually ships in 3-6 days

0

3

Exmark 103-5045-03

REINFORCEMENT-HOPPER

$75.99

$

Usually ships in 3-6 days

0

4

Exmark 103-5751-03

BRACE-DOOR PIVOT, RH

$74.99

$

Usually ships in 3-6 days

0

5

Exmark 103-5749-03

BRACE-DOOR PIVOT, LH

$74.99

$

Usually ships in 3-6 days

0

6

Exmark 103-5774-03

ANGLE-SCREEN TRACK, LH

$43.99

$

Usually ships in 3-6 days

0

7

Exmark 103-5772-03

BRACKET-FRAME CONNECT

$63.99

$

Usually ships in 3-6 days

0

8

Exmark 103-7035-03

CHANNEL-SCREEN, FRONT

$29.99

$

Usually ships in 3-6 days

0

9

$383.99

$

In Stock, only 1 left!

0

10

Exmark 109-0717

HOPPER SCREEN ASM

$441.99

$

Usually ships in 3-6 days

0

11

Exmark 103-8680

DEFLECTOR-DISCHARGE CHUTE

$21.99

$

Usually ships in 3-6 days

0

12

Exmark 109-4019

PLATE-GUARD

$47.99

$

Usually ships in 3-6 days

0

13

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

14

$0.99

$

In Stock, Qty 20+

0

15

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

16

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

19

$1.99

$

In Stock, Qty 20+

0

20

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Exmark 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 17

0

22

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

23

Exmark 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 13

0

24

Exmark 32105-32

SCREW-TTH

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 103-8800

HARNESS-WIRE, HOPPER

$77.99

$

Usually ships in 3-6 days

0

26

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

27

Exmark 103-0205

ALARM-TONE, DUAL

$67.99

$

In Stock, only 2 left!

0
